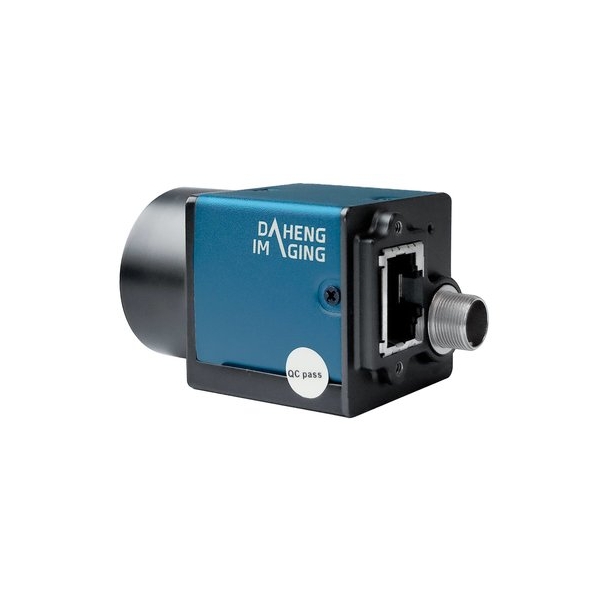

Ultra-small GigE industry digital camera

1/2.9", 75fps, 1440x1080, Mono, Global shutter, IMX273, GigE

Ultra-small GigE industry digital camera

The MERCURY2 GigE series (MER2-G) camera is DAHENG IMAGING’s new generation industrial digital camera. With improved built-in ISP algorithms, MER2-G series camera supports Decimation, Binning, Reverse, Digital Shift and more features. Providing multiple acquisition controls, the camera can adapt to various vision applications.

The MER2-160-75GM/C camera is a monochrome/color GigE Vision camera with the Sony IMX273 CMOS sensor. Thanks to the extremely compact (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MER2-160-75GM/C camera has opto-isolated I/Os. The GPIOs give MER2-G cameras maximum flexibility to adapt to specific needs.

The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Trigger mode: Frame Start /Frame Burst Start
  • Two exposure time modes: standard exposure time mode / minimal exposure time mode
  • Support Decimation, Binning, Reverse. Digital Shift, Black Level and Defect Pixel Correction
  • Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
  • Programmable LUTs and storable user sets
  • Support Timer and Counter
  • Adjustable packet-size and packet-delay, and reserved bandwidth
  • Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
  • 16KB data storage area for saving algorithm coefficients and parameter configuration
  • Compatible with GenICam™ and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON, MERLIC and LabVIEW directly
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision
Spectral Response Data:

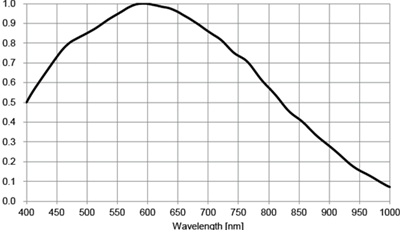

MER2-160-75GM Spectral Response

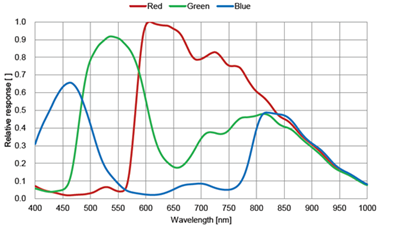

MER2-160-75GC Spectral Response

Resolution1440 (H) × 1080 (V)
Frame Rate75 fps
Sensor Type1/2.9", Global shutter, Sony IMX273 CMOS
Pixel Size3.45 μm × 3.45 μm
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceGigE Vision
Power Consumption<3W
Power Supply12~24V DC
Lens MountC Mount
Dimensions (L × W × H)29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C~+45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~80%
RegulationsRoHS, CE, GigE Vision, GenICam
