MER2-160-227U3C

Ultra-small USB 3.0 industrial digital camera

1/2.9", 227fps, 1440x1080, Color, Global shutter, IMX273, USB3.0

The MERCURY2 USB3.0 series (MER2-U3) camera is DAHENG IMAGING’s new generation area scan industrial digital camera, featuring outstanding performance, compact design and extremely low noise. The MER2-160-227U3M/C camera is a monochrome/color USB3 Vision camera with the Sony IMX273 CMOS sensor. Thanks to the compact design (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MER2-160-227U3M/C camera has opto-isolated I/Os. The GPIOs give MER2-U3 cameras maximum flexibility to adapt to specific needs. The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • USB3.0 interface with 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Three acquisition controls: Continuous acquisition/ Software trigger acquisition/ External trigger acquisition
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Storable user sets
  • Support Digital Shift
  • Support Reverse X/Y (horizontal and vertical mirroring only for mono models)
  • Adjustable URB
  • Software reset function
  • Robust full metal housing and optional lockable devices
  • Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3 Vision
Spectral Response Data:

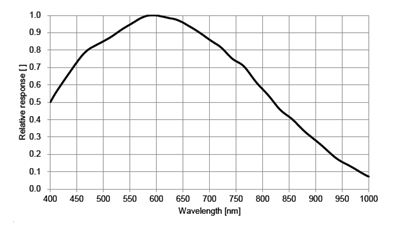

MER2-160-227U3M Spectral Response

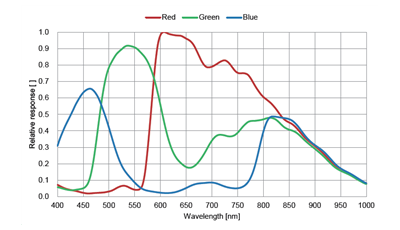

MER2-160-227U3C Spectral Response

SpecificationsMER2-160-227U3MMER2-160-227U3C
Resolution1440 (H) × 1080 (V)
Frame Rate227 fps
Sensor Type1/2.9", global shutter, Sony IMX273
Pixel Size3.45 μm × 3.45 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono10Bayer RG8/Bayer RG10
Data InterfaceUSB3.0
Power Consumption<2.7W @5V
Lens MountC Mount
Dimensions (L × W × H)29mm × 29mm × 29mm(without lens adapter or connectors)
Operating Temp.0°C~+45°C
Storage Temp.-20°C ~ +70°C
Operating Humidity10% ~80%
Weight65g
RegulationsRoHS, CE, USB3 Vision, GenICam
