MER-630-16GM

Ultra-small GigE industrial digital camera

1/1.8", 16fps, 3088x2064, Mono, Rolling shutter, IMX178, GigE

The MERCURY GigE series (MER-G) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design. The MER-630-16GM/C camera is a monochrome/color GigE Vision camera with the Sony IMX 178 CMOS sensor. Thanks to the extremely compact (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments. The MER-630-16GM/C camera has opto-isolated I/Os. The GPIOs give MER-G maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio. The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Compare
  • GigE interface with 12-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable packet-size and packet-delay, reserved bandwidth
  • Programmable LUTs
  • Storable user sets
  • Support Reverse X/Y(horizontal and vertical mirroring)
  • Robust full metal housings and optional lockable devices
  • Long cable lengths: up to 100m (without any hubs, repeaters etc.)
  • Compatible with GenICam™ and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, ARMv7, ARMv8, Mac OS etc.
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, FCC, GenICam, GigE Vision
Spectral Response Data:

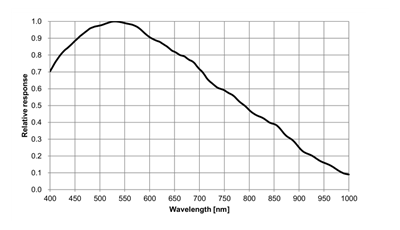

MER-630-16GM Spectral Response

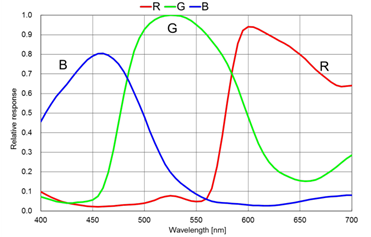

MER-630-16GC Spectral Response

SpecificationsMER-630-16GMMER-630-16GC
Resolution3088(H) × 2064(V)
Frame Rate16 fps @3088 × 2064
Sensor Type1/1.8" Sony IMX 178 rolling shutter CCD
Pixel Size2.4 μm × 2.4 μm
SpectrumMonoColor
Pixel Data FormatsMono8/Mono12Bayer RG8/Bayer RG12
Data InterfaceFast Ethernet(100Mbit/s) or Gigabit Ethernet(1000Mbit/s)
Power Consumption<2W@12V DC
Lens MountC Mount

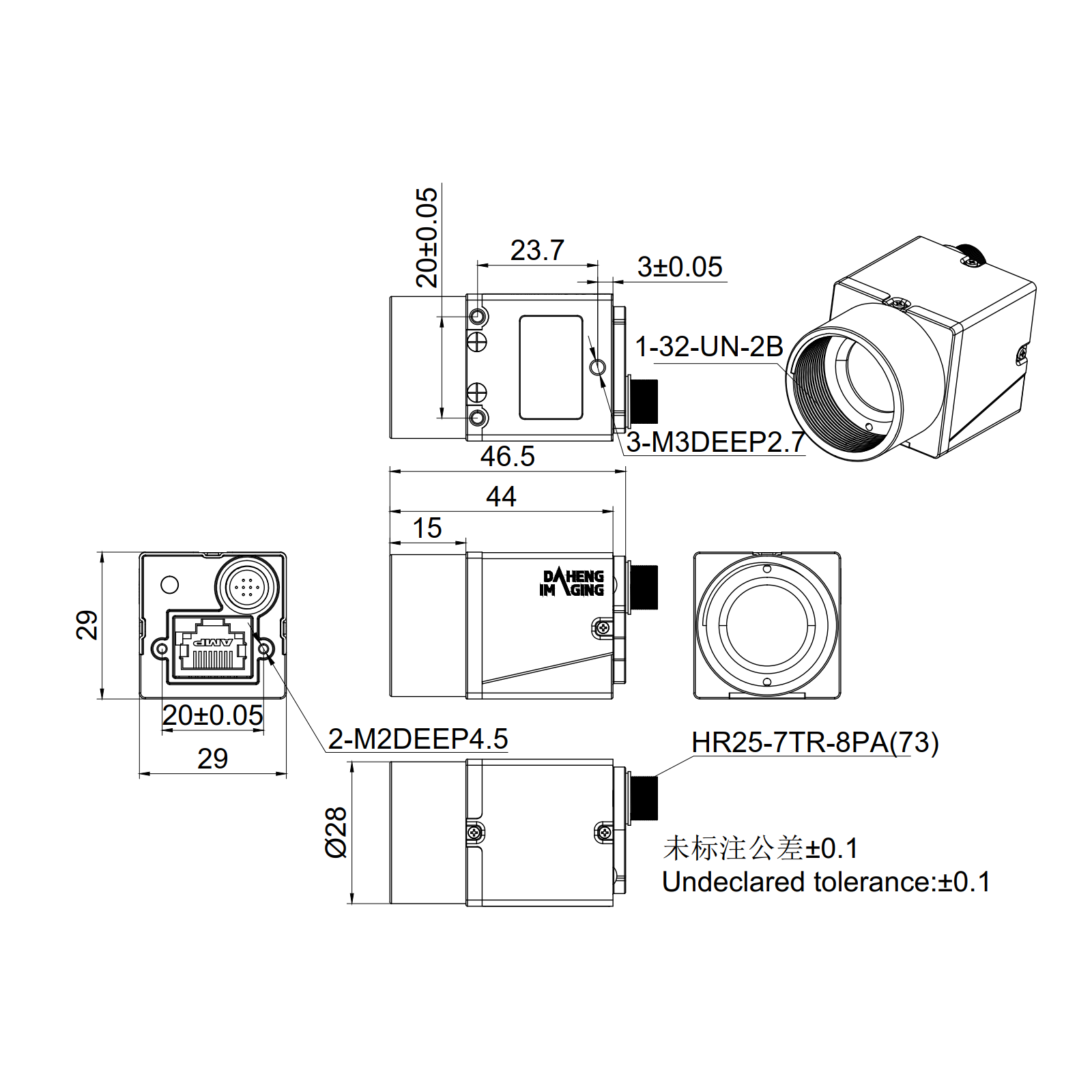

Dimensions (L × W × H)29mm × 29mm × 29 mm (without lens adapter or connectors)
Operating Temp.0°C~45°C
Operating Humidity10% ~80%
Weight60g
RegulationsRoHS, CE, FCC, GigE Vision, GenICam
