Ultra-small USB 3.0 industrial polarization camera

2/3", 79fps, 2448x2048, Mono, Global shutter, IMX250 Polarization, USB3.0

Ultra-small USB 3.0 industrial polarization camera

The MERCURY USB3.0 series (MER-U3) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise, and compact design. The MER-502-79U3M POL camera is a polarization camera with the Sony IMX250MZR CMOS sensor, and capture image of four different light directions simultaneously. Polarization camera can inspect reflective surface such as glass, metal which are difficult for monochrome or color camera. Thanks to the extremely compact, robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments. The MER-502-79U3M POL camera is powered over the USB interface. The MER-502-79U3M POL camera has opto-isolated I/Os. The GPIOs give MER-U3 maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio. The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

  • USB3.0 interface with 10-bit or 8-bit Mono output
  • Programmable ROI, increased frame rate with partial scan
  • Gain and exposure programmable
  • Support auto gain and auto exposure
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable URB
  • Software reset function
  • Storable user sets
  • Robust full metal housings and optional lockable devices
  • Hot plugging available
  • Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, support Linux, Android, ARMv7, ARMv8, etc.
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, FCC, GenICam, USB3 Vision

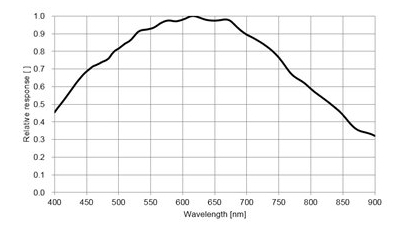

Spectral Response Data:

MER-502-79U3M POL Spectral Response

Specifications MER-502-79U3M POL
Resolution 2448(H) × 2048(V)
Frame Rate 79 fps @2448 × 2048
Sensor Type 2/3″ Sony IMX250MZR global shutter CMOS
Pixel Size 3.45 μm × 3.45 μm
Spectrum Polarization
Pixel Data Formats Mono8/Mono10
Data Interface USB3.0
Power Consumption <2.7W @5V
Lens Mount C Mount
Dimensions (L × W × H) 29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp. 0°C~45°C
Operating Humidity 10% ~80%
Weight 57g
Regulations RoHS, CE, FCC, USB3 Vision, GenICam
