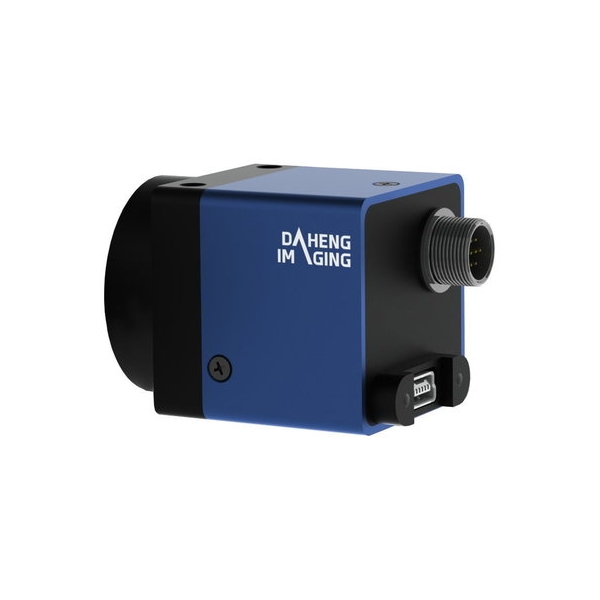

Ultra-small USB industrial digital camera

1/2.5", 7fps, 2592x1944, Mono, Rolling shutter, MT9P031, USB

Ultra-small USB industrial digital camera

The MERCURY USB2.0 series (MER-U) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design. The MER-500-7UM/C camera is a monochrome/color USB camera with the Onsemi MT9P031/MT9P006 CMOS sensor. Thanks to the extremely compact (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments. The MER-500-7UM/C camera is powered over the USB interface. The MER-500-7UM/C camera has opto-isolated I/Os. The I/Os give MER-U maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio. The MERCURY USB2.0 series camera is especially suitable for machine vision applications such as surface inspection, alignment, defect detection, measurement, OCR, bar code and data code reading and so on. They are also suitable for desktop applications, such as microscope and documents imaging.

  • Programmable ROI (region of interest), increased frame rate with partial scan
  • Gain and exposure programmable
  • White-balance control (only for color models)
  • Three acquisition controls: Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Programmable acquisition speed level, optimize multi-cameras work simultaneity
  • Built-in encryption circuitry
  • Robust full metal housings and optional lockable devices
  • Hot plugging available
  • Compatible with GenICam™, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam
Spectral Response Data:

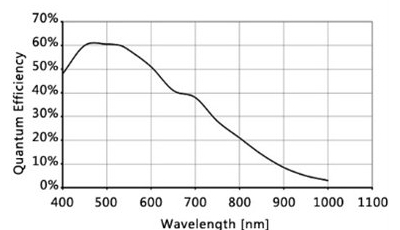

MER-500-7UM Spectral Response

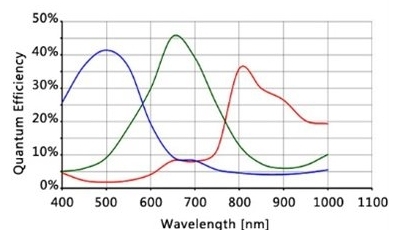

MER-500-7UC Spectral Response

Resolution2592(H) × 1944(V)
Frame Rate7 fps @2592 × 1944
Sensor Type1/2.5" Onsemi MT9P031/MT9P006 rolling shutter CMOS
Pixel Size2.2 μm × 2.2 μm
Pixel Data FormatsMono8/Mono12Bayer GR8/Bayer GR12
Data InterfaceUSB2.0
Power Consumption<1W
Lens MountC Mount
Dimensions (L × W × H)29mm × 29mm × 29mm (without lens adapter or connectors)
Operating Temp.0°C~60°C
Operating Humidity10% ~80%
RegulationsRoHS, CE
