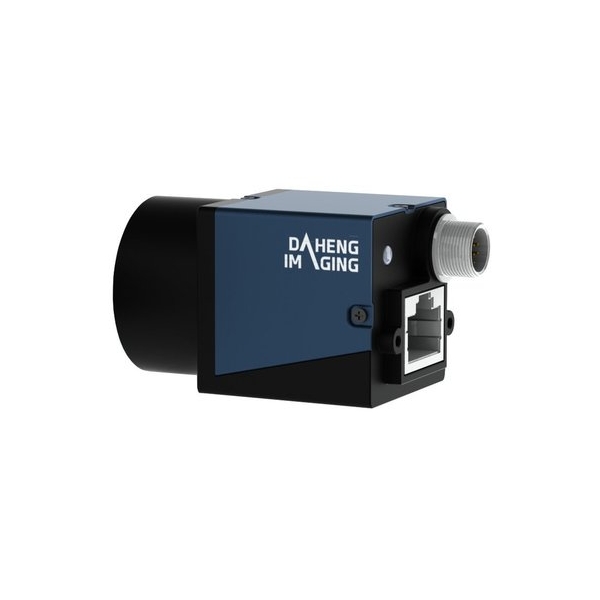

Ultra-small GigE industry digital camera

1/2.5", 14fps, 2592x1944, Color, Rolling shutter, MT9P031, GigE

Ultra-small GigE industry digital camera

The MERCURY GigE series (MER-G) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design. The MER-500-14GM/C camera is a monochrome/color GigE Vision camera with the ON MT9P031/MT9P006 CMOS sensor. Thanks to the extremely compact (29mm × 29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments. The MER-500-14GM/C camera has opto-isolated I/Os. The GPIOs give MER-G maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio. The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

  • GigE interface with 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models
  • Support defect pixel correction
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable packet-size and packet-delay, reserved bandwidth
  • Programmable LUTs
  • Storable user sets
  • Support reverse X/Y (horizontal and vertical mirroring only for mono models)
  • Robust full metal housing and optional lockable devices
  • Long cable lengths: up to 100m(without any hubs, repeaters etc.)
  • Compatible with GenICam™ and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, ARMv7, ARMv8, etc.
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, FCC, GenICam, GigE Vision
Spectral Response Data:

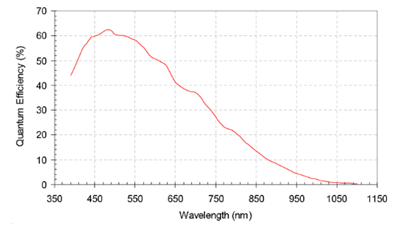

MER-500-14GM Spectral Response

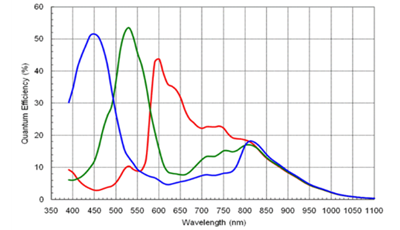

MER-500-14GC Spectral Response

Resolution2592(H) × 1944(V)
Frame Rate14 fps @2592 × 1944
Sensor Type1/2.5" Onsemi MT9P031/MT9P006 rolling shutter CMOS
Pixel Size2.2 μm × 2.2 μm
Pixel Data FormatsMono8/Mono10Bayer GR8/Bayer GR10
Data InterfaceFast Ethernet(100Mbit/s) or Gigabit Ethernet(1000Mbit/s)
Power Consumption<2W@12V DC
Lens MountC Mount
Dimensions (L × W × H)29mm × 29mm × 29 mm (without lens adapter or connectors)
Operating Temp.0°C~45°C
Operating Humidity10% ~80%
RegulationsRoHS, CE, FCC, GigE Vision, GenICam
