ME2P-2621-15U3M

Large sensor USB 3.0 industrial digital camera

1.1", 15fps, 5120x5120, Mono, Global shutter, GMAX0505, USB3.0

Large sensor USB 3.0 industrial digital camera

The MERCURY2 PRO USB3.0 series (ME2P-U3) camera is DAHENG IMAGING’s large sensor industrial digital camera, supporting Gamma, Color Enhancement, Reverse, Black Level, Flat Field Correction and more features to adapt to various vision applications, especially supporting Sharpness and Noise Reduction to improve the image quality.. ME2P-2621-15U3M/C is a monochrome/color USB3 Vision camera with the GMAX0505 CMOS sensor. The ME2P-2621-15U3M/C camera has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for ME2P-U3 cameras. Thanks to the extremely compact design (36mm × 31mm × 38.8mm) and the locking screw connectors, the MERCURY2 PRO series cameras can secure the reliability of cameras deployed in harsh environments. Featuring compact design, outstanding performance, ease of installation and use, the MERCURY2 PRO cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

SKU: ME2P-2621-15U3M Categories: , Tags: , , , , , ,
Compare
Add to quote
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Three acquisition controls: Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Support LUTs and storable user sets
  • Support Reverse, Black Level and Flat Field Correction
  • Support Color Enhancement for improving image quality (only for color models)
  • Adjustable Gamma for optimizing the brightness (only for color models)
  • Add Sharpness and Noise Reduction to optimize the edge definition and improve the quality of images (only for mono models)
  • 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on
  • Provide mounting holes on four surfaces for flexible installation
  • Compatible with GenICam™ and USB3 Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3 Vision

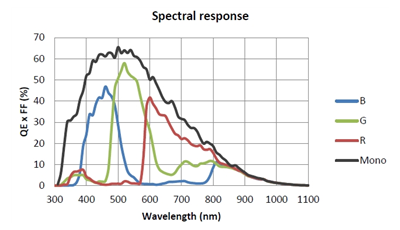

Spectral Response Data:


ME2P-2621-15U3M/C Spectral Response

Specifications ME2P-2621-15U3M ME2P-2621-15U3C
Resolution 5120(H) × 5120(V)
Frame Rate 15.1fps
Sensor Type 1.1″ GMAX0505 global shutter CMOS
Pixel Size 2.5 μm × 2.5 μm
Spectrum Mono Color
Pixel Data Formats Mono8/Mono12 Bayer GB8/Bayer GB12
SNR 36.15dB 36.18dB
Data Interface USB3.0
Power Consumption <2.5W@5V
Lens Mount C-Mount
Dimensions (L × W × H) 36mm × 31mm × 38.8mm (without lens adapter or connectors)
Operating Temp. 0°C~+45°C
Operating Humidity 10%~80%
Weight 66g
Regulations RoHS, CE, USB3 Vision, GenICam
