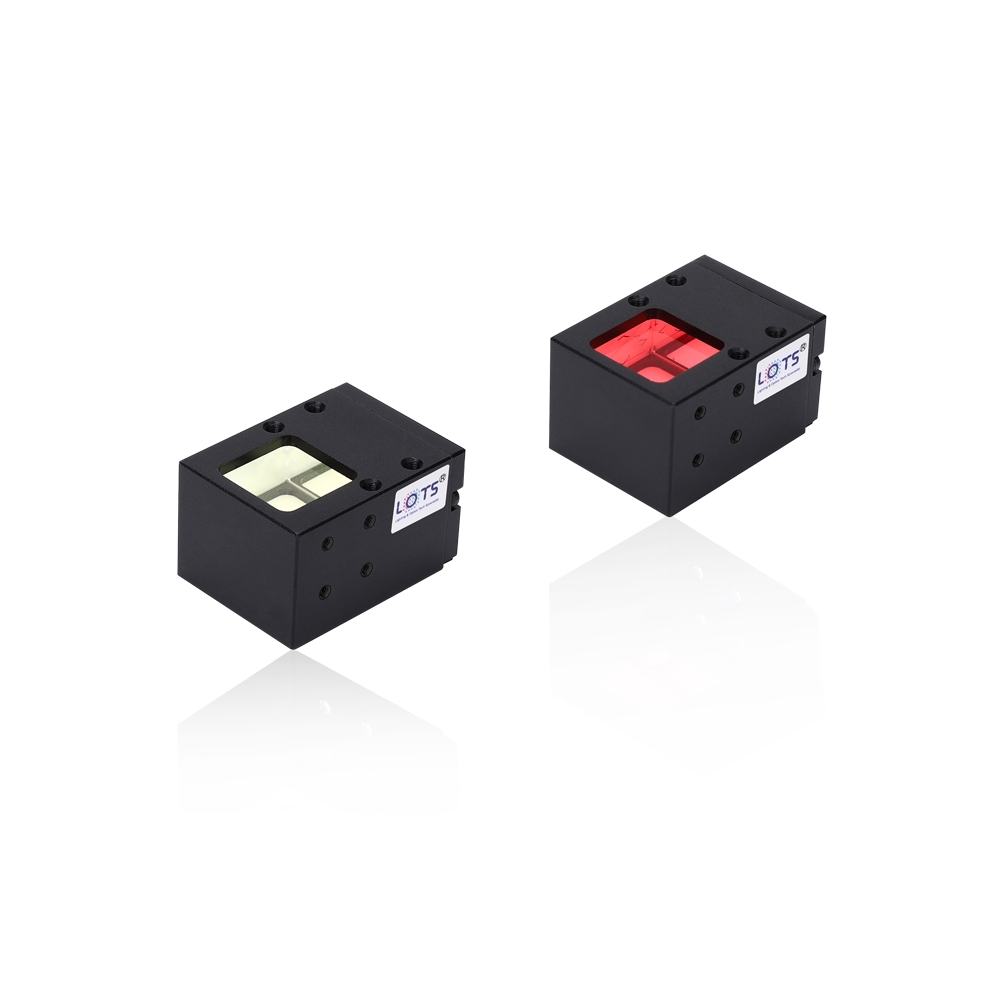

LTS-3COX28-CP-W

High Precision Coaxial Light Natural

L55.5xW40xH34 mm, 24V, 4.4W, WHITE

High Precision Coaxial Light Natural

Compact structure, suitable for limited space environment.

Features:
  • Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision
  • More suitable for tiny object inspection
  • Compact structure, suitable for limited space environment
SKU: LTS-3COX28-CP-W Categories: ,
Compare
Applications:
  • The damage inspection of the chip, wafer
  • The scratch of reflective surface
  • Bar code, QR code recognition
  • Printing, silk-screen inspection
Illumination property diagram (LTS-3COX18-CP-W/3COX20-W model) & Uniformity (Relative irradiance):
Effect contrast photograph
Imaging instance: edge inspection
Features of spectrometer
Advantages Disadvantages
Cube spectrometer Easy integration with 0 degree incident angle
No light ray displacement
The transmitted and reflected light have same length
Shorten the system optical path
Heavy and sturdy glass structure
Difficult to do big size, and the cost is higher
Flate plate spectrometer Lightweight
The cost is lower than cube spectrometer
Easy to do the big size
The transmitted and reflected light have different length
Transmitted light ray displacement
Need more time to aligning with 45 degree incident angle

Coding rules:

(Use the color circles below to get to the specific variant of the products)

Model Color Dimension Voltage Power
LTS-3COX13-CP-R/BGW / L32xW25xH19(mm) 24V 0.8W/2.2W
LTS-3COX18-CP-R/BGW / L41xW30xH24(mm) 24V 1.5W/1.5W
LTS-3COX28-CP-R/BGW / L55.5xW40xH34(mm) 24V 2.9W/4.4W
* UV & IR light can be customized as required.
