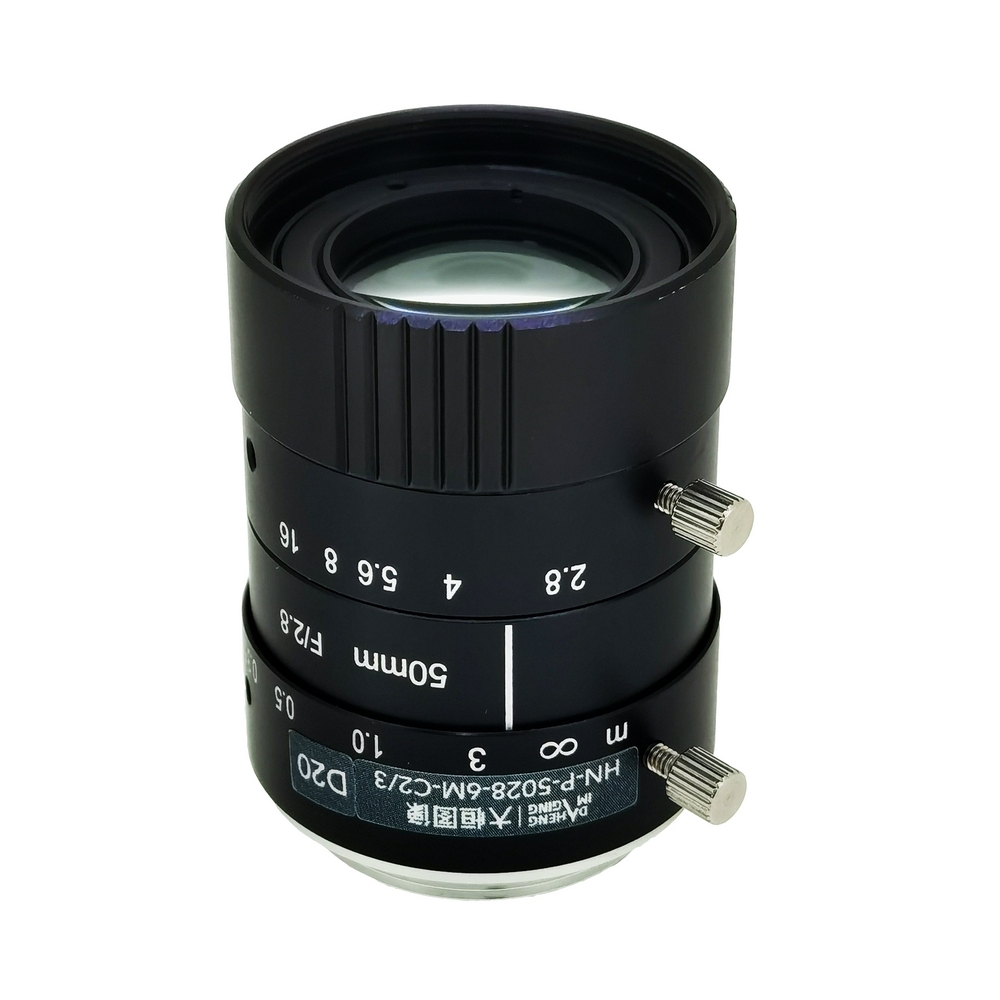

HN-P-5028-6M-C2/3

Ultra-Low Distortion Machine-Vision Lens

50mm, 6Mpix, 2/3", C-Mount

Ultra-Low Distortion Machine-Vision Lens

  • Designed for machine vision applications
  • 6 megapixels high resolution
  • Compact & Lightweight
  • Ultra-low optical distortion
  • Wide application
SKU: HN-P-5028-6M-C2/3 Categories: , Tags: , , ,
Compare

Model HN-P-5028-6M-C2/3
Sensor Size 2/3″
Pixel size (μm) 2.4
Focal Length (mm) 50±5%
Total Track Length (mm) 65±0.2
Flange distance (mm) 17.526±0.2
F/No. F2.8-F16
Angle of View (H×V) 9.60° × 7.24°(12.00°)
Distortion (%) Optical Distortion ±0.4
TV Distortion 0.13
Focus Range 0.25m-∞
Filter Thread /
Mount C-mount

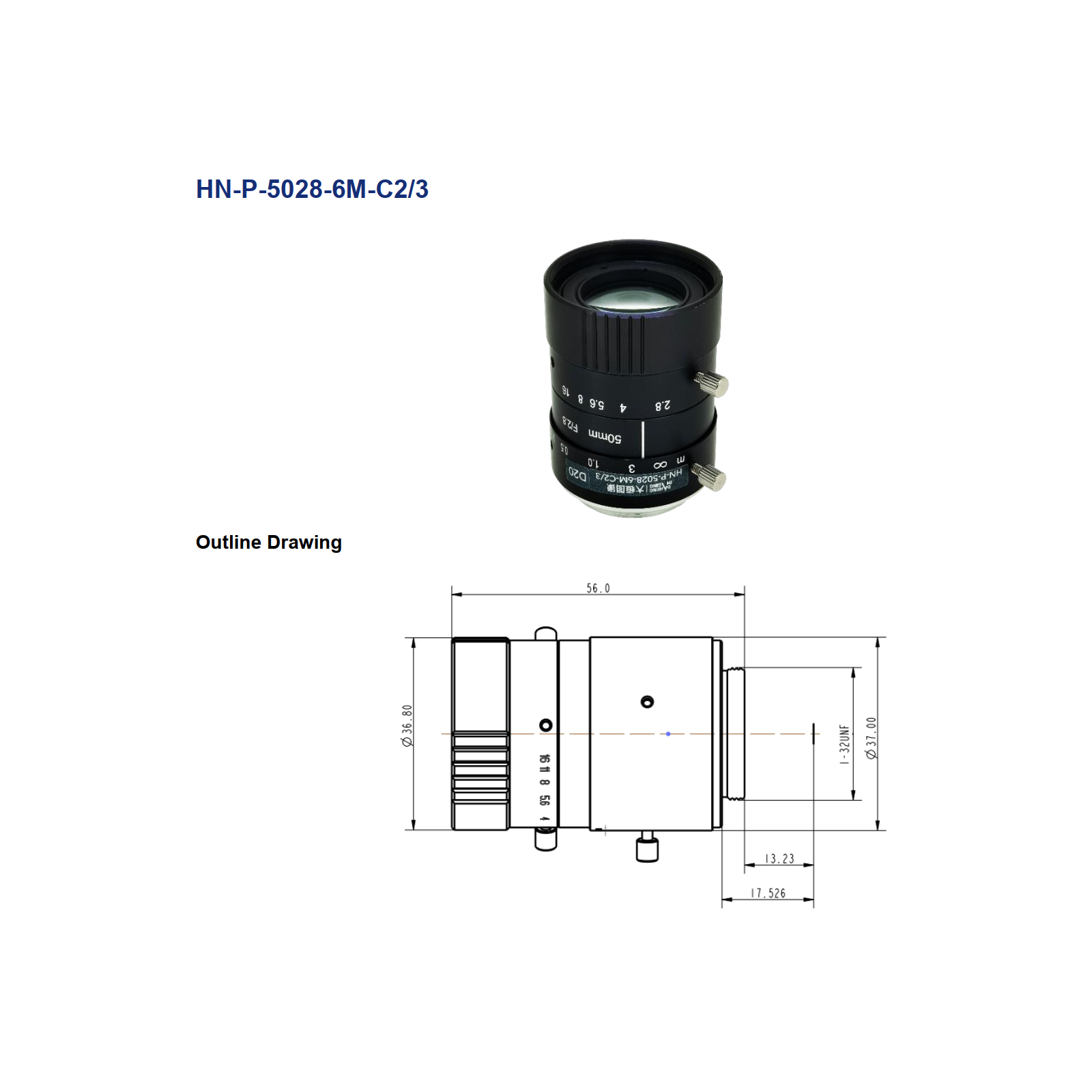

Dimensions (mm) Φ36.8 ×51.7(w/o thread)
