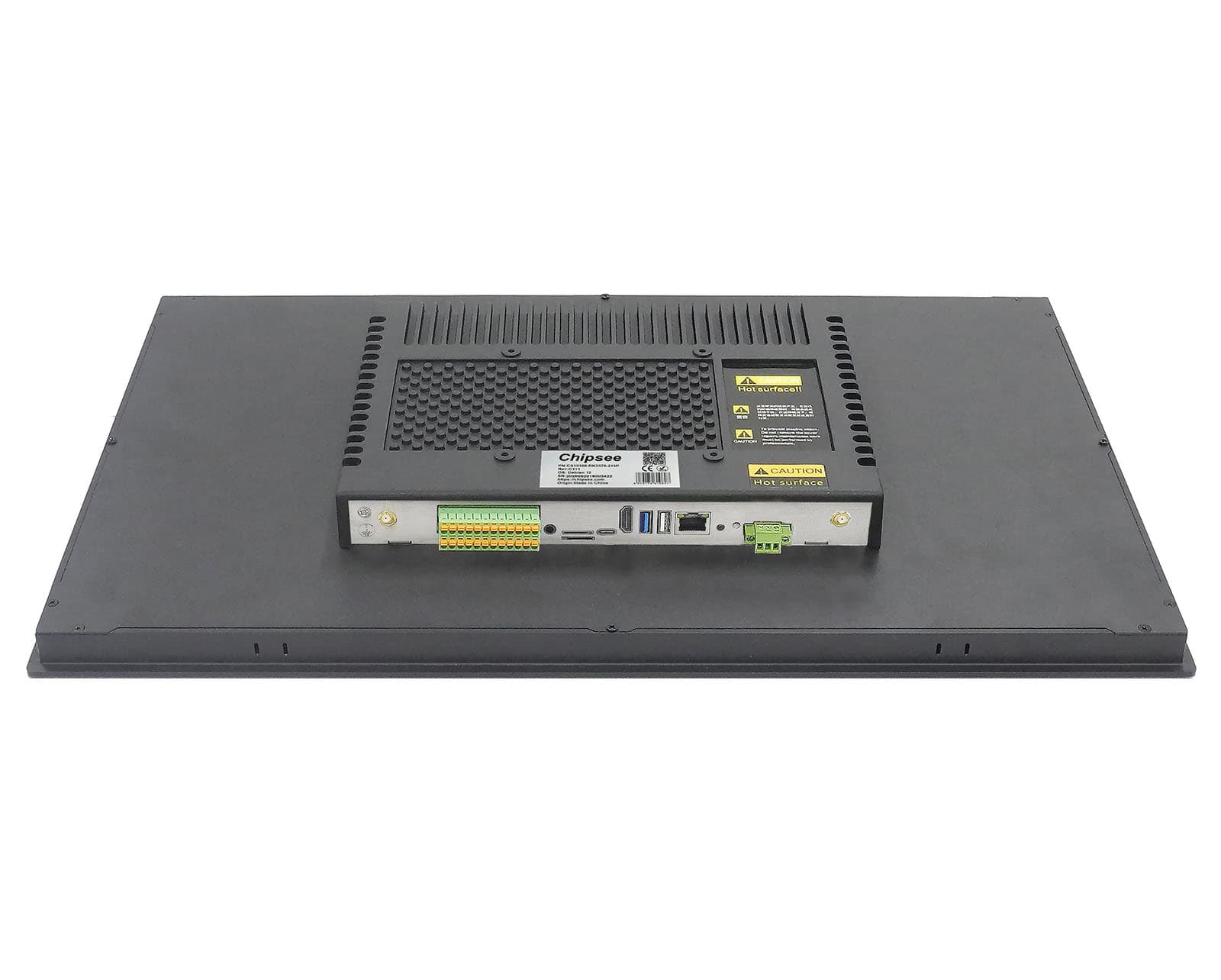

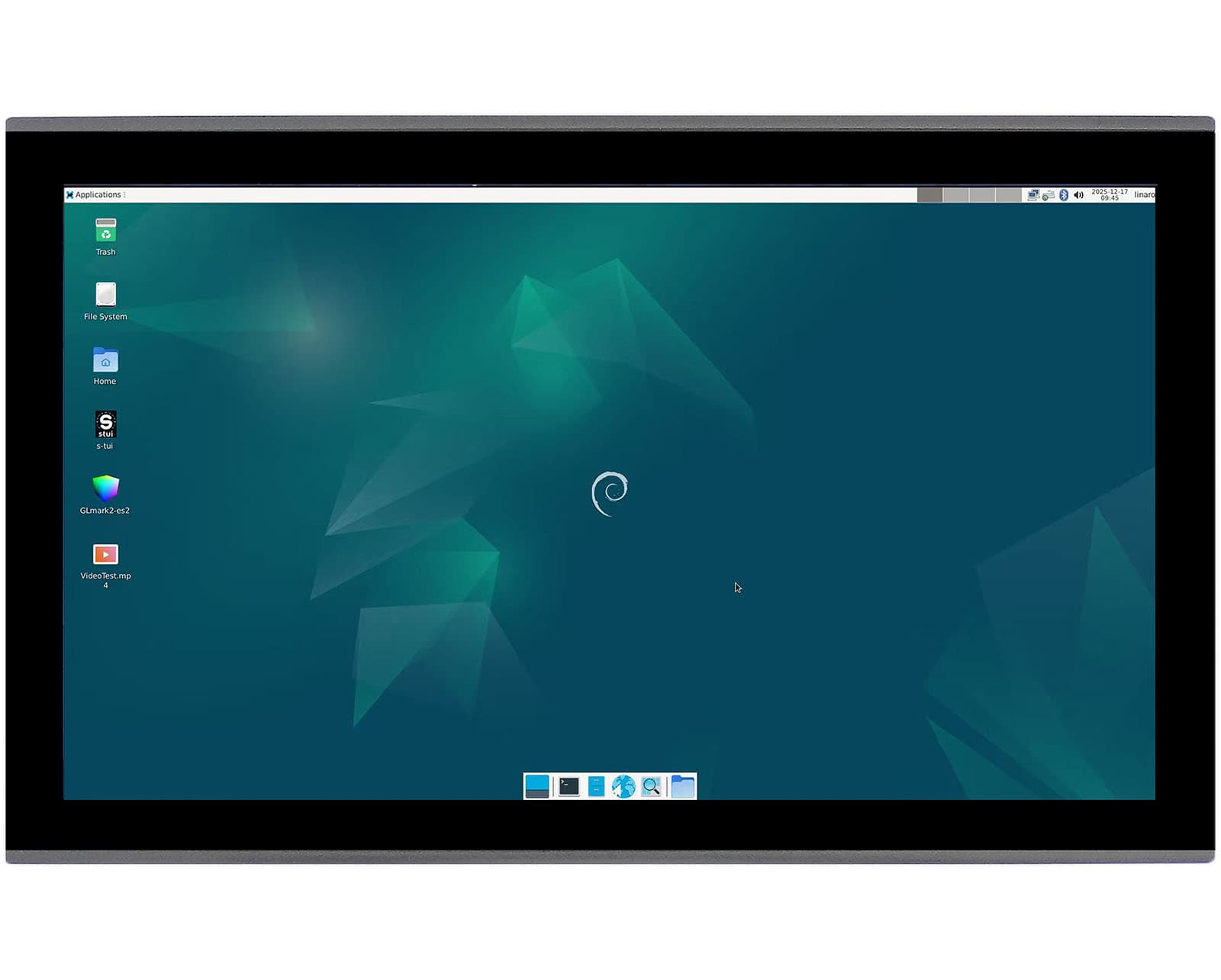

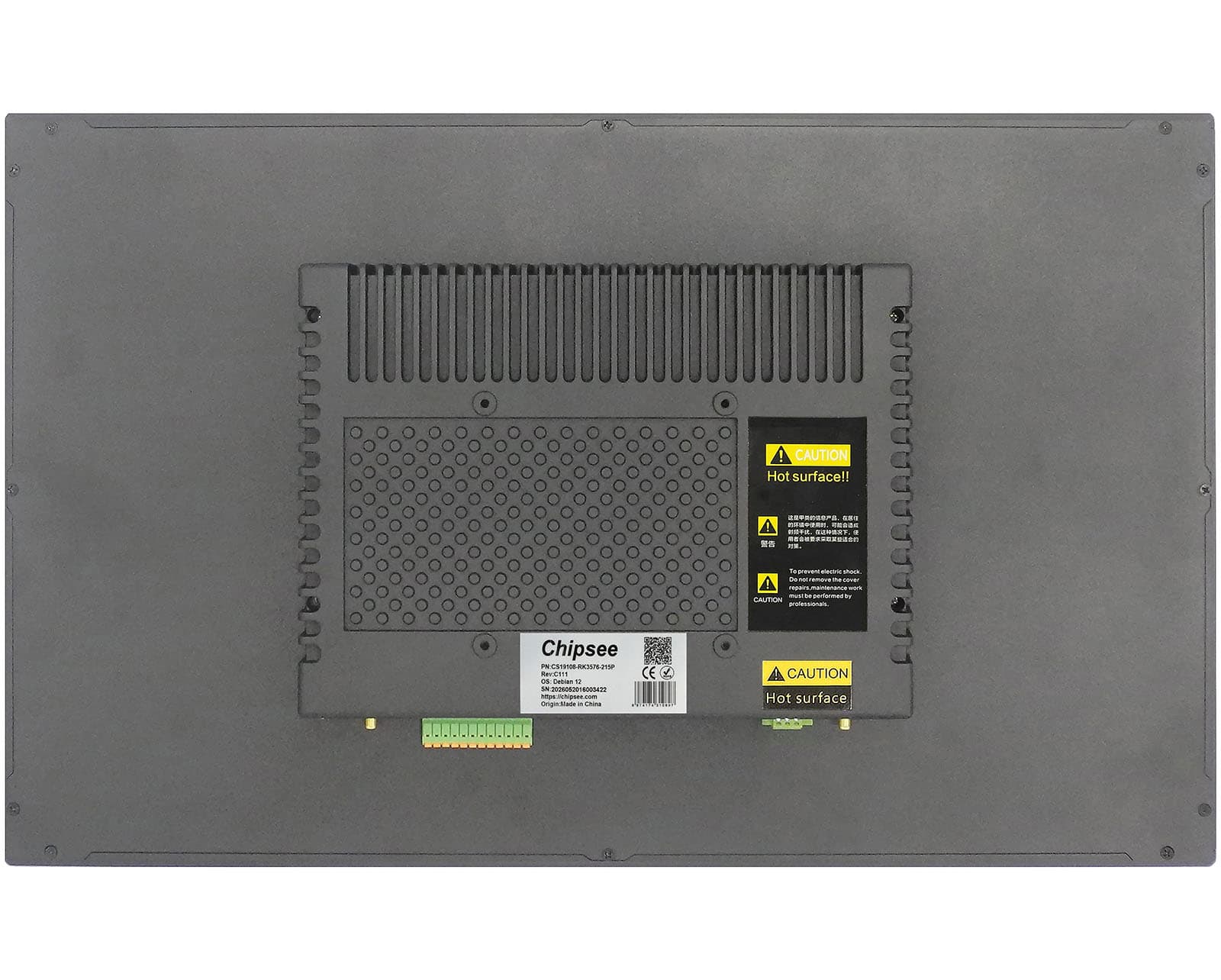

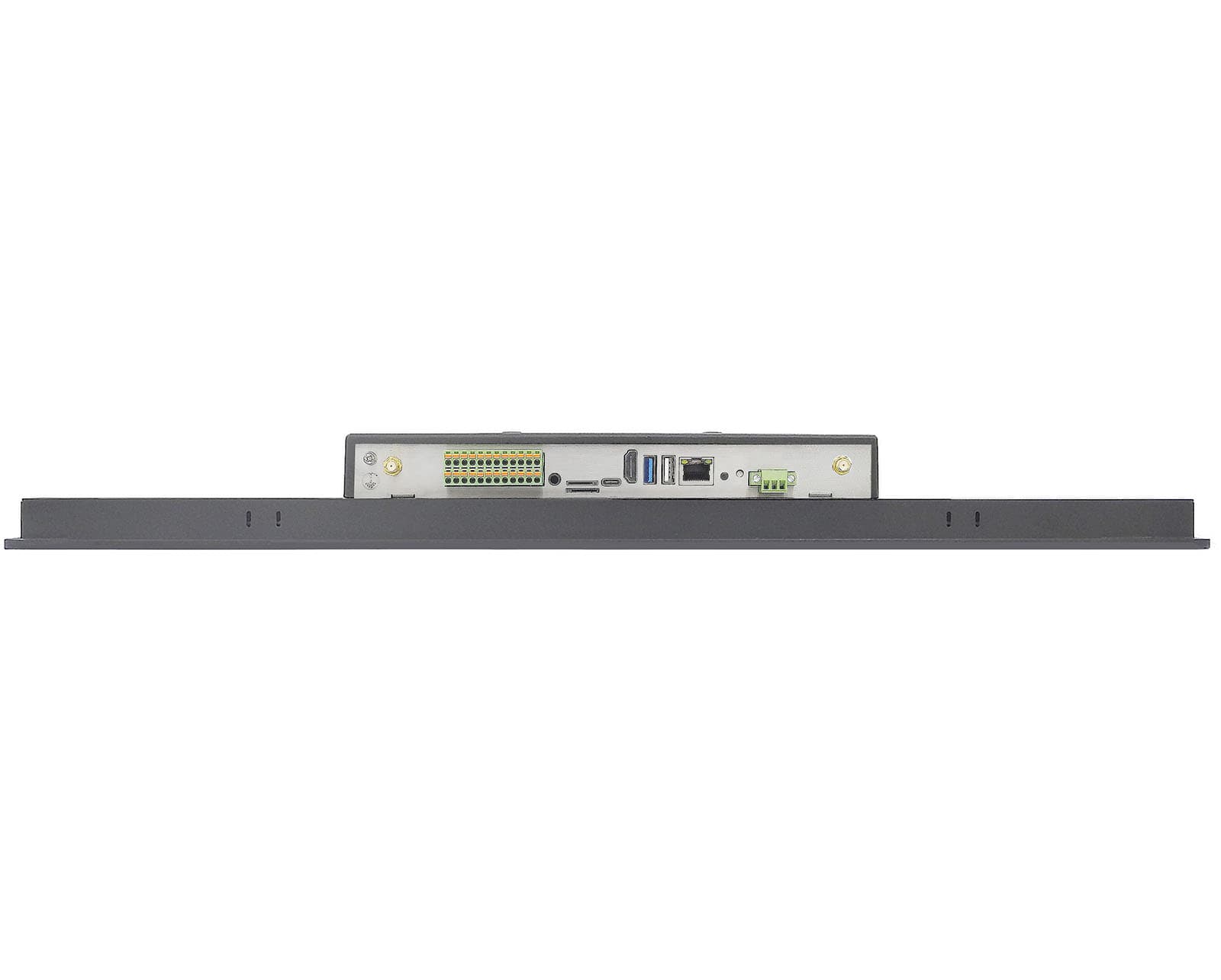

The PPC-RK3576-215 is a large-format industrial panel PC developed for advanced HMI, automation, process monitoring, and edge AI applications. Featuring a 21.5” Full HD IP65-rated capacitive touchscreen display with a 1920 × 1080 resolution, it delivers clear and responsive visual performance for industrial environments that require larger display areas and reliable operation. Its durable aluminum enclosure and support for both panel and VESA mounting allow for flexible installation across a variety of industrial systems and equipment.
Specifications
- SKU
- CS19108-RK3576-215P
- Net weight
- 5500 g
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- PCIe
- Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module
- Display size
- 21.5″
- Display resolution
- 1920*1080
- Brightness
- 250 NIT
- Touch Screen
- Capacitive
- USB
- (USB3.0 port and USB-C port cannot be used at the same time); 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1x RJ45, 1 Gbps
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- (supports optional 24V ignition signal); 15-30V DC
- Power Consumption
- 18.6W typical; 24W Max
- Current at 15V
- 1.24A Typical; 1.56A Max
- Working Temperature
- 0℃~50℃
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
