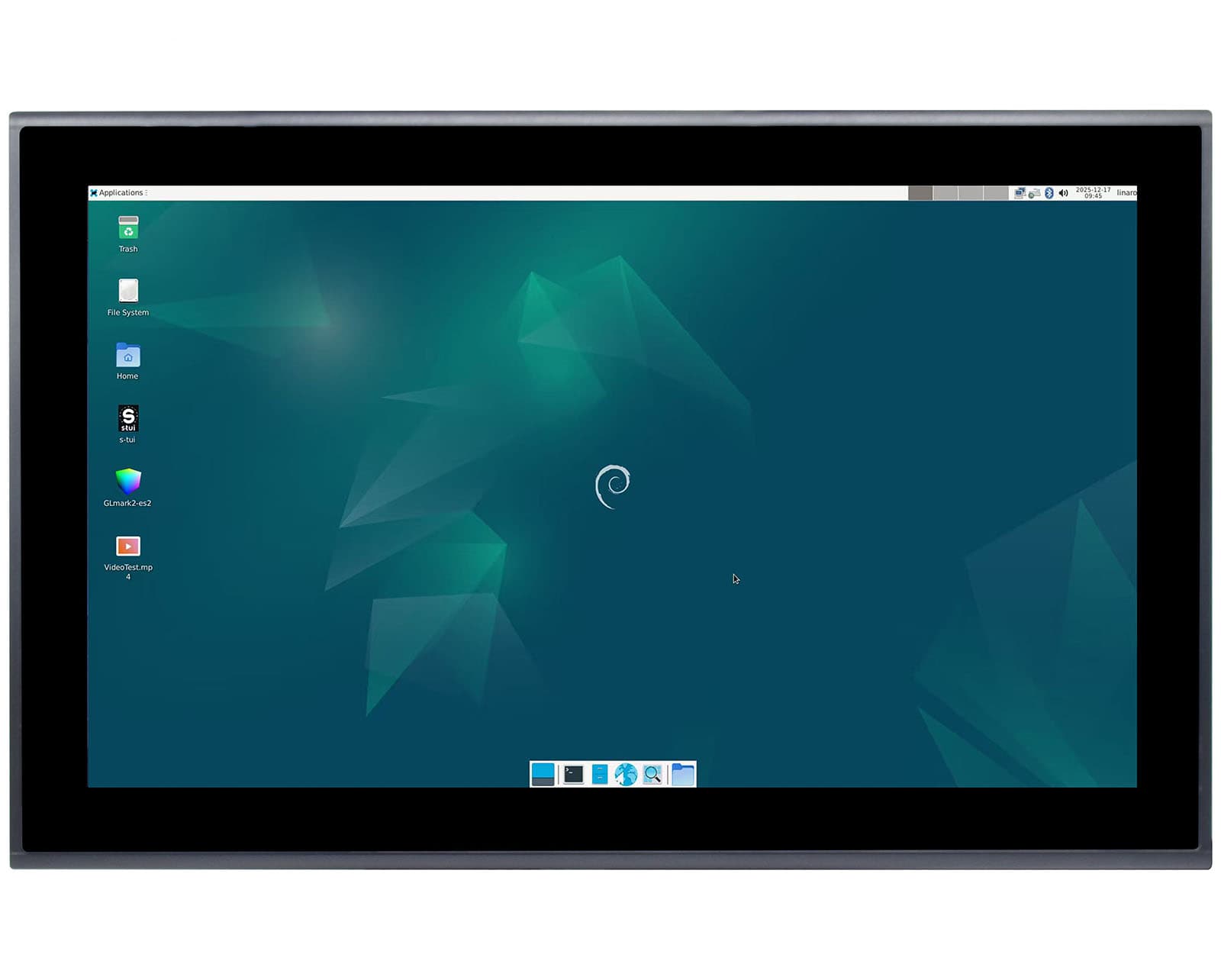

The PPC-RK3576-185 is a large-format industrial panel PC engineered for applications that require a spacious, high-resolution display and powerful edge computing. Equipped with an 18.5” Full HD capacitive touchscreen and an IP65-rated front panel, it is ideal for industrial HMIs, visualization systems, kiosks, and control stations operating in harsh environments. The rugged aluminum housing and support for both panel and VESA mounting ensure reliable installation in industrial cabinets or standalone setups. Built around the Rockchip RK3576J processor, the PPC-RK3576-185 delivers advanced performance for graphics-intensive and AI-enabled applications. Its combination of multi-OS support, extensive I/O, and optional expansion modules allows system integrators to tailor the platform for automation, smart manufacturing, transportation, and edge intelligence use cases.
Specifications
- SKU
- CS19108-RK3576-185P
- Net weight
- 5200 g
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Display size
- 18.5″
- Display resolution
- 1920*1080
- Brightness
- 350 NIT
- Touch Screen
- Capacitive
- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional; Power Over Ethernet 802.3af/at
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- (supports optional 24V ignition signal); 15-30V DC
- Power Consumption
- 18W Typical; 24W Max
- Current at 15V
- 1.2A Typical; 1.6A Max
- Working Temperature
- -30°C to +80°C
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
