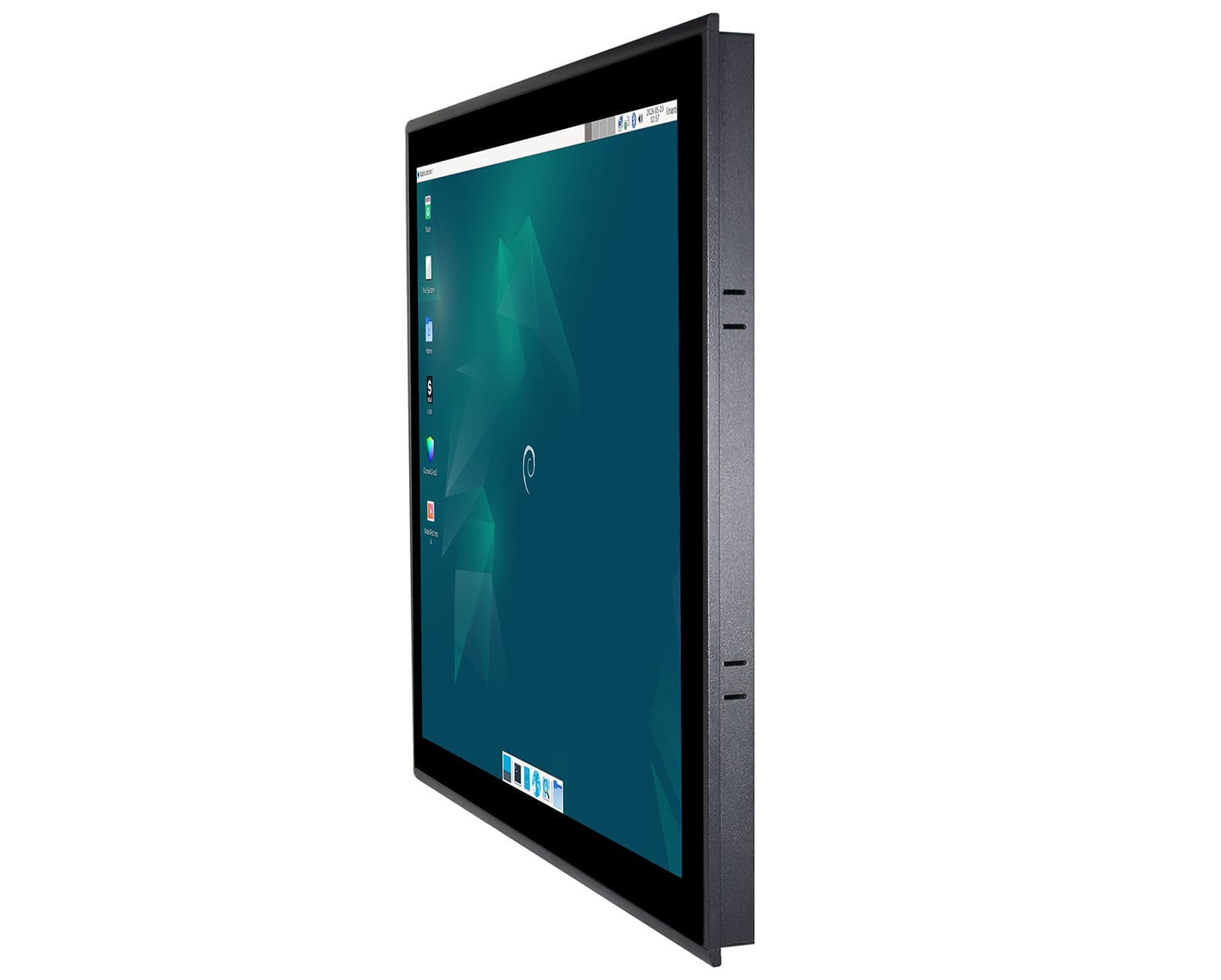

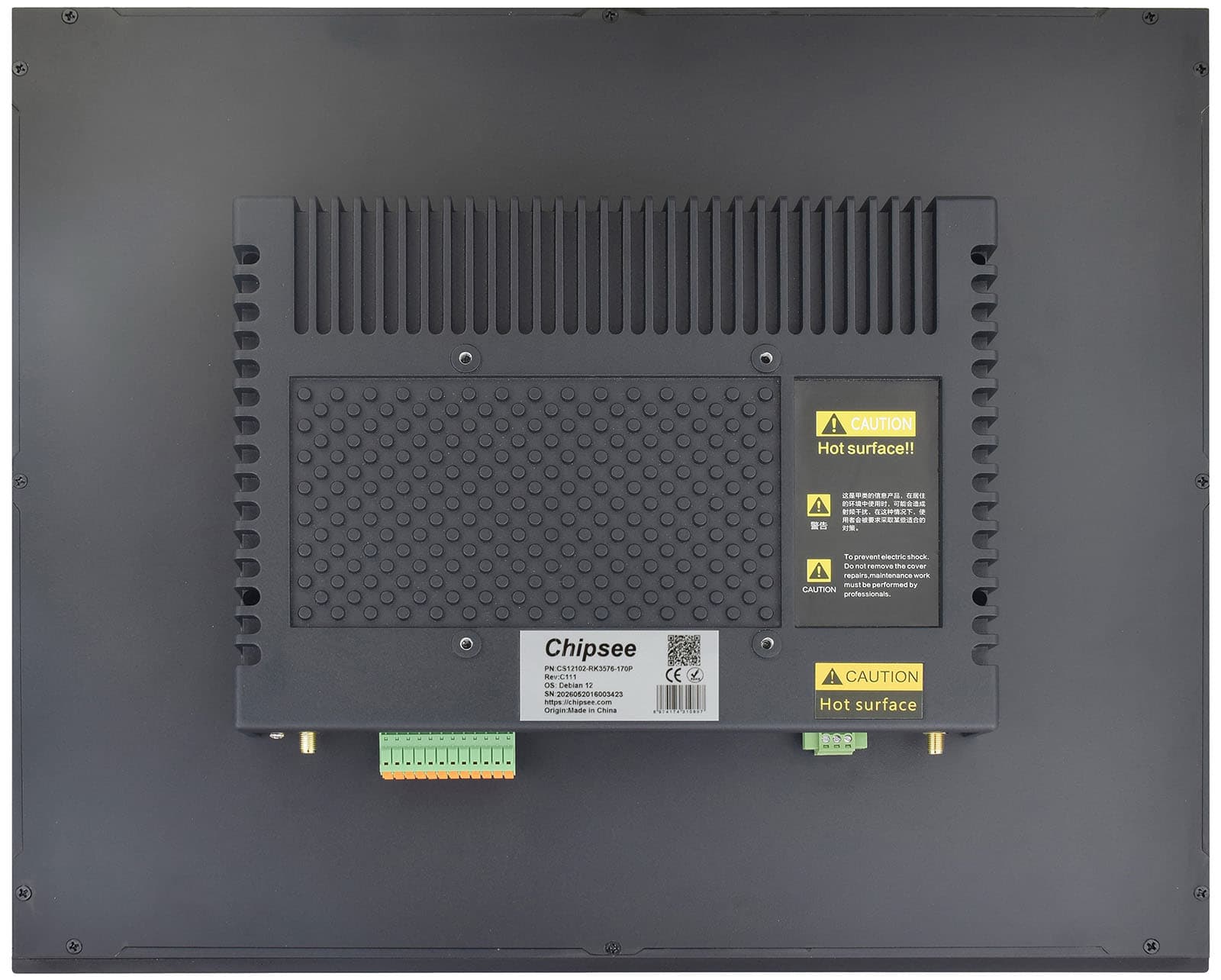

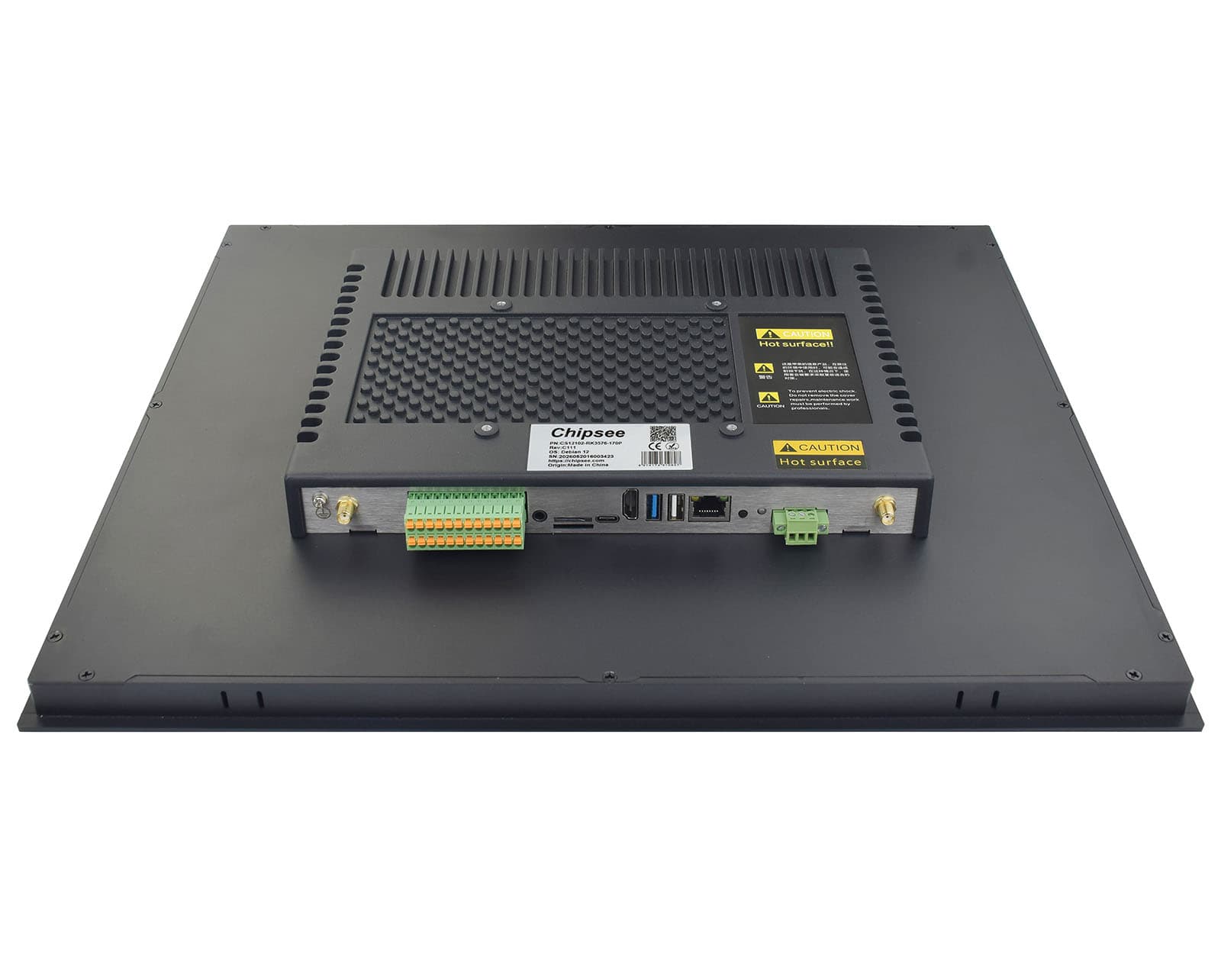

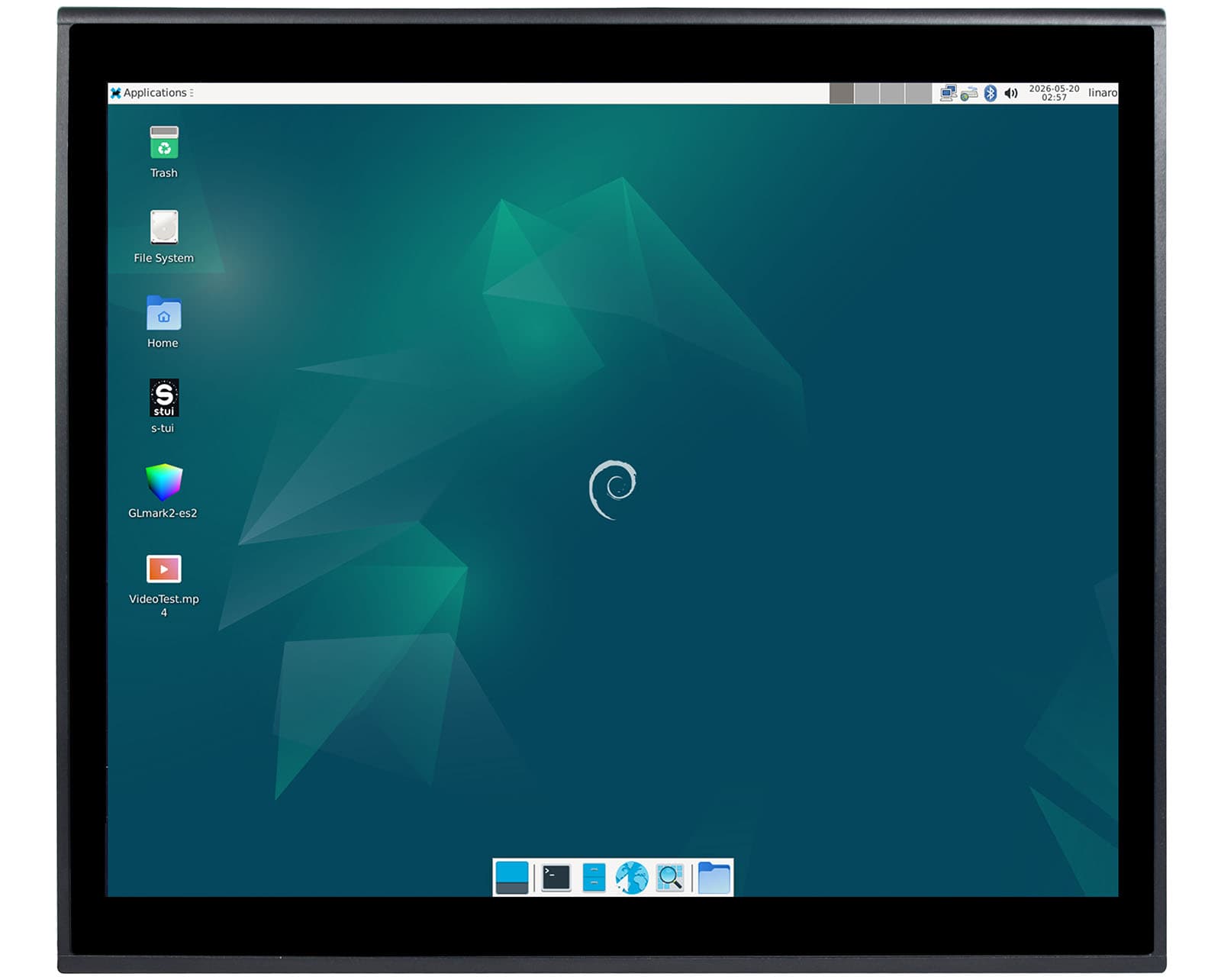

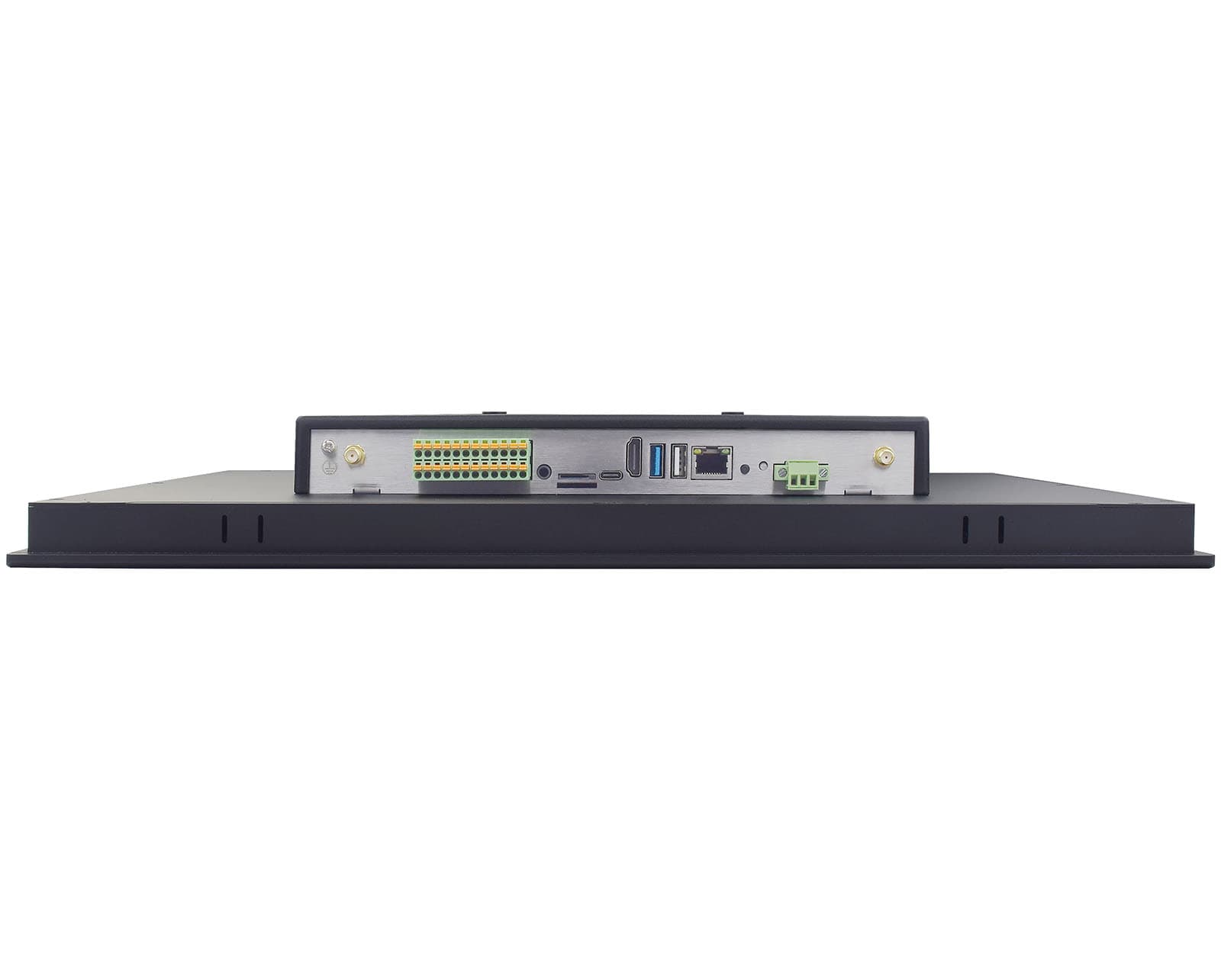

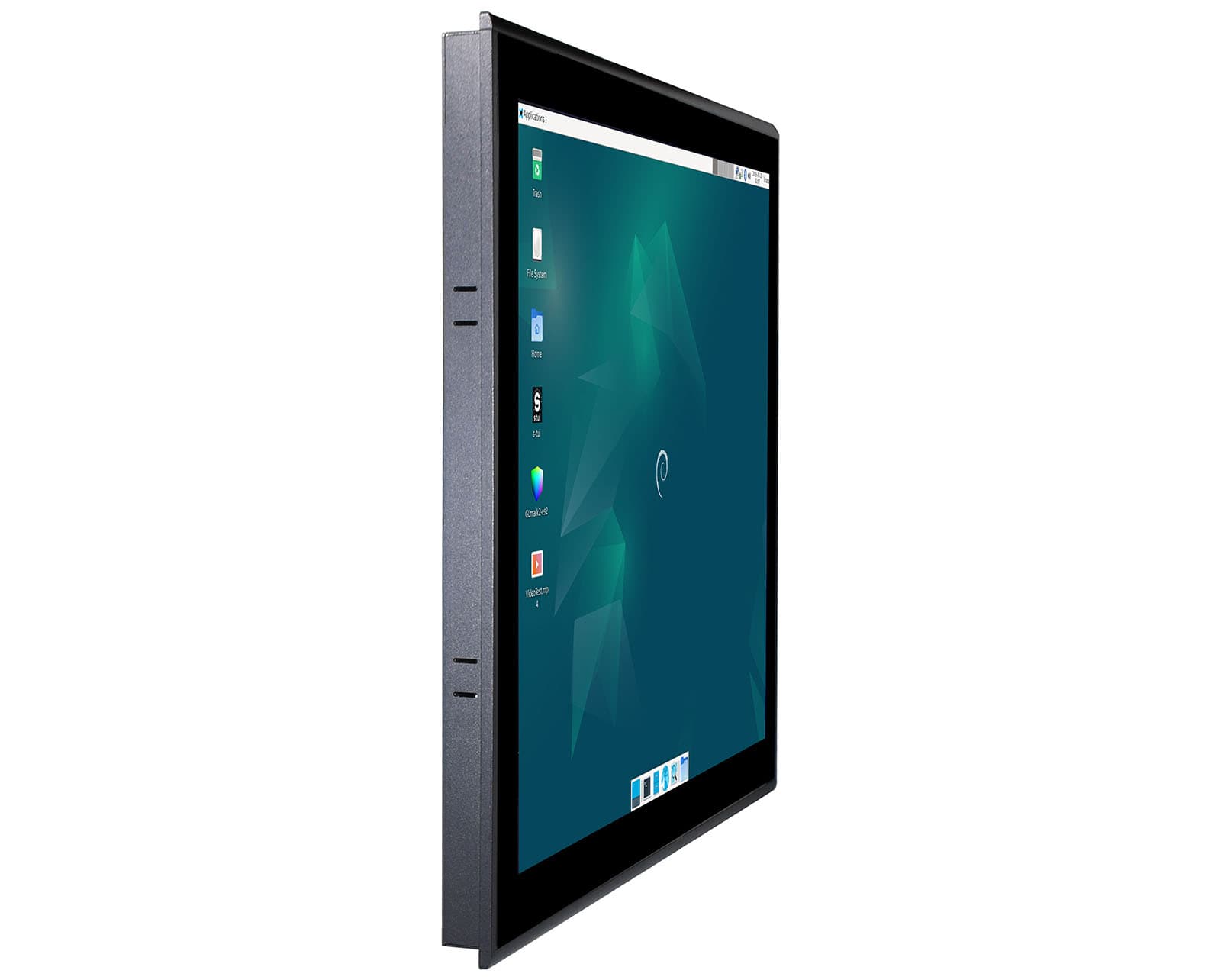

The PPC-RK3576-170 is a robust industrial panel PC designed for industrial automation, HMI, process control, and intelligent edge computing applications. Featuring a 17.0” IP65-rated capacitive touchscreen display with a 1280 × 1024 resolution, it delivers clear visual performance in demanding industrial environments. Housed in a durable aluminum enclosure, the system supports both panel and VESA mounting for flexible deployment across a wide range of industrial installations.
Specifications
- SKU
- CS12102-RK3576-170P
- Net weight
- 4600 g
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- PCIe
- Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module
- Display size
- 17.0″
- Display resolution
- 1280*1024
- Brightness
- 350 NIT
- Touch Screen
- Capacitive
- USB
- (USB 3.0 port and USB-C port cannot be used at the same time); 1 x USB Type-C; 1x USB 2.0 HOST; 2 x USB 3.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional; Power Over Ethernet 802.3af/at
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- (supports optional 24V ignition signal); 15-30V DC
- Power Consumption
- 14W Typical; 19W Max
- Current at 15V
- 0.91A Typical; 1.25A Max
- Working Temperature
- 0℃~50℃
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
