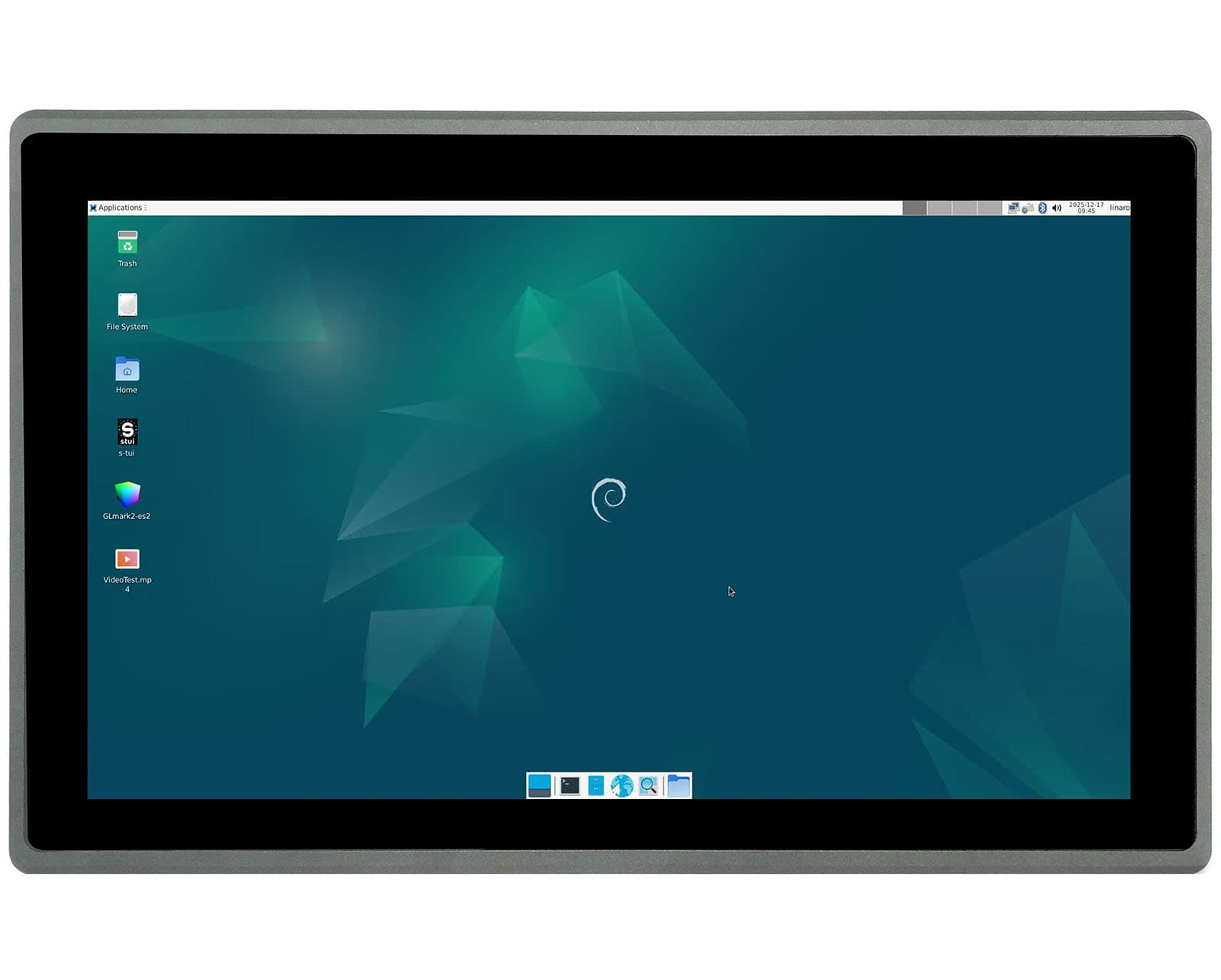

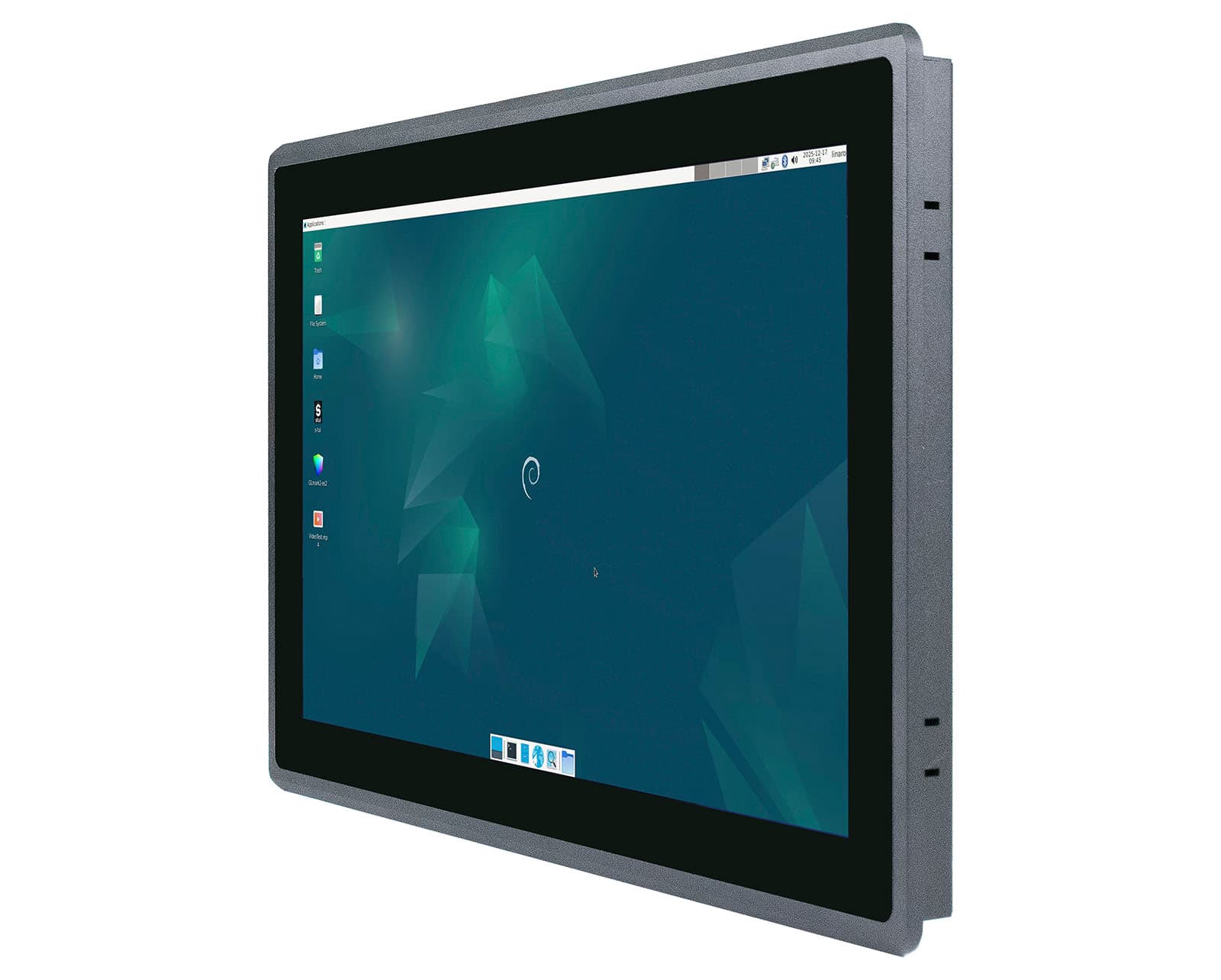

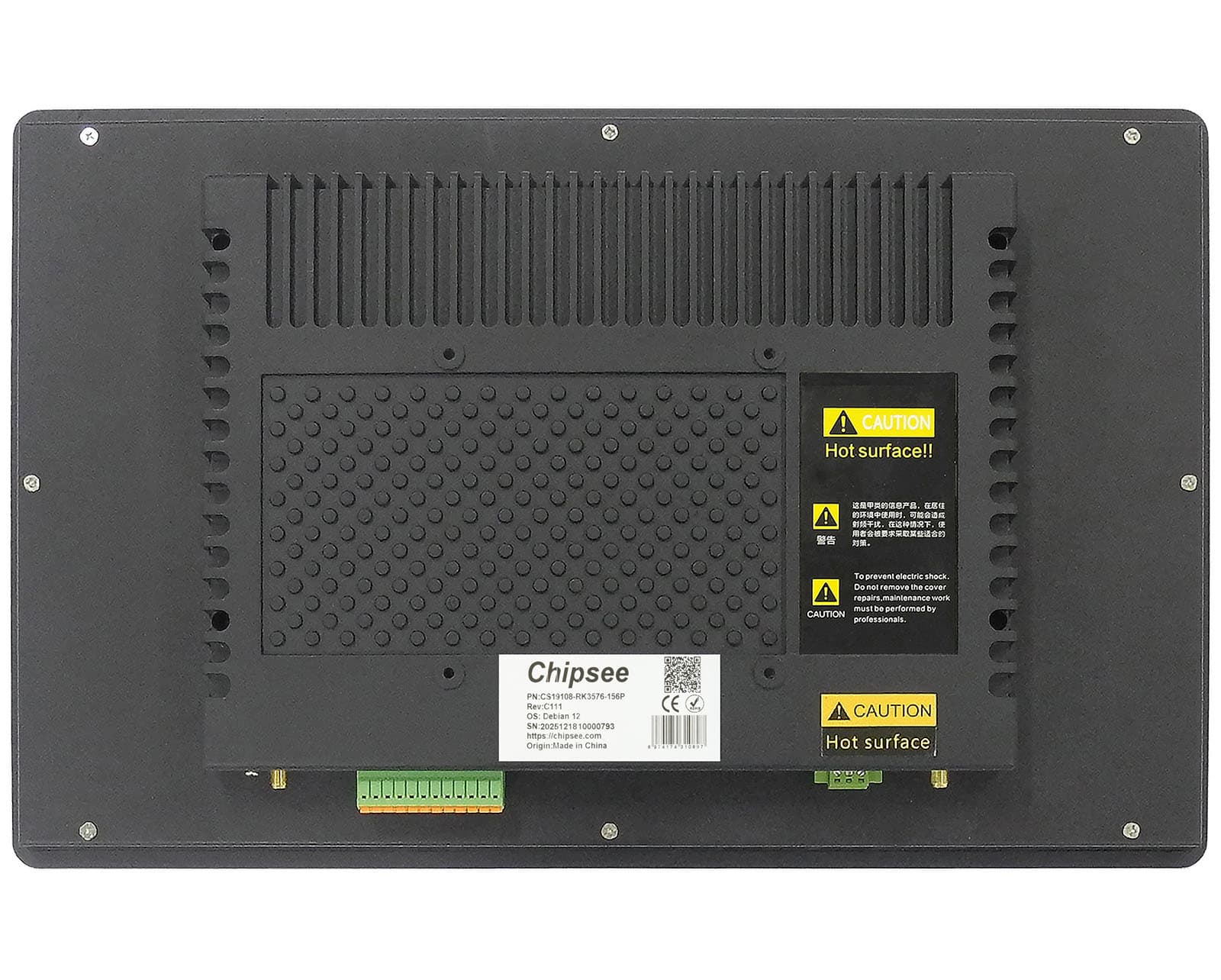

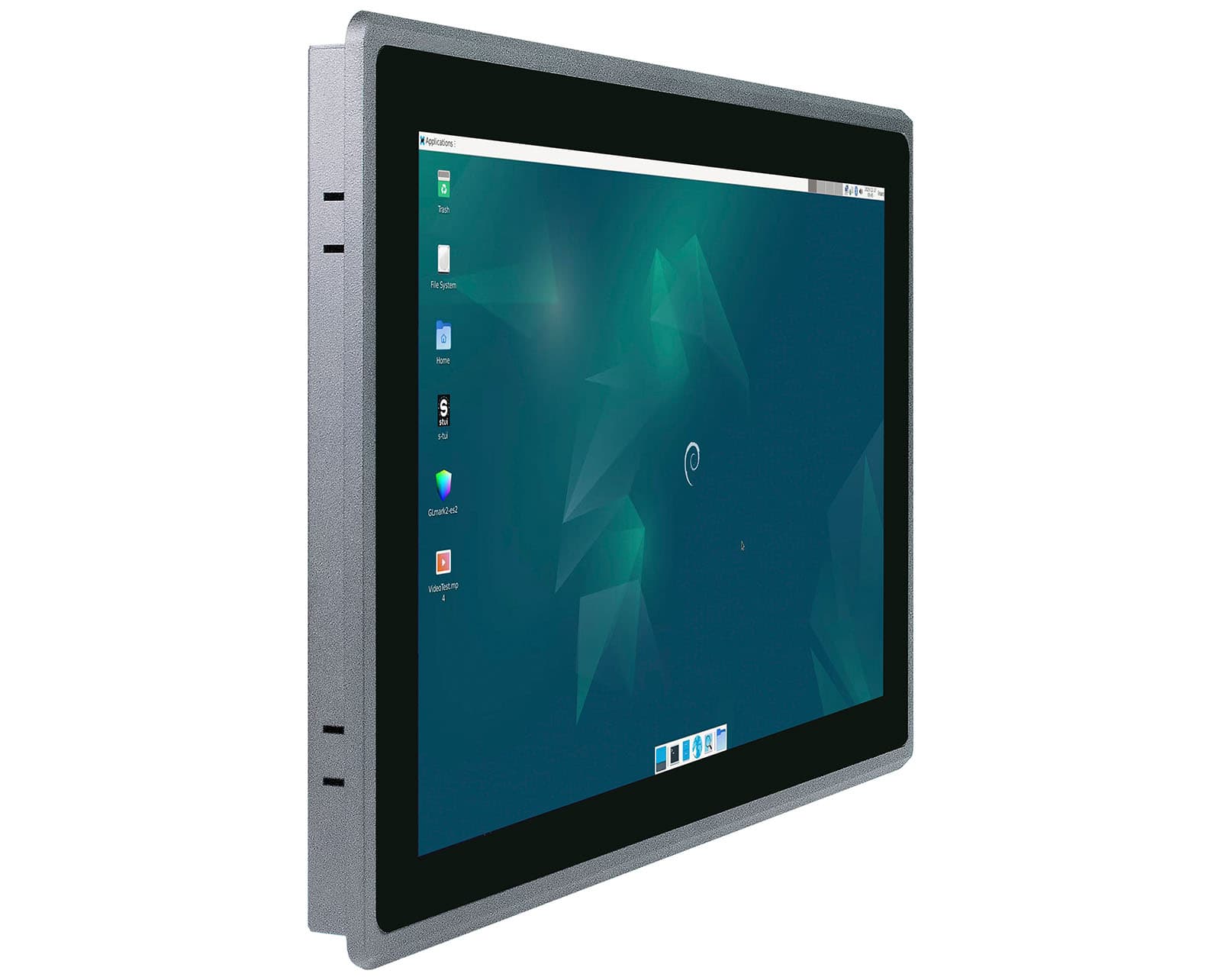

The PPC-RK3576-156 is a high-performance IP65-rated industrial panel PC featuring a 15.6″ ten-point capacitive touchscreen with full HD resolution of 1920 × 1080 and 450 NIT brightness. Its durable aluminum enclosure with bezels allows flexible installation options, including panel and VESA mounting, making it ideal for industrial cabinets or integration with existing machinery. Powered by the Rockchip RK3576 octa-core processor with an integrated 6 TOPS NPU, this panel PC delivers smooth performance for HMI systems, video processing, machine learning, process monitoring, and ATMs. The combination of a large, bright display, responsive touch, and robust design ensures reliability in demanding industrial environments.
Specifications
- SKU
- CS19108-RK3576-156P
- Net weight
- 4500 g
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- M.2
- Optional, supports M.2 M-Key 2230/2242/2260/2280 NVME SSD (PCI-E 3.0 x1)
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- Display size
- 15.6"
- Display resolution
- 1920*1080
- Brightness
- 450 NIT
- Touch Screen
- Capacitive

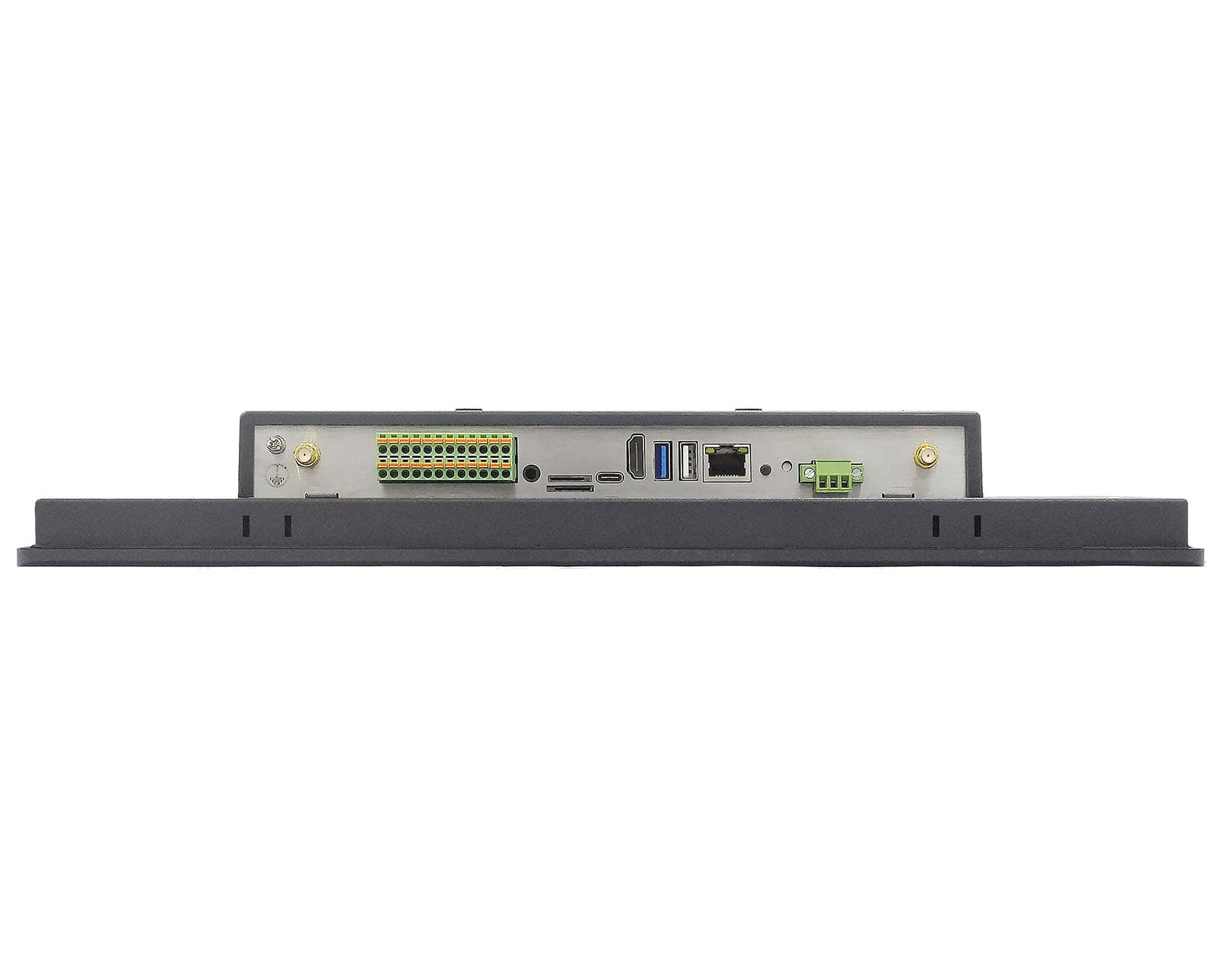

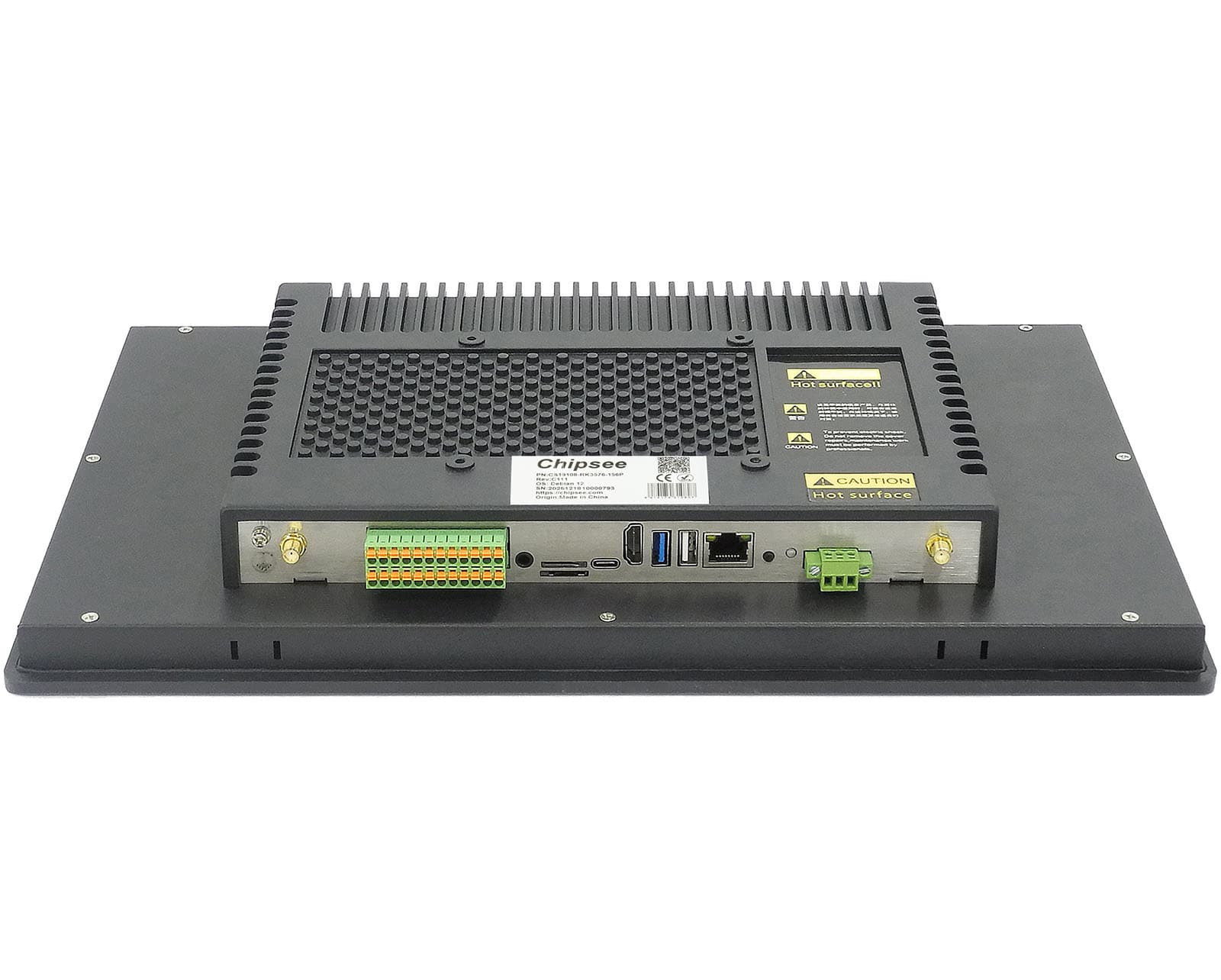

- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- 15-30V DC
- Power Consumption
- 19.5W typical
- Working Temperature
- -30°C ~ +85°C
- Current at 15V
- 1.5A Max
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
