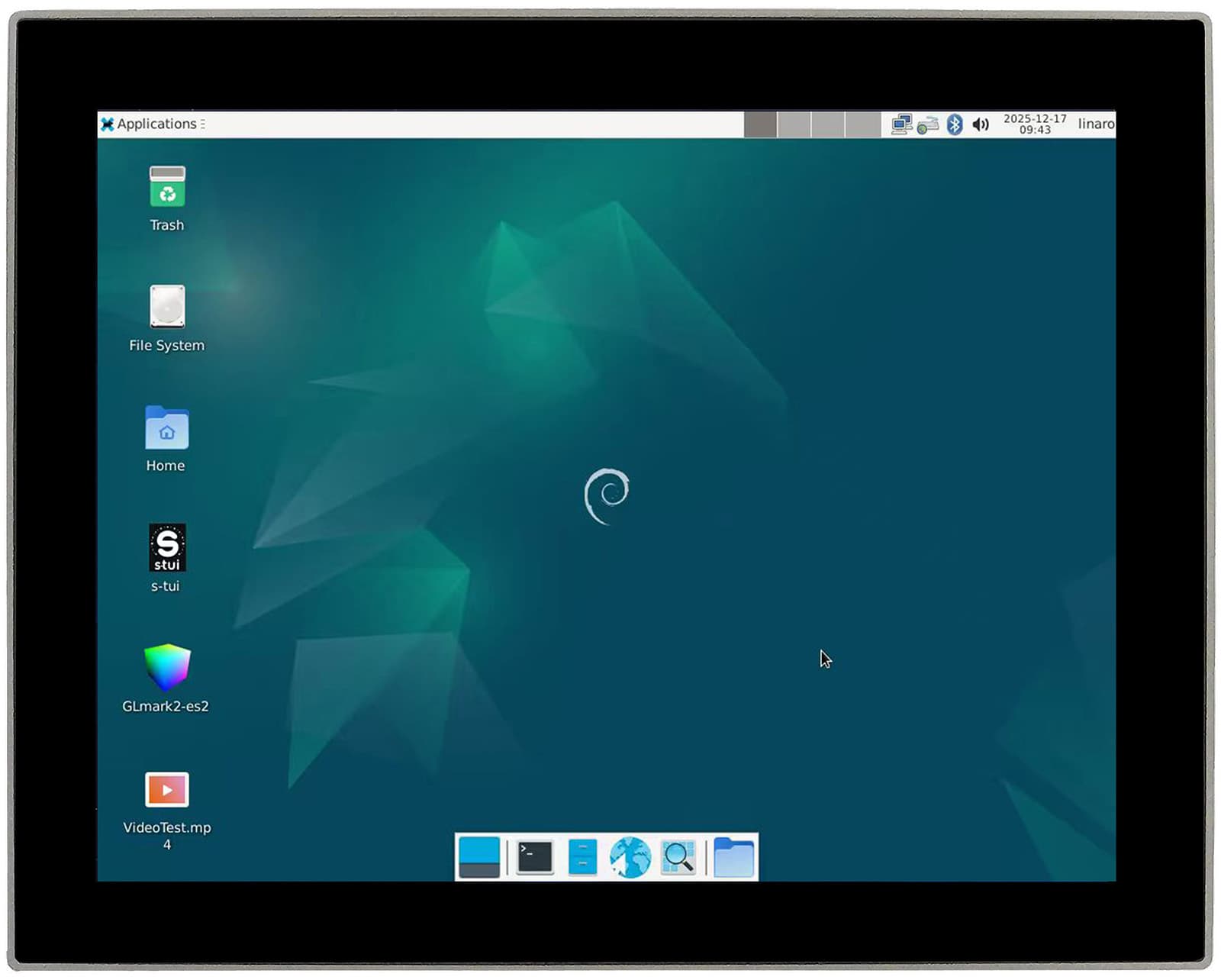

The PPC-RK3576-150 is a high-performance industrial panel PC designed for demanding HMI, automation, and edge computing applications. Built around the powerful Rockchip RK3576 processor, it combines reliable industrial-grade construction with a 15” IP65-rated capacitive touchscreen display, making it suitable for factory automation, process monitoring, machine control, and smart industrial environments. Its robust aluminum enclosure and flexible mounting options allow for seamless integration into industrial cabinets and existing systems.
Specifications
- SKU
- CS10768-RK3576-150P
- Net weight
- 4500 g
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- PCIe
- Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module
- Display size
- 15.0″
- Display resolution
- 1024*768
- Brightness
- 400 NIT
- Touch Screen
- Capacitive
- USB
- (USB3.0 port and USB-C port cannot be used at the same time); 1 x USB Type-C; 1x USB 2.0 HOST; 2 x USB 3.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional; Power Over Ethernet 802.3af/at
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- (supports optional 24V ignition signal); 15-30V DC
- Power Consumption
- 15W Typical; 18.5W Max
- Current at 15V
- 1.23A Max; 1A Typical
- Working Temperature
- -20°C ~ 70°C.
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
