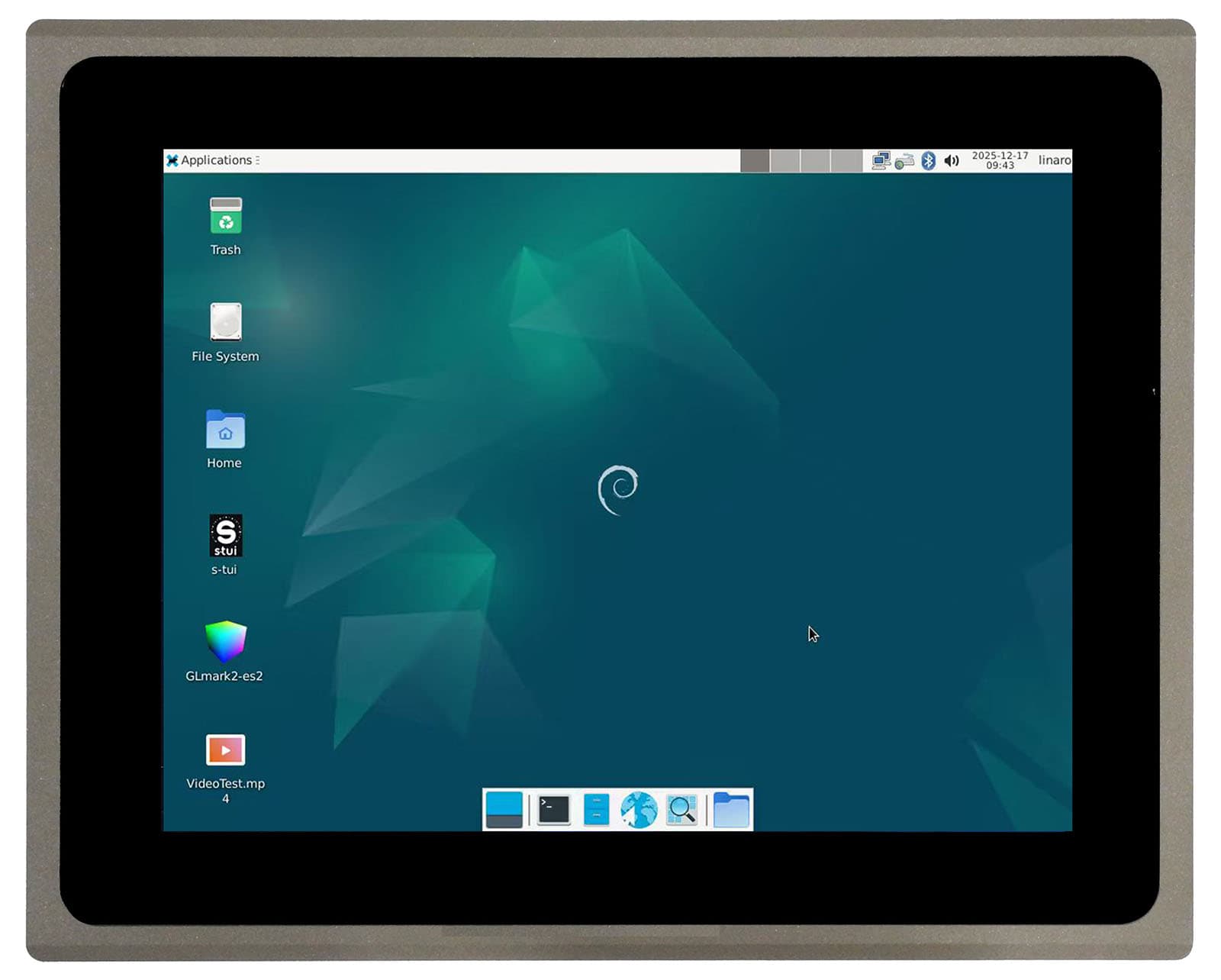

The PPC-RK3576-121 is a rugged, IP65-compliant industrial panel PC powered by the Rockchip RK3576 octa-core processor. It features a 12.1″ ten-point capacitive touchscreen with a resolution of 1024 × 768 pixels and 350 NIT brightness, ideal for a range of industrial applications. Housed in a durable aluminum enclosure with bezels, this panel PC supports flexible mounting options, including panel and VESA mounting, making it suitable for HMI systems, process monitoring, machine learning, video processing and ATMs . It combines performance and energy efficiency, enabling smooth operation for complex tasks in demanding industrial environments. Its versatile design allows seamless integration with existing equipment, providing a reliable solution for modern industrial deployments.
Specifications
- SKU
- CS10768-RK3576-121
- Net weight
- 3100 g
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- M.2
- Optional, supports M.2 M-Key 2230/2242/2260/2280 NVME SSD (PCI-E 3.0 x1)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB
- Storage
- TF Card, Supports up to 128GB SDHC
- Display size
- 12.1"
- Display resolution
- 1024*768
- Brightness
- 350 NIT
- Touch Screen
- Capacitive
- USB
- 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 2 x CAN FD by default; Optionally, these 2 x CAN FD can be configured to RS232.
- GPIO
- 8 Channels, 4 Input, 4 Output
- HDMI
- 1 x HDMI OUT
- RS232
- 2 x RS232 by default (including 1 debug port). Up to 6 x RS232.
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232
- Ethernet
- 1 x RJ45, GbE
- WiFi/BT
- YES
- 4G
- Optional
- PoE
- Optional
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).
- Power Input
- 15-30V DC
- Power Consumption
- 9W Typical
- Working Temperature
- -20°C ~ 70°C.
- Current at 15V
- 850mA Max
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
