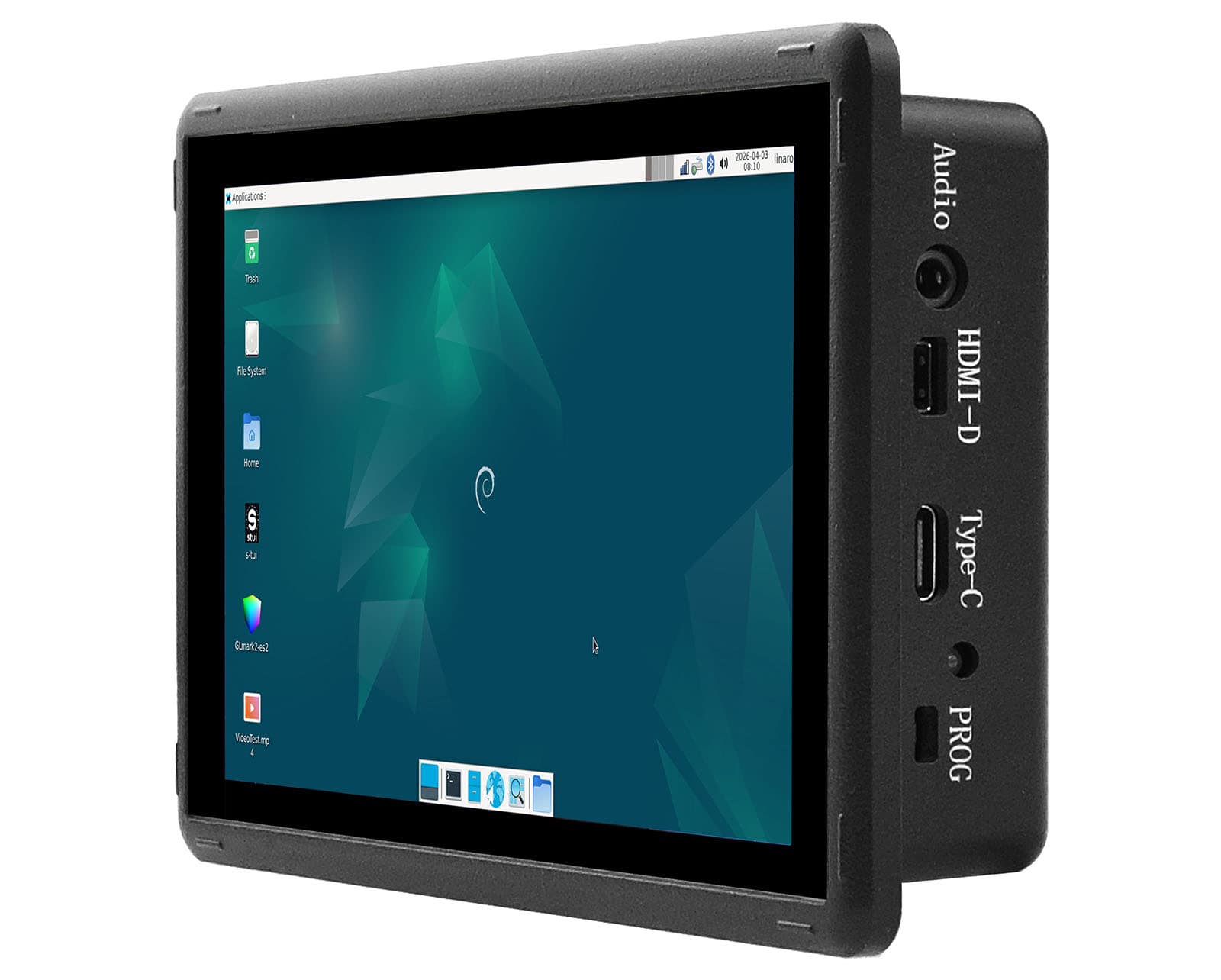

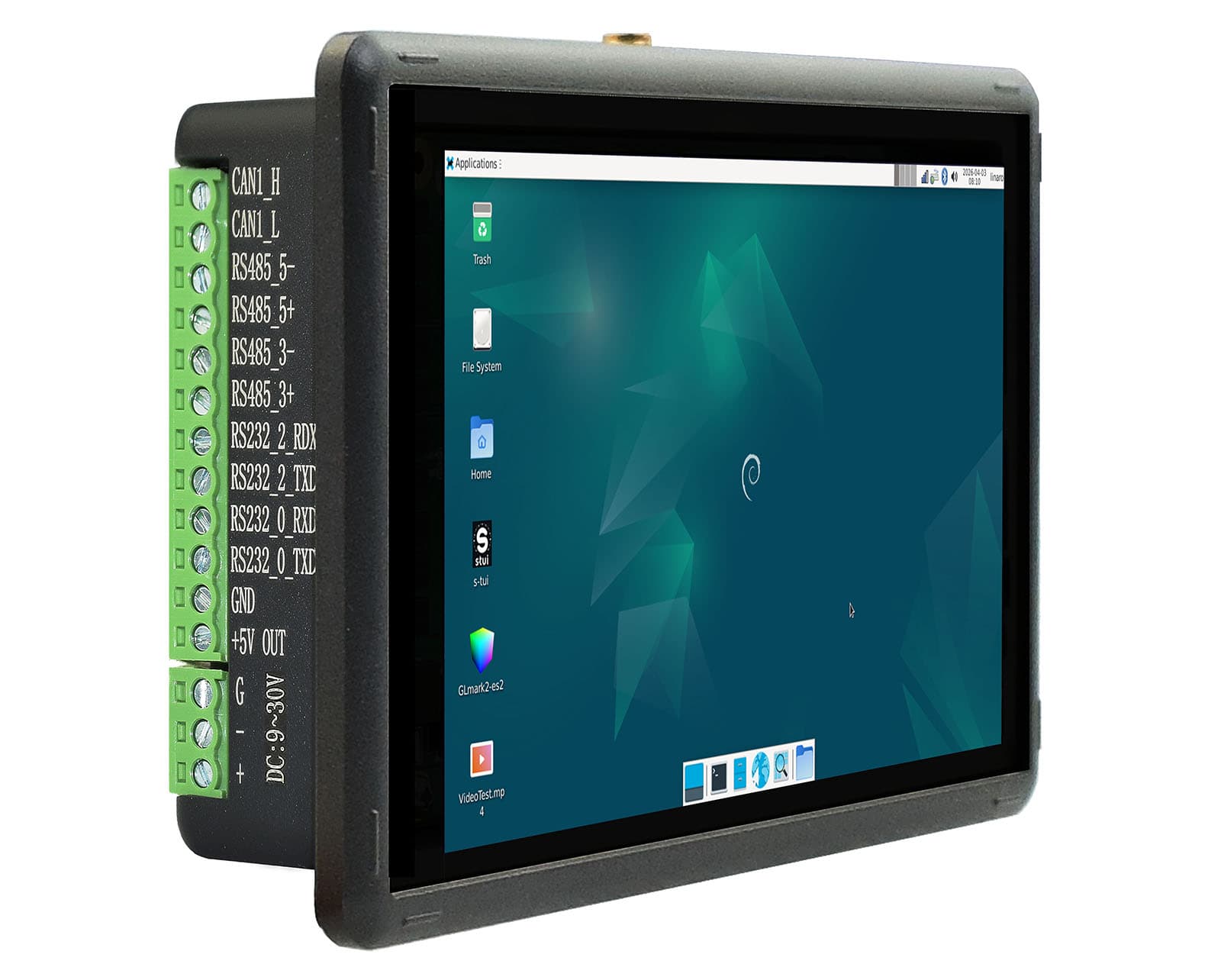

The PPC-RK3576-050 is a high-quality, IP65-compliant industrial panel PC designed to serve as a robust human-machine interface in demanding environments. Featuring a 5.0-inch capacitive touch screen protected by 1mm armored glass, this unit provides a 1280 x 720 resolution and 400 cd/m² brightness for optimal visibility in diverse lighting conditions. Housed in a durable aluminum casing with versatile panel and VESA mounting options, it offers a reliable platform for mobile applications, video processing, and process monitoring while maintaining broad software compatibility through pre-installed options like Android 14, Debian 12, or Buildroot Linux.
Specifications
- SKU
- CS12720-RK3576-050P
- Form-factor
- Panel
- CPU
- ARM: Rockchip RK3576
- CPU Frequency
- Quad(4)-core Cortex-A72 (1.6GHz) and Quad(4)-core Cortex-A53 (1.4GHz)
- NPU
- 6 TOPS(Sparsity)@INT8
- GPU
- ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding
- RAM
- 4GB LPDDR5
- eMMC
- 64GB

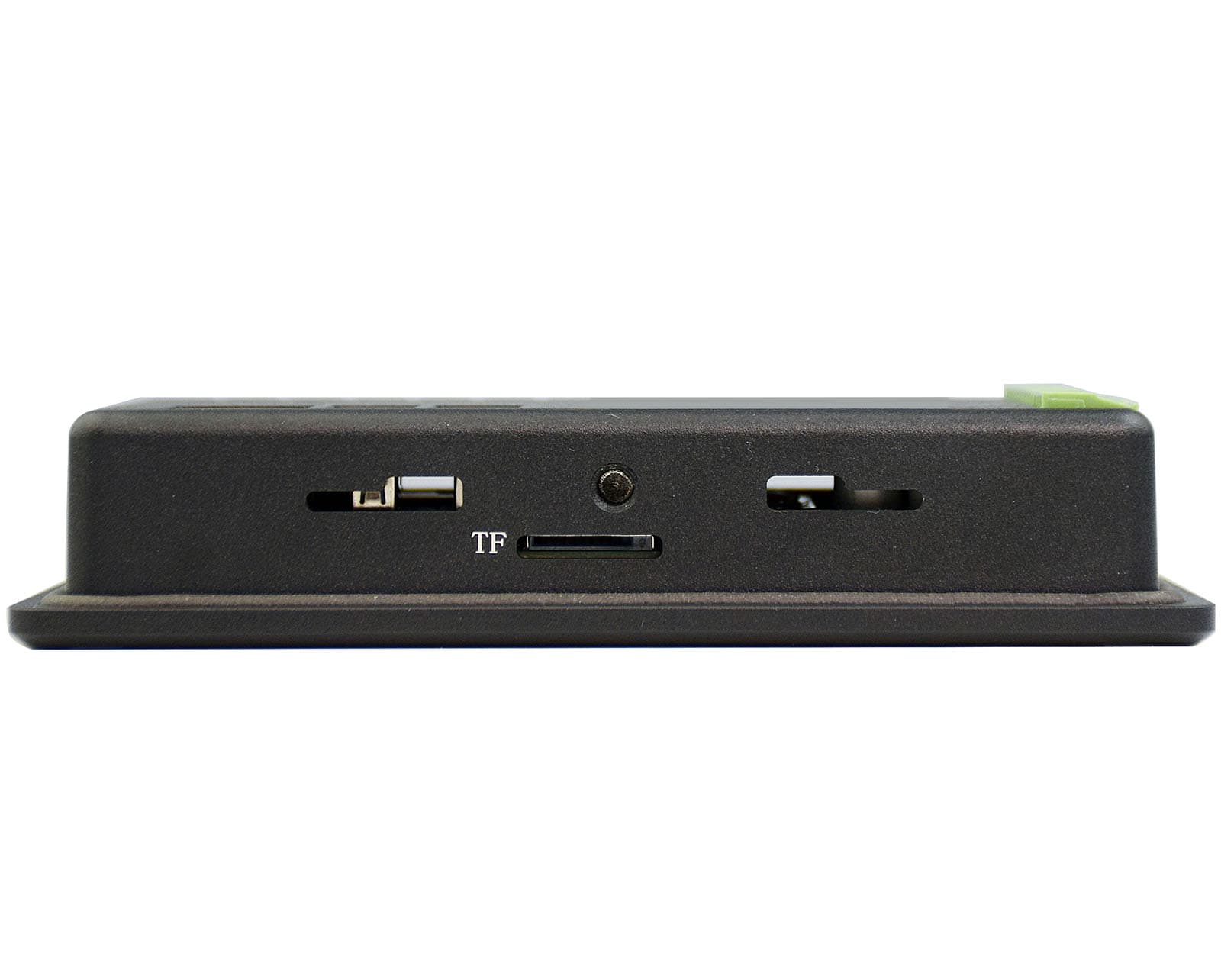

- Storage
- TF Card, Supports up to 128GB SDHC
- PCIe
- Not supported

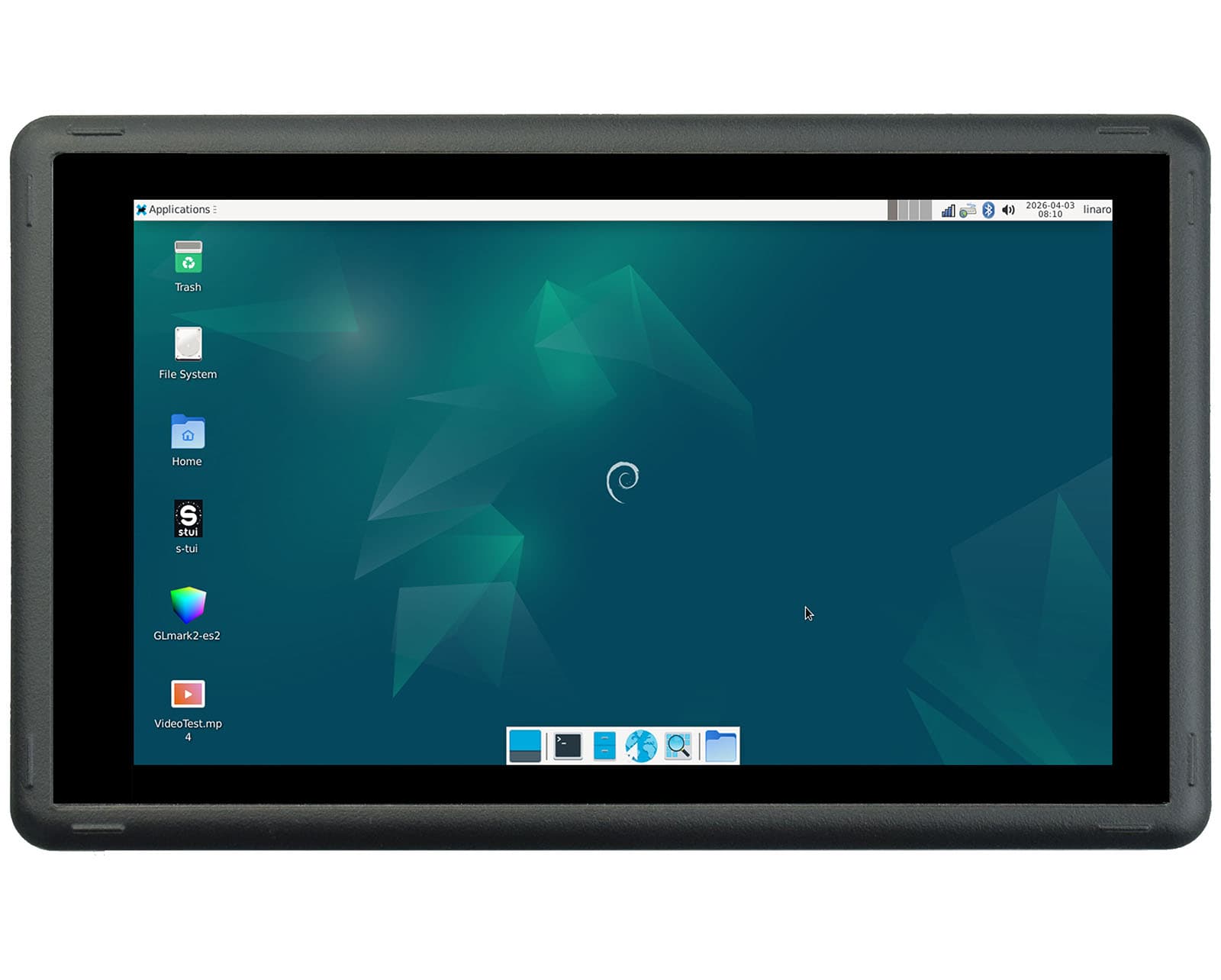

- Display size
- 5.0″
- Display resolution
- 1280 x 720
- Brightness
- 400 NIT
- Touch Screen
- Capacitive
- USB
- (USB 3.0 port and USB-C port cannot be used at the same time); 1 x USB 3.0 HOST; 1 x USB Type-C; 1x USB 2.0 HOST
- CAN
- 1 x CAN FD by default.; Optionally, 1 x RS485 can be configured to CAN (CAN0), providing up to 2 x CAN FD.
- GPIO
- Not supported

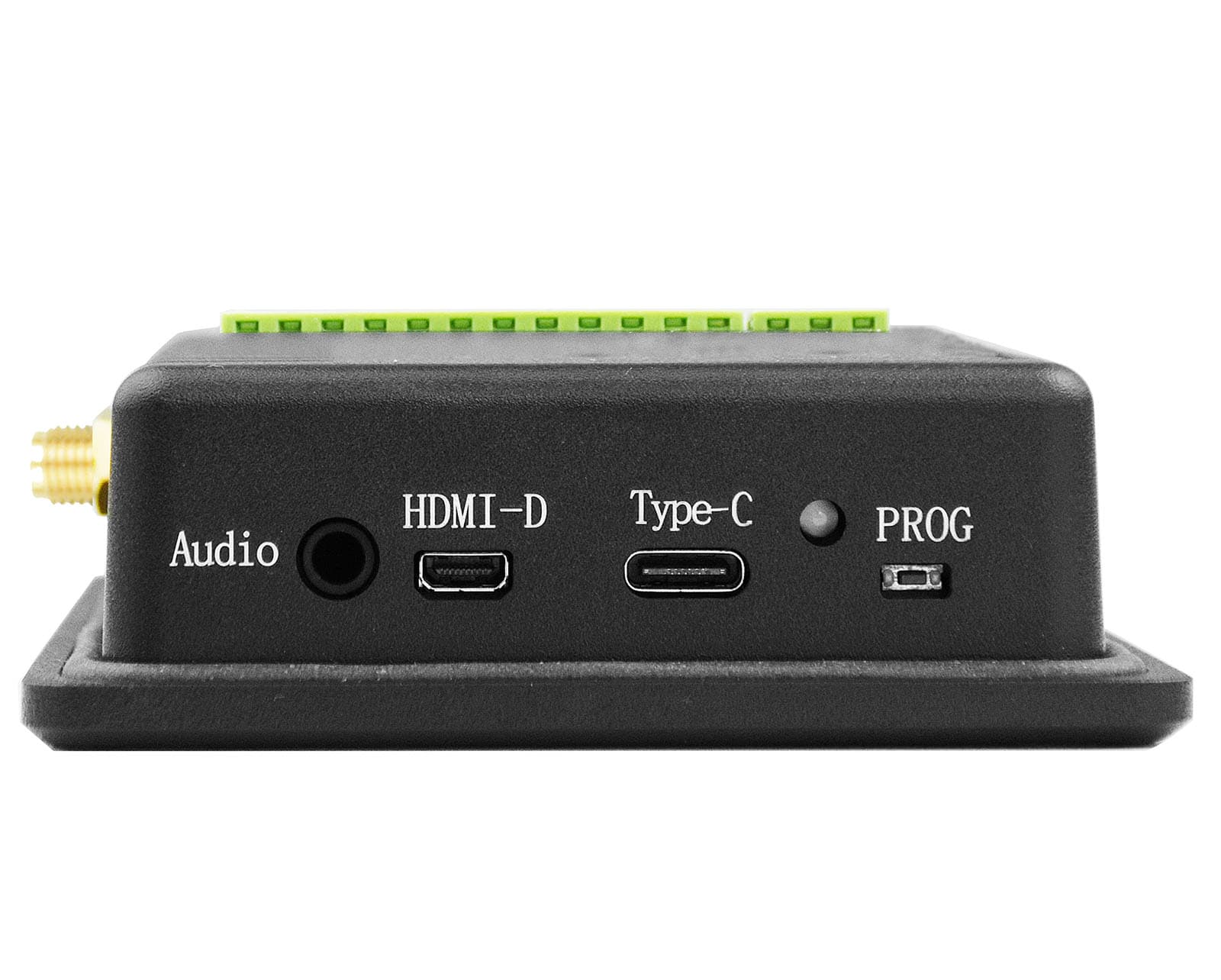

- HDMI
- 1 x HDMI-D (Micro HDMI) OUT
- RS232
- 2 x RS232 by default, up to 4 x RS232
- RS485
- 2 x RS485 by default. Optionally, these 2 x RS485 can be configured to RS232; Optionally, 1 x RS485 can be configured to CAN (CAN0)1.

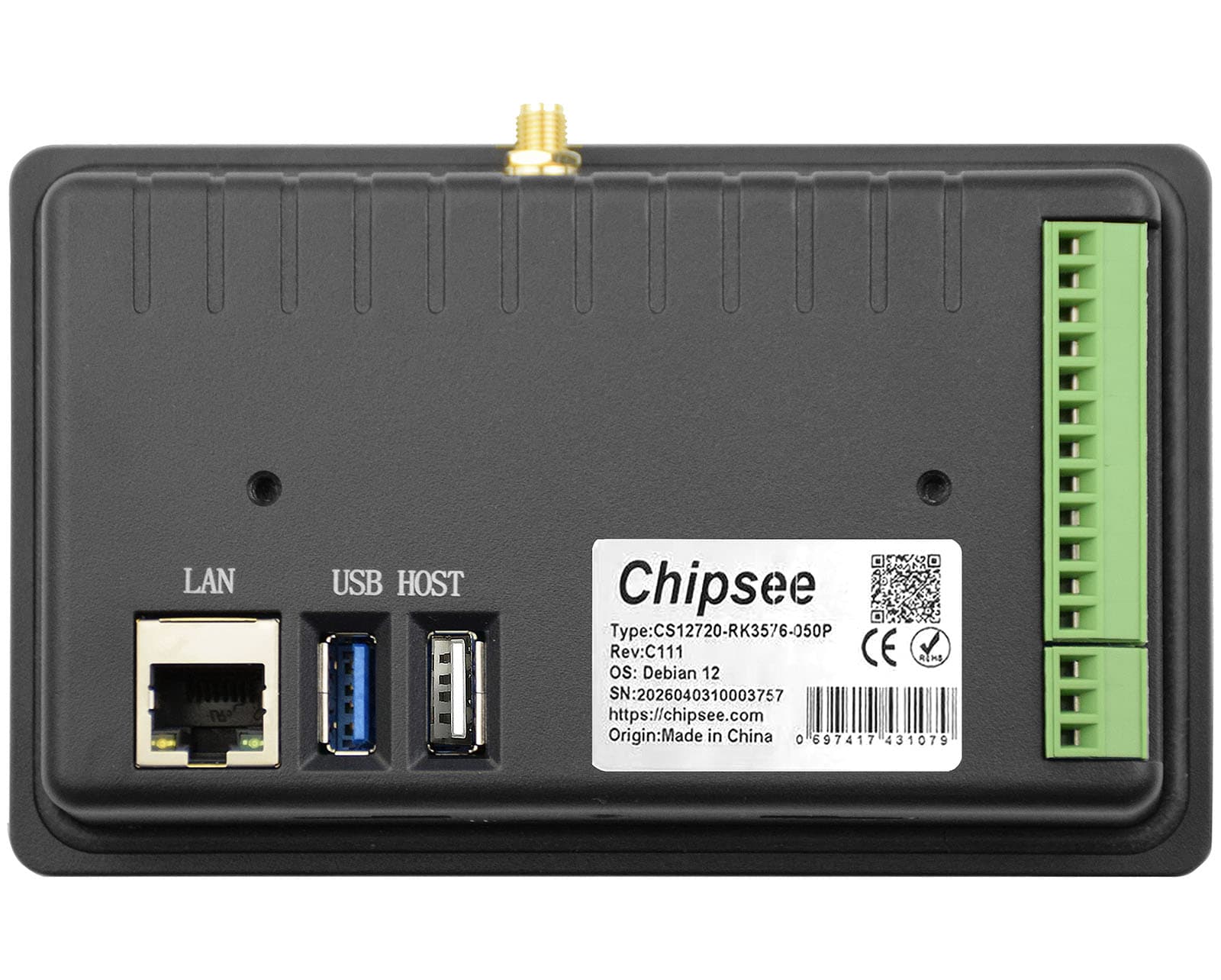

- Ethernet
- 1 x RJ45, GbE

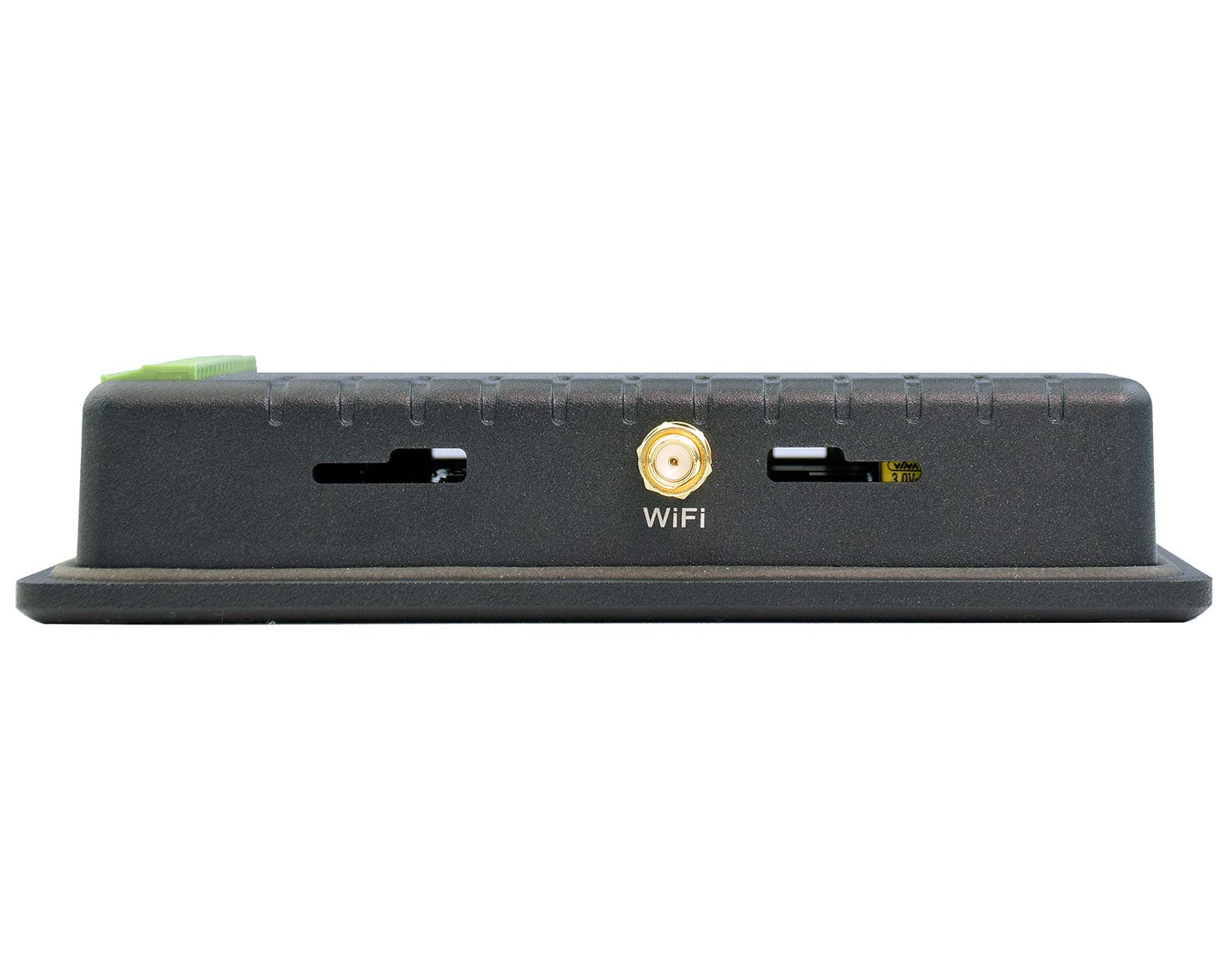

- WiFi/BT
- YES
- 4G
- Not supported
- PoE
- Not supported
- Audio
- 3.5mm Audio In/Out Connector; Internal 2W Speaker
- Buzzer
- YES
- RTC
- High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional).

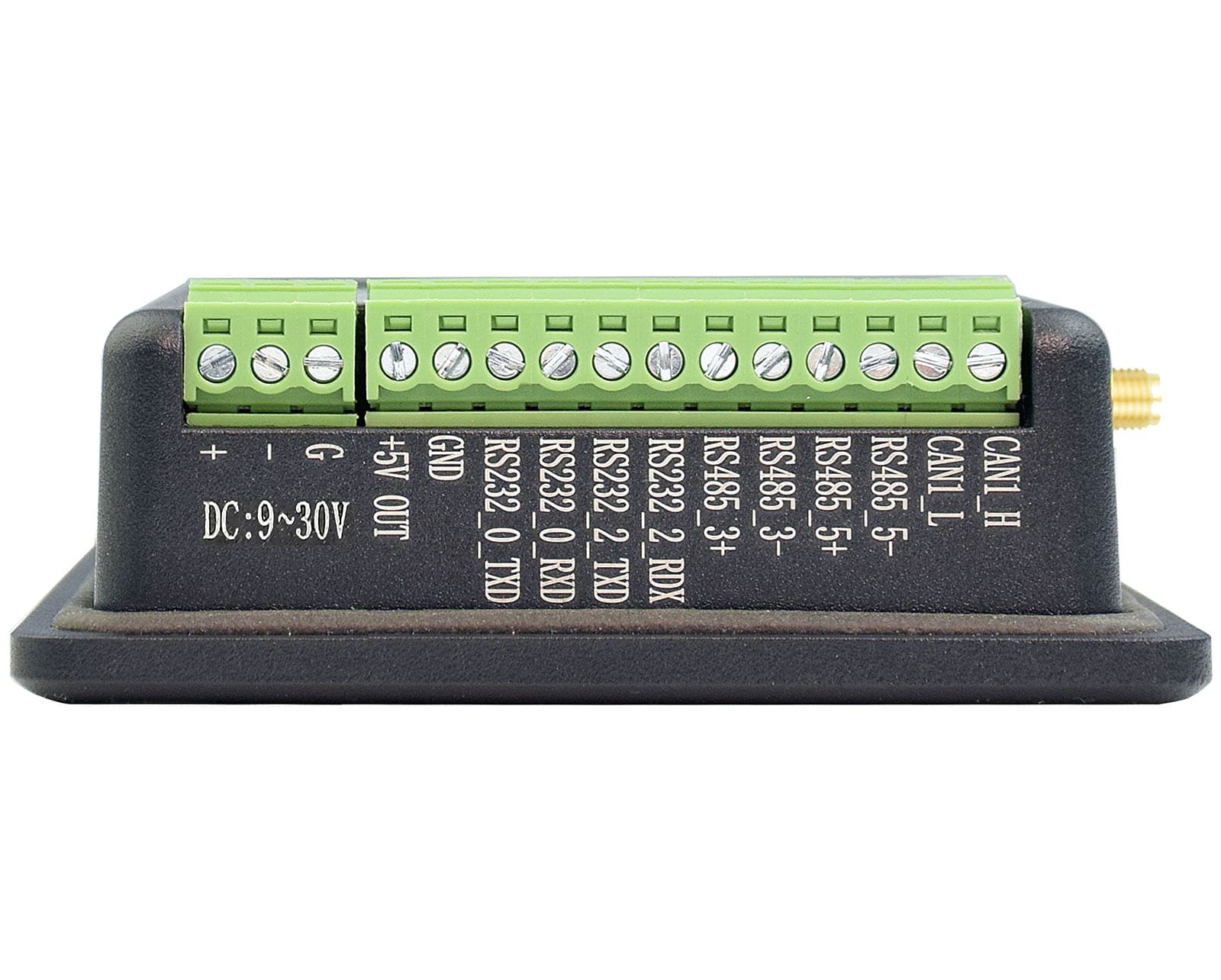

- Power Input
- 9-30V DC
- Power Consumption
- 5.4W Max
- Working Temperature
- -20℃ ~ 60℃
- Operating System
- Android; Buildroot; Debian; Ubuntu
- Mounting Method
- VESA, PANEL
