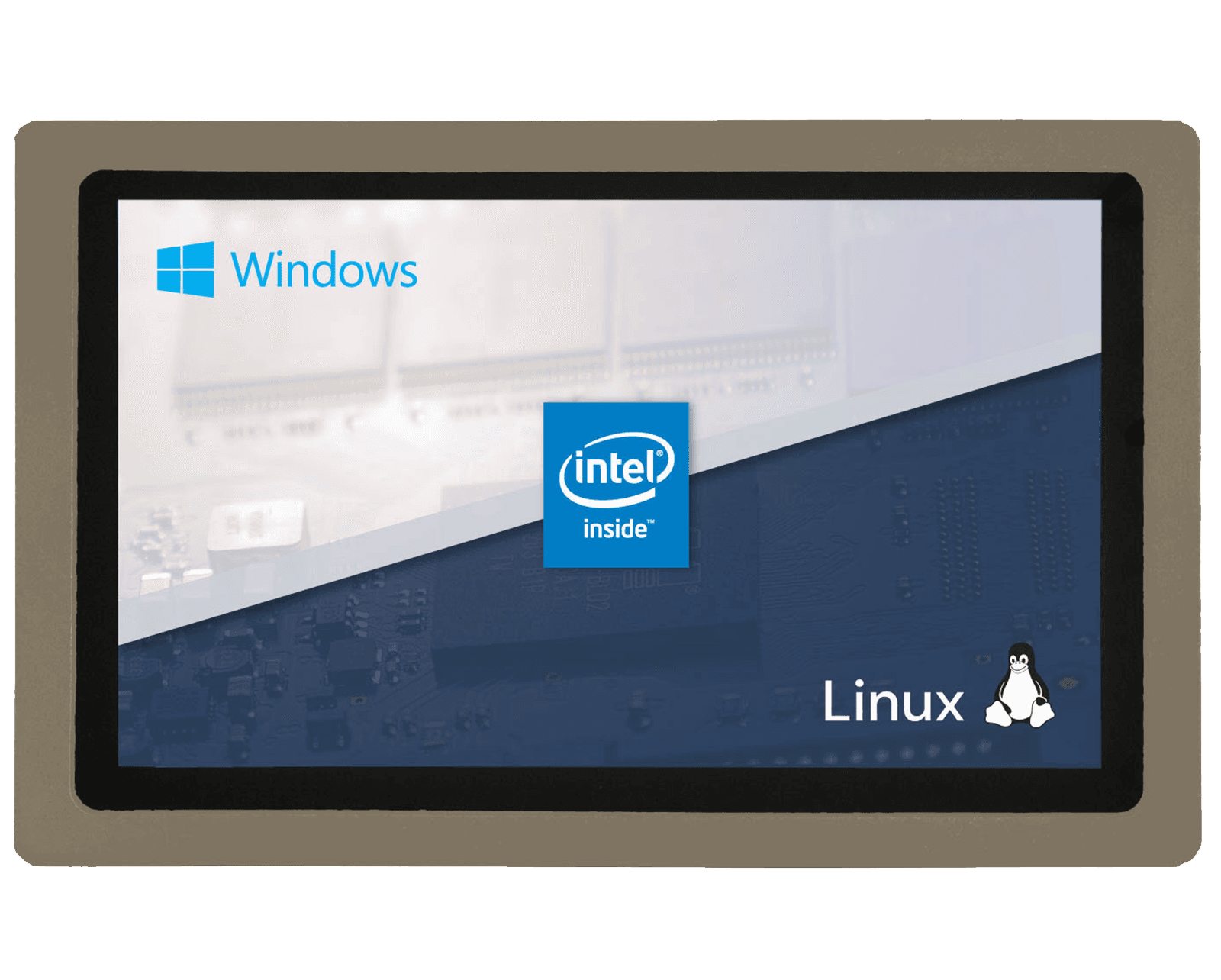

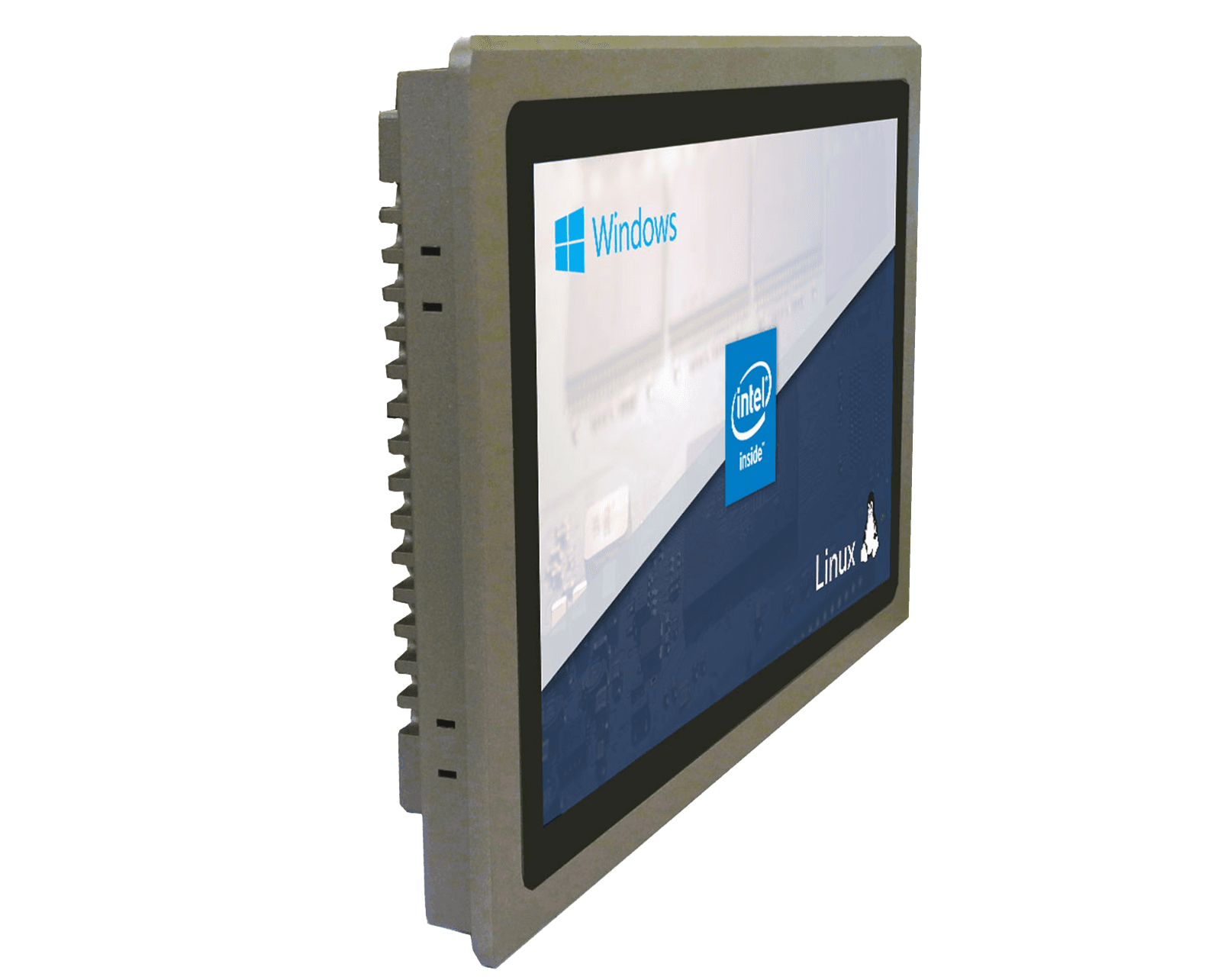

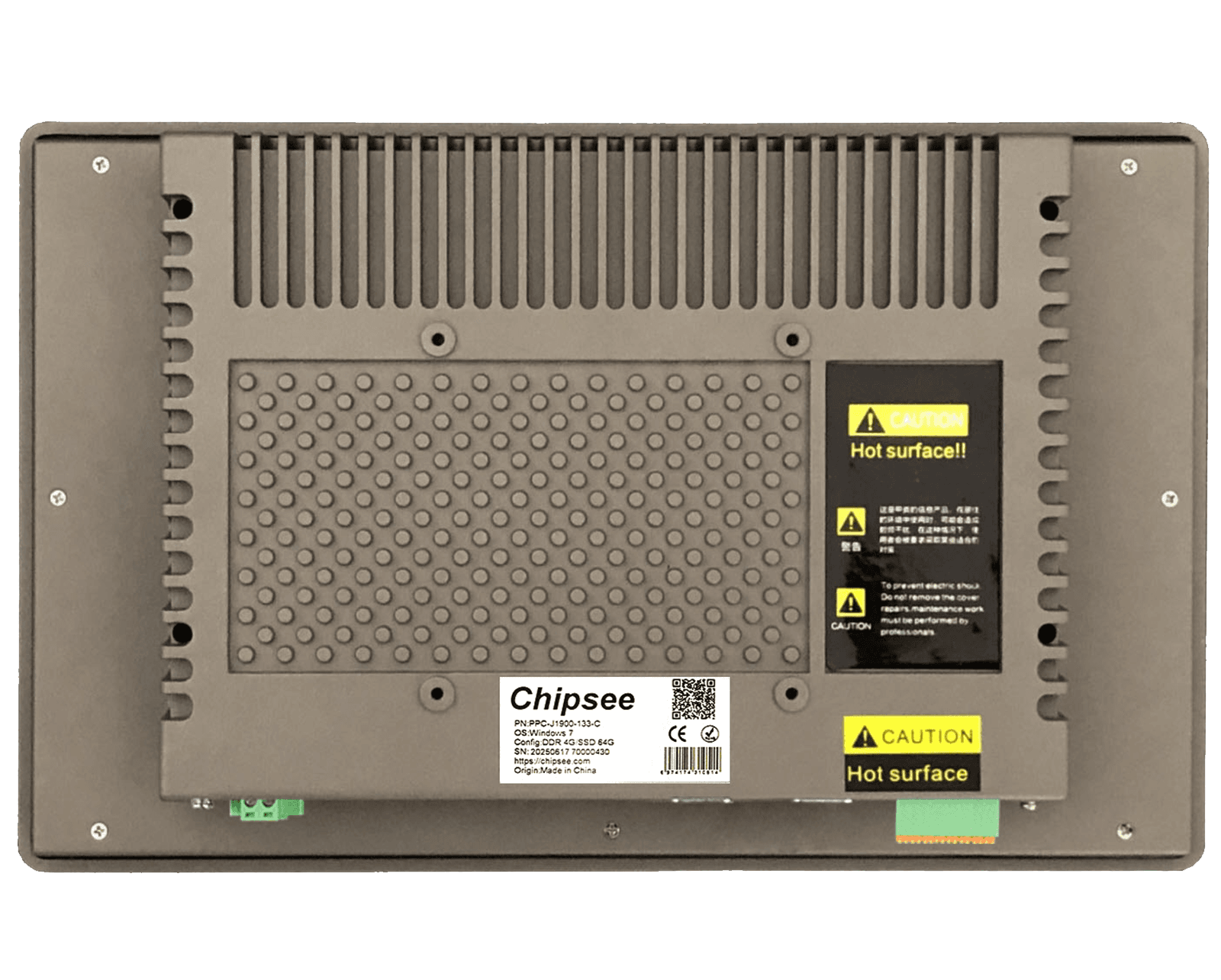

The PPC-J1900-133-C is a rugged, high-quality 13.3” industrial panel PC designed for a wide range of industrial applications, including automation, HMI, control systems, and machine monitoring. With a durable magnesium-aluminum alloy enclosure and a capacitive touch screen, this panel PC is built for long-term reliability in demanding environments. At the heart of the system is the Intel® Celeron® J1900 quad-core processor, delivering dependable performance with low power consumption. The 13.3” display offers a resolution of 1920 × 1080, while the multi-point capacitive touchscreen enables intuitive and precise operation, ideal for applications where responsiveness and durability are essential. This fanless, IP65-compliant panel PC is a reliable and flexible solution for system integrators and OEMs looking for a stable, industrial-grade computing platform.
Specifications
- Net weight
- 3000 g
- Form-factor
- Panel
- CPU
- INTEL: Celeron J1900
- GPU
- Intel HD Integrated Graphics
- RAM
- 4GB DDR3
- Storage
- Default mSATA 128GB SSD, supports 256/512GB
- Display size
- 13.3″
- Display resolution
- 1920*1080
- Brightness
- 300 NIT
- Touch Screen
- Capacitive
- WiFi/BT
- Optional
- 4G
- Optional; the module can be purchased from other manufacturers or retailers

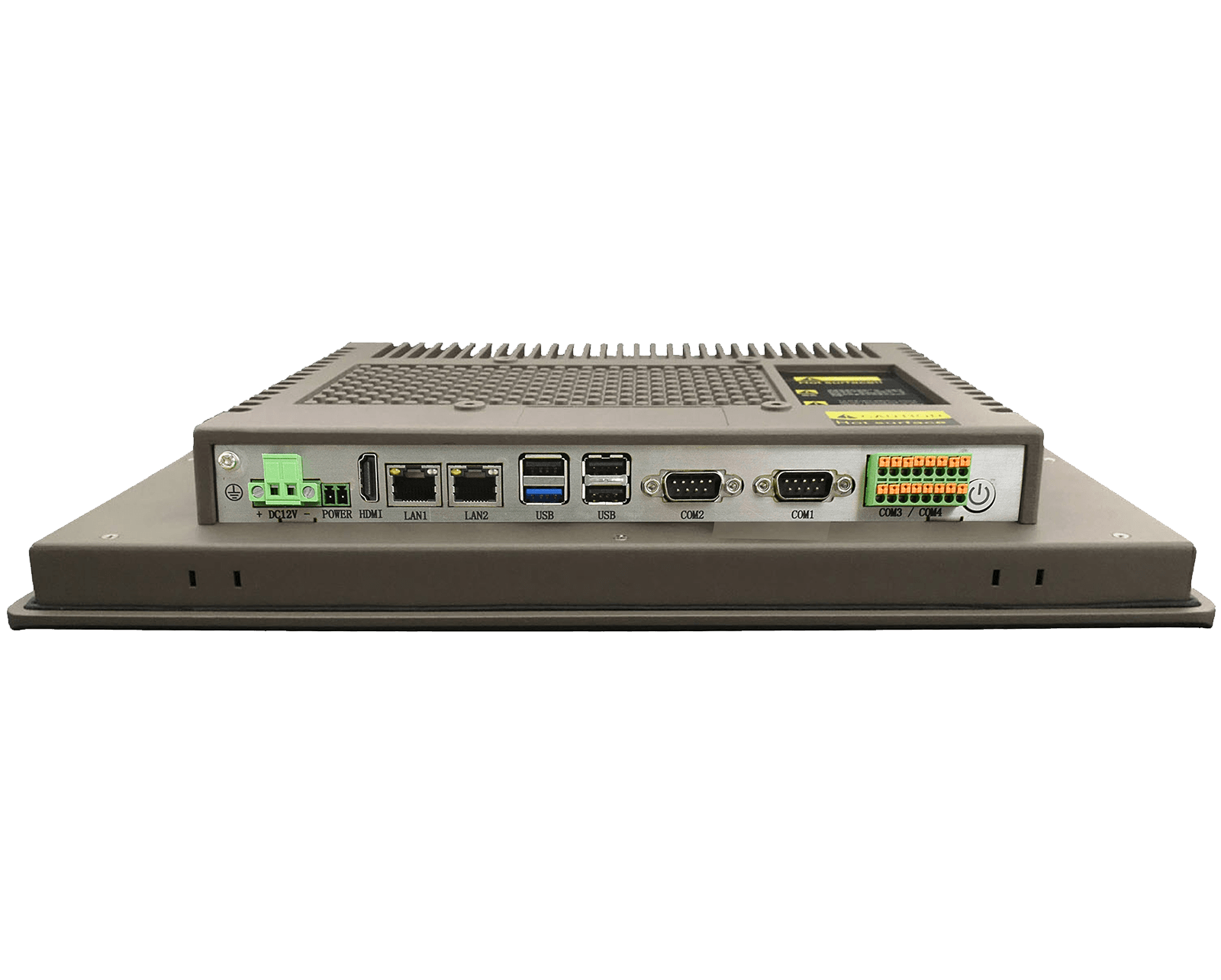

- Ethernet
- 2 x RJ45, 1Gbps
- mini-PCIe
- 1 x mini PCIe
- USB
- 1x USB 3.0 HOST; 3x USB 2.0 HOST
- RS232
- 4 x RS232
- RS485
- 2 x RS485
- HDMI
- 1x HDMI
- GPIO
- Not supported
- VGA
- Not supported
- Power Input
- 12V DC
- Power Consumption
- 22W
- Working Temperature
- (No condensation); 0°C to +60°C
- Storage Temperature
- -20°C to 75°C; (No condensation)
- Operating System
- Ubuntu; Windows 10; Windows 7; Windows 8
- Mounting Method
- VESA, PANEL
