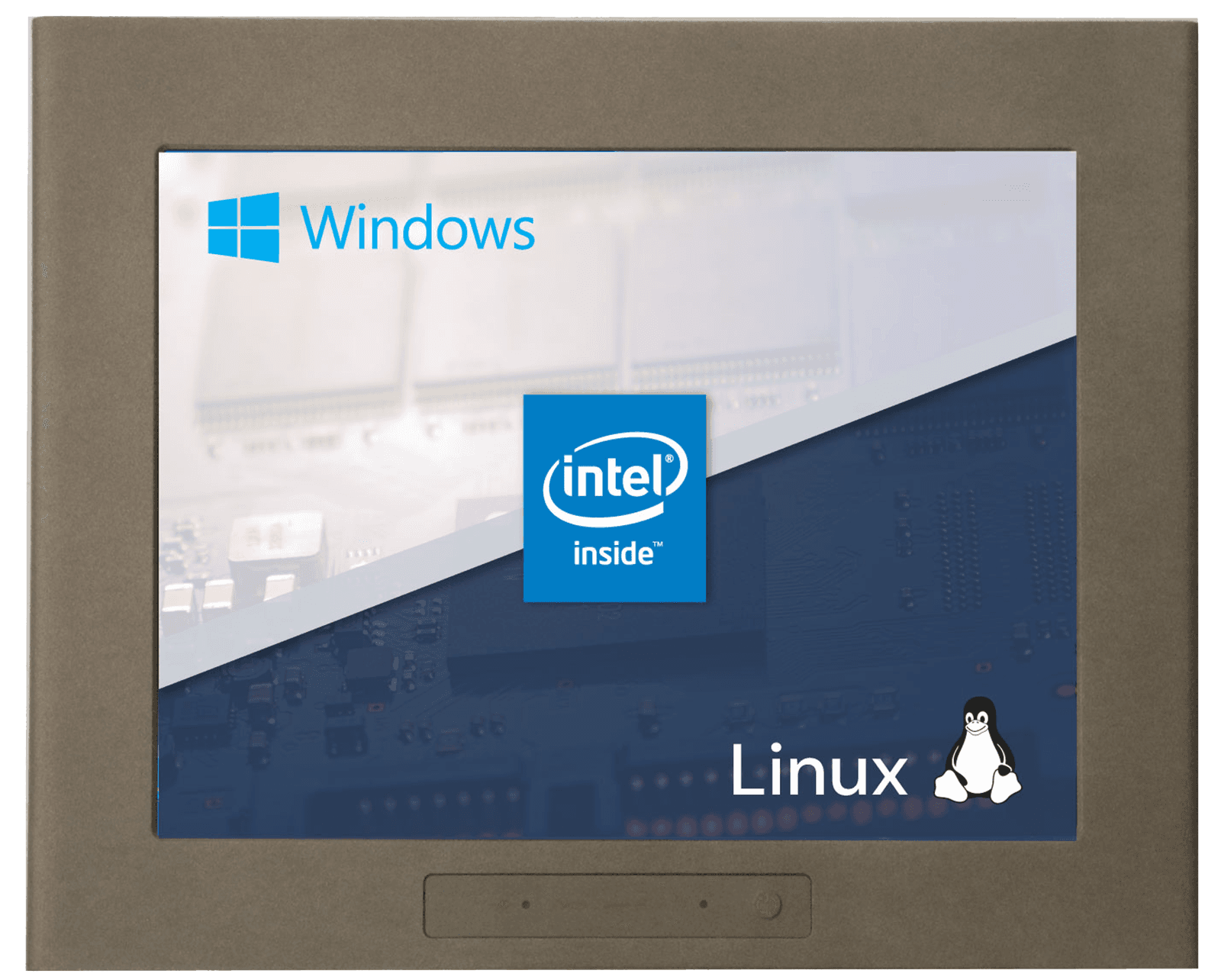

The PPC-J1900-121-R is a 12.1” industrial panel PC designed for reliable performance in demanding industrial environments. With a rugged fanless design, IP65-compliant front panel, and a resistive touch screen, it offers dependable operation in harsh conditions where dust, moisture, and temperature variations are common. Powered by the Intel® Celeron® J1900 quad-core processor, this industrial PC delivers efficient processing power and low energy consumption. The 1024 x 768 resolution display paired with a five-wire resistive touchscreen allows for accurate control even when using gloves or styluses—ideal for factory floors, outdoor systems, and embedded applications. Designed for HMI, automation, CNC, and process control applications, this panel PC combines industrial-grade durability with powerful connectivity and long-term reliability.
Specifications
- Net weight
- 3000 g
- Form-factor
- Panel
- CPU
- INTEL: Celeron J1900
- GPU
- 512MB shared memory; Intel HD Integrated Graphics
- RAM
- 4GB DDR3
- Storage
- Default mSATA 128GB SSD, supports 256/512GB
- Display size
- 12.1"
- Display resolution
- 1024*768
- Brightness
- 350 NIT
- Touch Screen
- Resistive
- WiFi/BT
- Optional
- 4G
- Optional

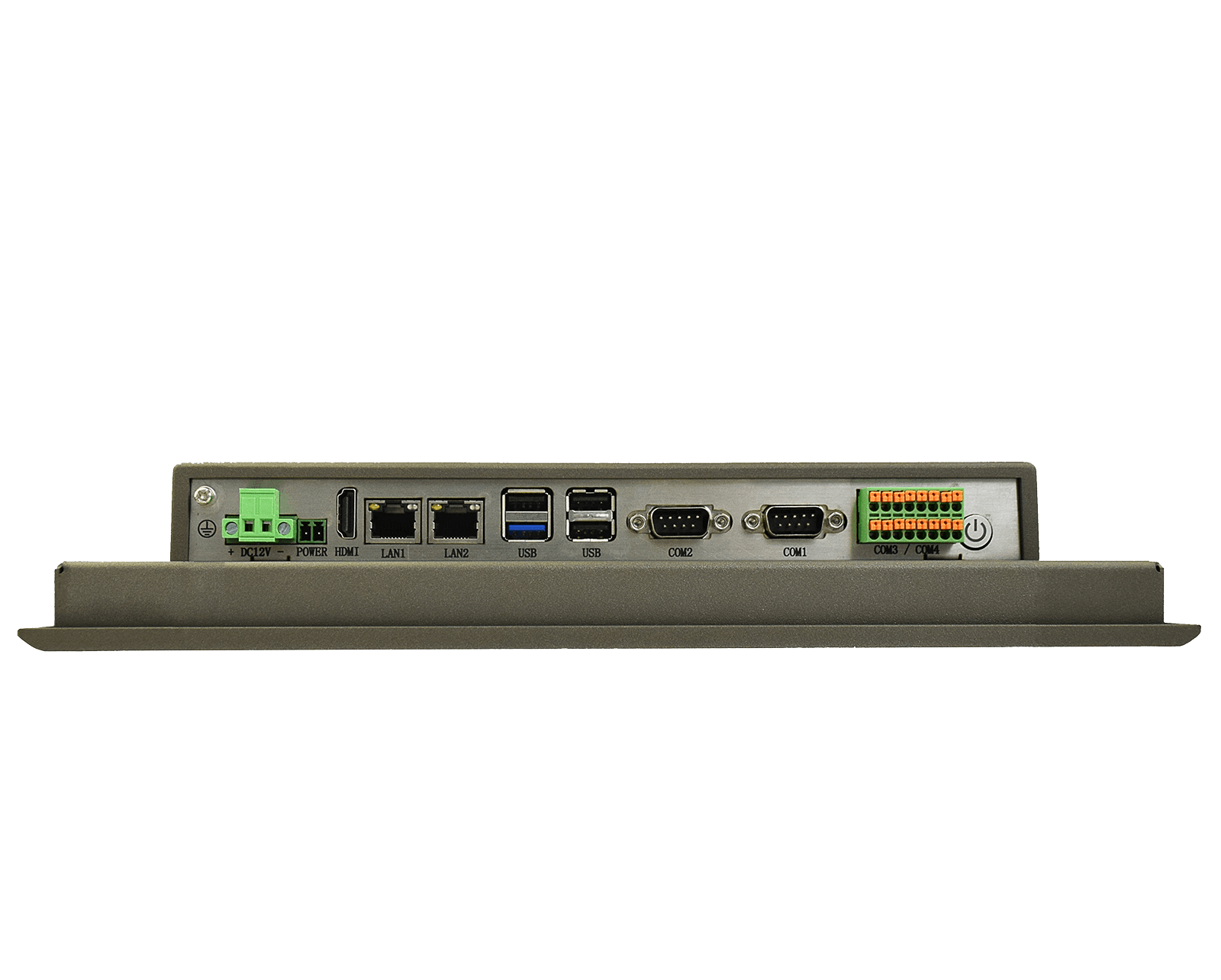

- Ethernet
- 2 x RJ45, 1Gbps
- mini-PCIe
- 1 x mini PCIe
- USB
- 1x USB 3.0 HOST; 3x USB 2.0 HOST
- RS232
- 4 x RS232
- RS485
- 2x RS485
- HDMI
- 1x HDMI
- GPIO
- Not supported
- VGA
- Not supported
- Power Input
- 12V DC
- Power Consumption
- 20.5W
- Working Temperature
- (No condensation); 0°C to +60°C
- Storage Temperature
- -20°C to 75°C; (No condensation)
- Operating System
- Ubuntu; Windows 10; Windows 7; Windows 8
- Mounting Method
- VESA, PANEL
