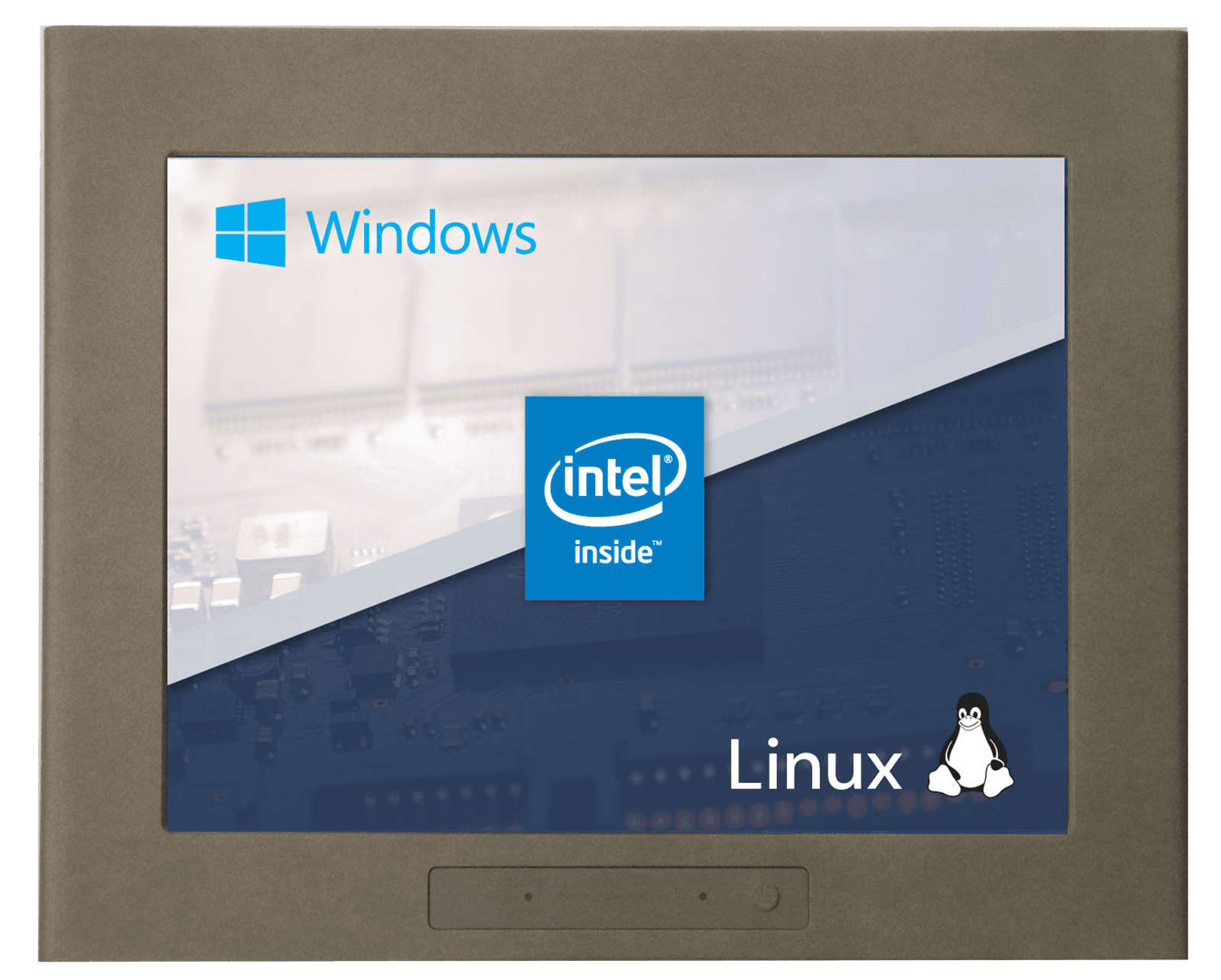

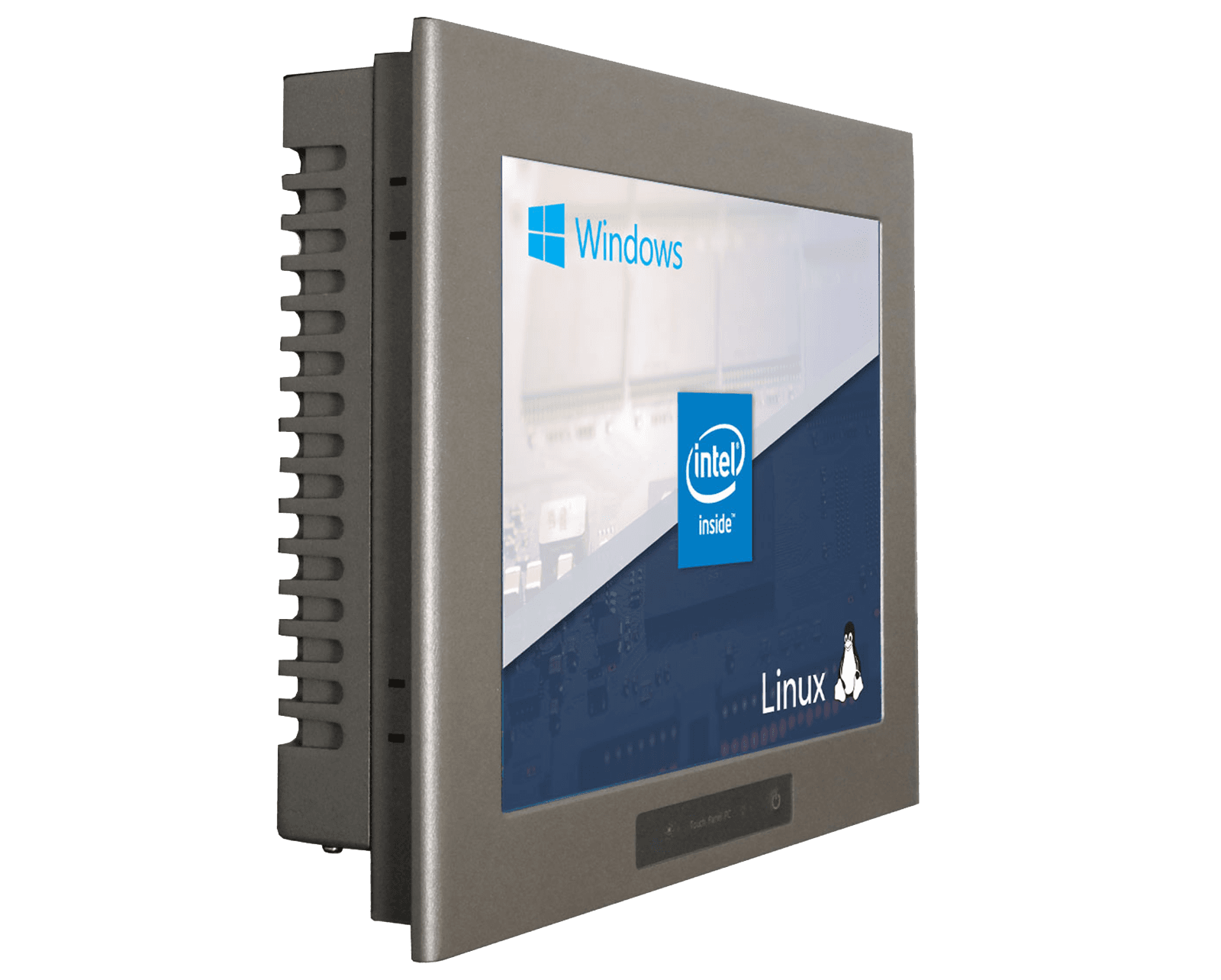

The PPC-J1900-104-R is a rugged, high-quality 10.4” industrial panel PC designed for demanding applications in industrial automation, machine control, HMI, and more. Built with a durable magnesium-aluminum alloy housing and a resistive touch screen, this panel PC offers long-term reliability in harsh environments, including dusty or high-temperature settings. At the core of the system is the Intel® Celeron® J1900 quad-core processor, delivering stable computing power with low power consumption. The 10.4” display features a resolution of 1024 x 768, while the resistive touchscreen enables flexible operation using gloves or styluses, making it ideal for environments where precision and durability matter. This fanless, IP65-compliant panel PC is a robust and flexible solution for system integrators and industrial environments where uptime, reliability, and expandability are essential.
Specifications
- Net weight
- 2300 g
- Form-factor
- Panel
- CPU
- INTEL: Celeron J1900
- GPU
- 512MB shared memory; Intel HD Integrated Graphics
- RAM
- 4GB DDR3
- Storage
- Default mSATA 128GB SSD, supports 256/512GB
- Display size
- 10.4"
- Display resolution
- 1024*768
- Brightness
- 400 NIT
- Touch Screen
- Resistive
- WiFi/BT
- Optional
- 4G
- Optional

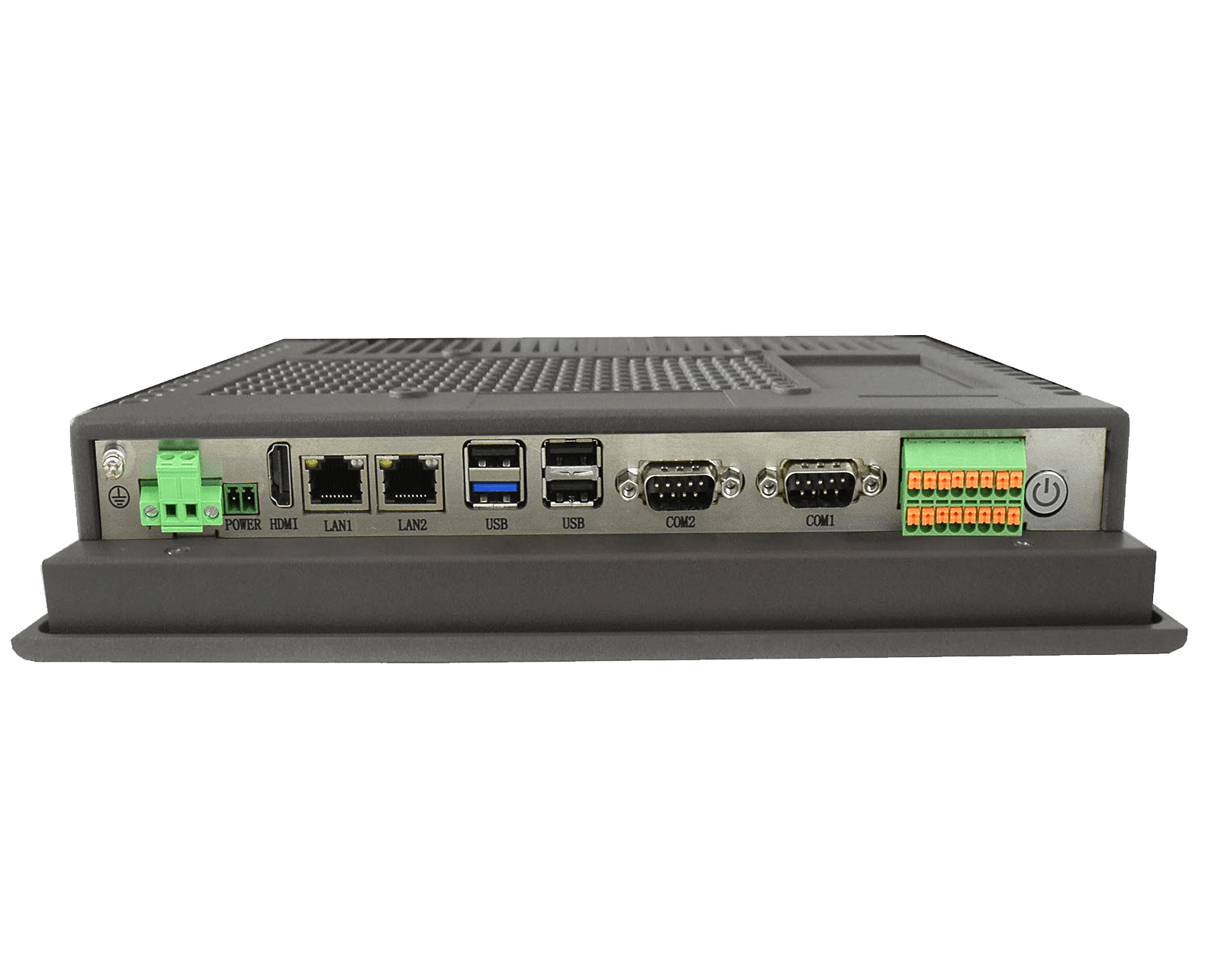

- Ethernet
- 2 x RJ45, 1Gbps
- USB
- 1x USB 3.0 HOST; 3x USB 2.0 HOST
- RS232
- 4 x RS232
- RS485
- 2x RS485
- HDMI
- 1x HDMI
- GPIO
- Not supported
- VGA
- Not supported
- Power Input
- 12V DC
- Power Consumption
- 17.4W
- Working Temperature
- (No condensation); 0°C to +60°C
- Storage Temperature
- -20°C to 75°C; (No condensation)
- Operating System
- Ubuntu; Windows 10; Windows 7; Windows 8
- Mounting Method
- VESA, PANEL
