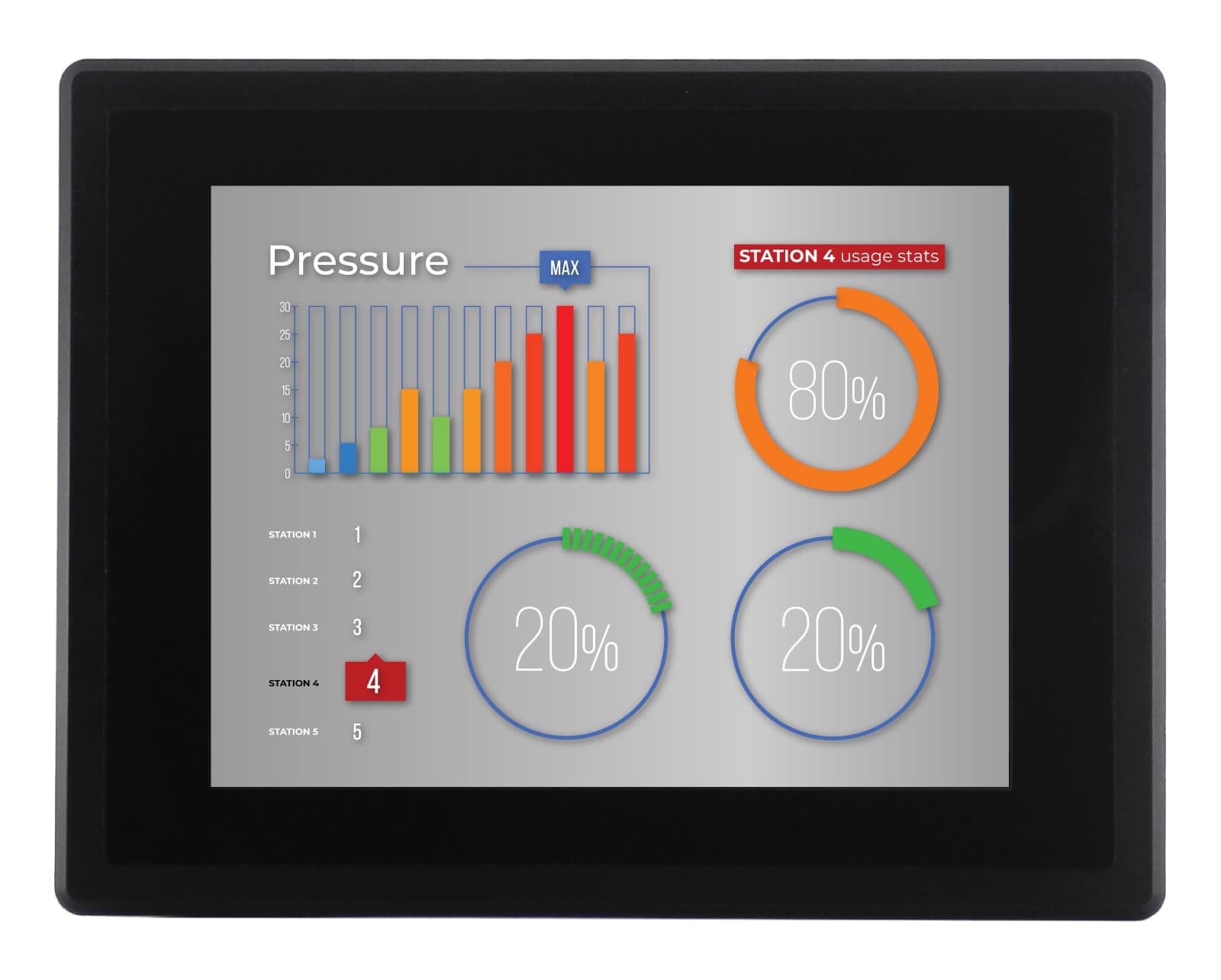

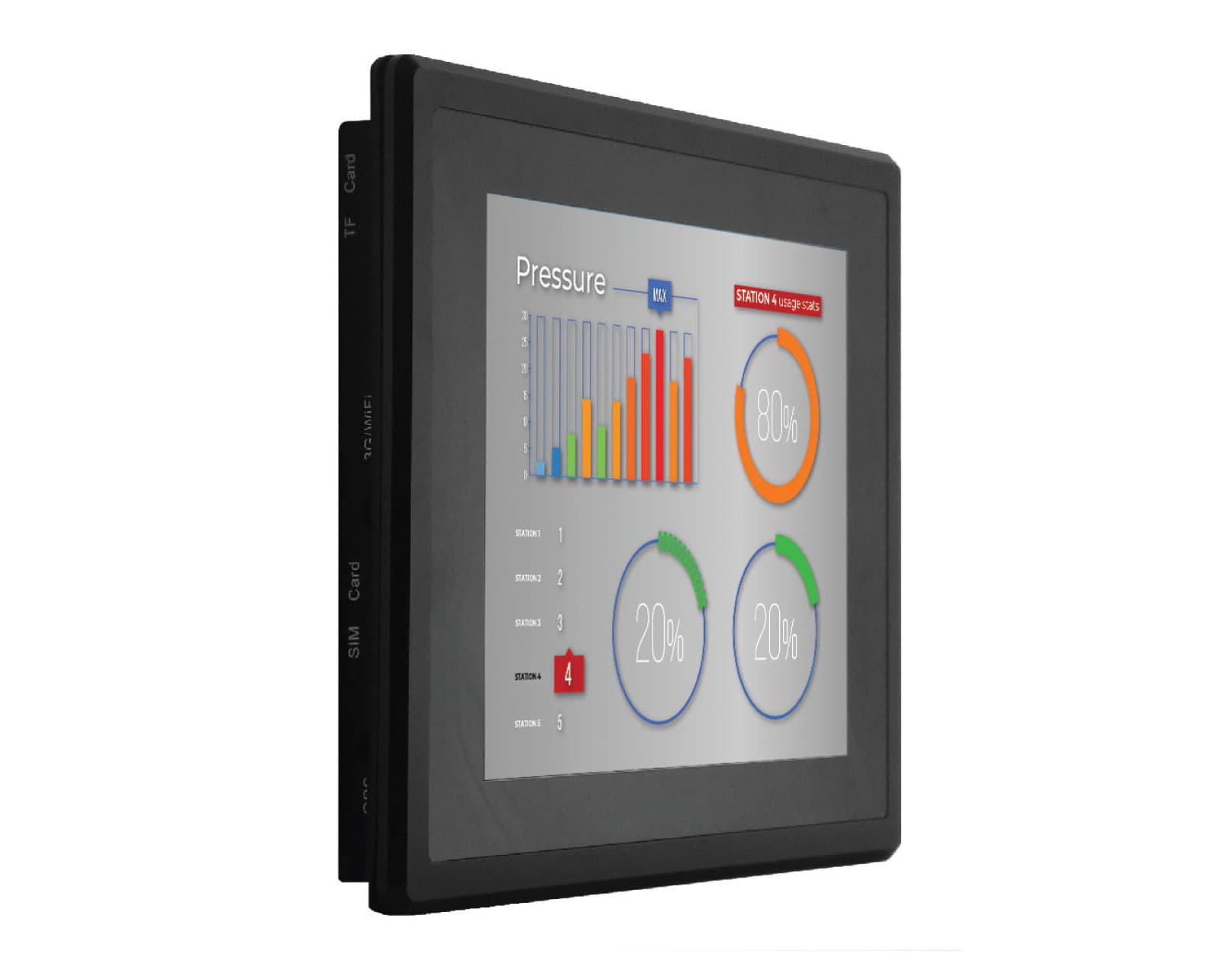

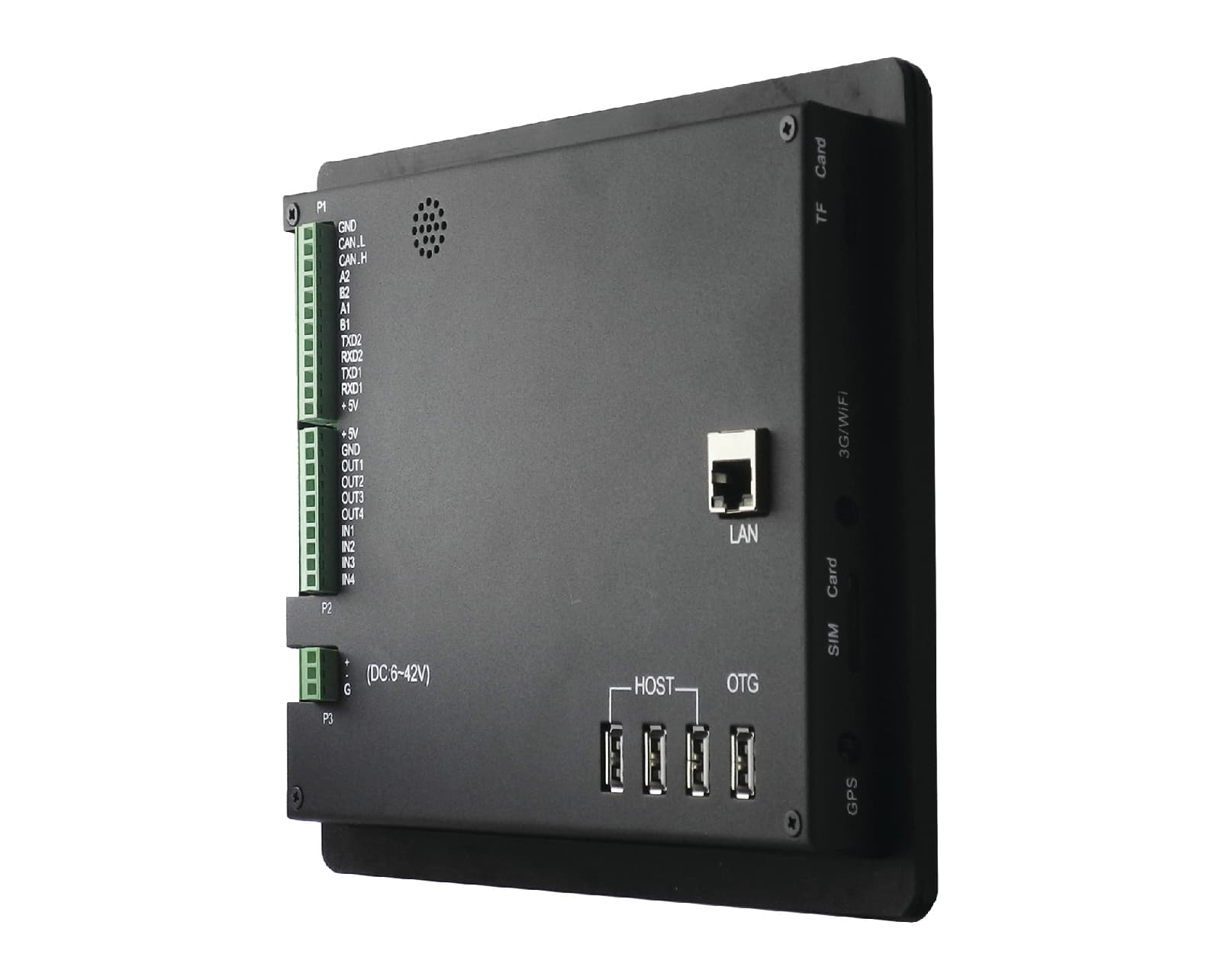

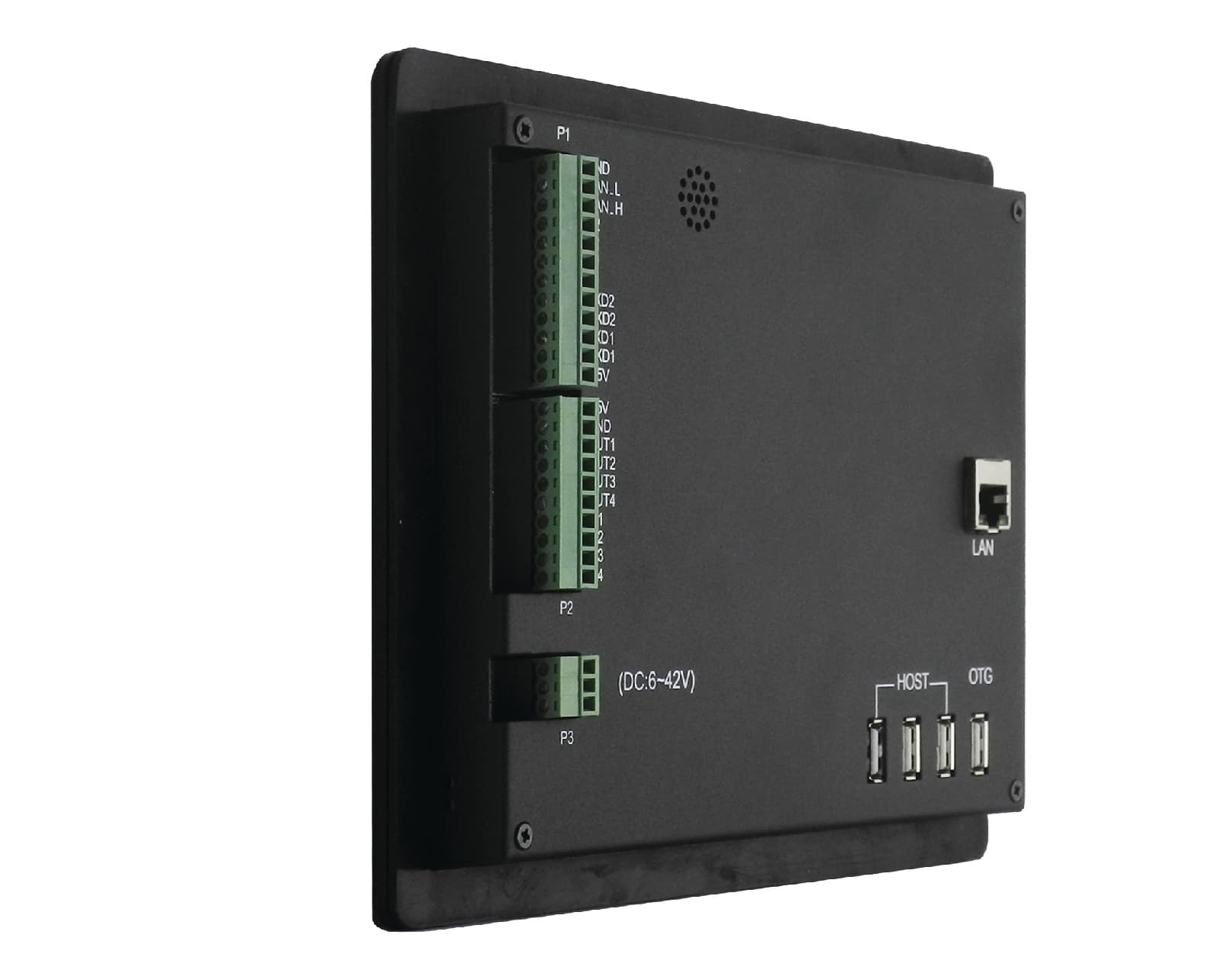

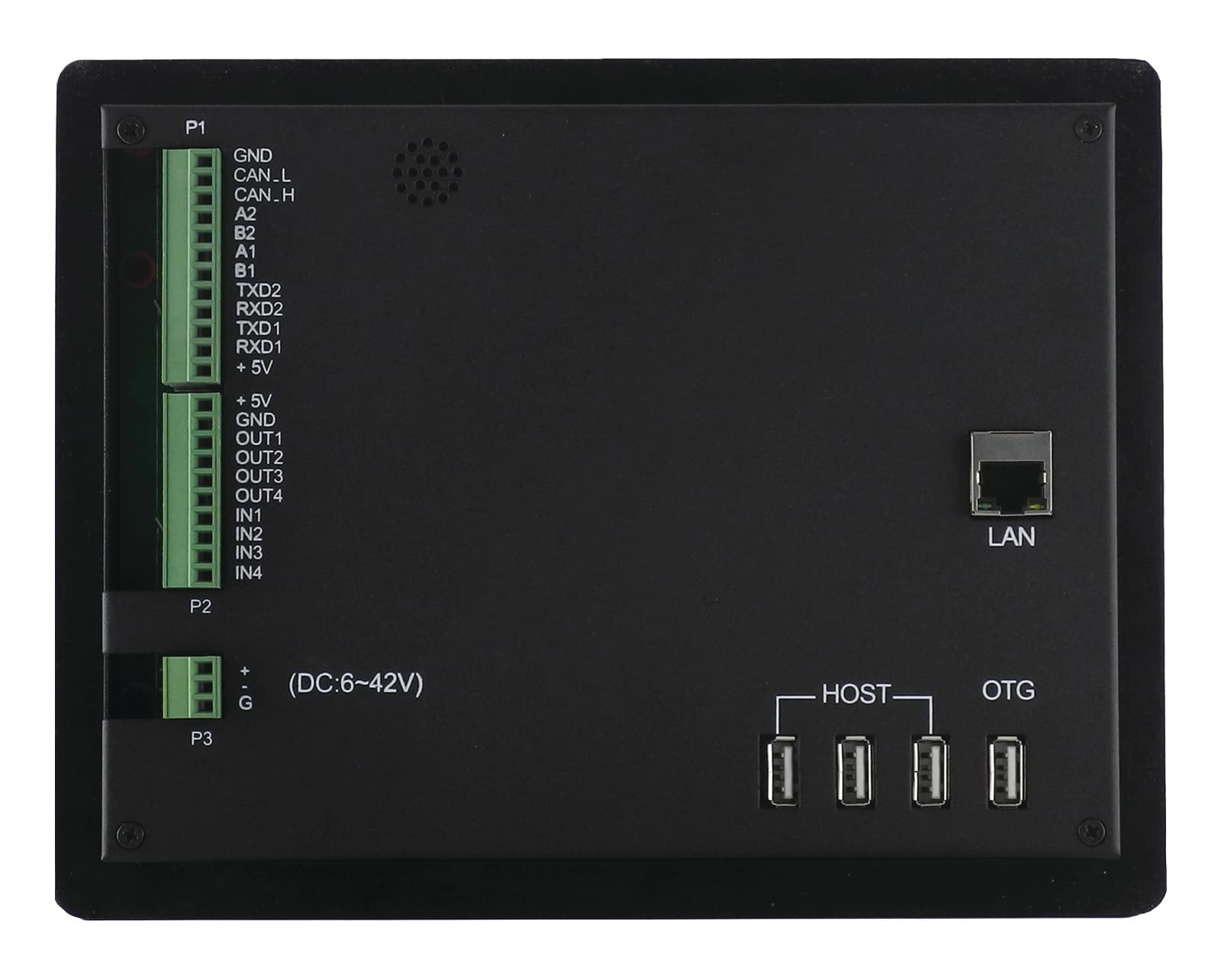

The PPC-A8-080-R (PN CS80600T080P) is a high-quality industrial panel computer, that features an 8-inch LCD with a resistive touchscreen, an ARM Cortex-A8 processor with 512MB DDR3 RAM and 4GB eMMC Flash, 100Mb Ethernet, 4 USB 2.0 ports, 1 CAN port, 2 RS232, 2 RS485 ports, as well as a 3.5mm audio connector.
Specifications
- SKU
- CS80600T080P
- Net weight
- 1070 g
- Form-factor
- Panel
- Display Size (inch.)
- 8.0"
- CPU
- ARM: TI AM3354
- RAM
- 512MB
- FLASH
- 4GB
- Display resolution
- 800*600
- Brightness
- 250 NIT
- WiFi/BT
- Optional
- Ethernet
- 1x LAN 100M
- USB
- 4x USB 2.0 HOST; Only 1 USB 2.0 can be customized to HOST or SLAVE
- GPIO
- 4 x Input GPIO; 4 x Output GPIO
- RS485
- 2x RS485
- CAN
- 1 x CAN by default (can be changed to 2 x CAN)
- RS232
- 2 x RS232
- GPS
- WCDMA + GPS
- Optocoupler
- Optocoupler Isolated
- Buzzer
- Onboard, driven by GPIO
- Power Consumption
- 6W
- Certification
- CE; Front Panel IP65
- Operating System
- Android; Angstrom; Debian; Linux
- External storage
- TF (microSD) Card Slot
- Touch Screen
- Resistive
- Audio
- Internal 2W Speaker
- Power Input
- 6~42V DC
- Working Temperature
- -20°C ~ 70°C.
- Mounting Method
- Panel Mounting
