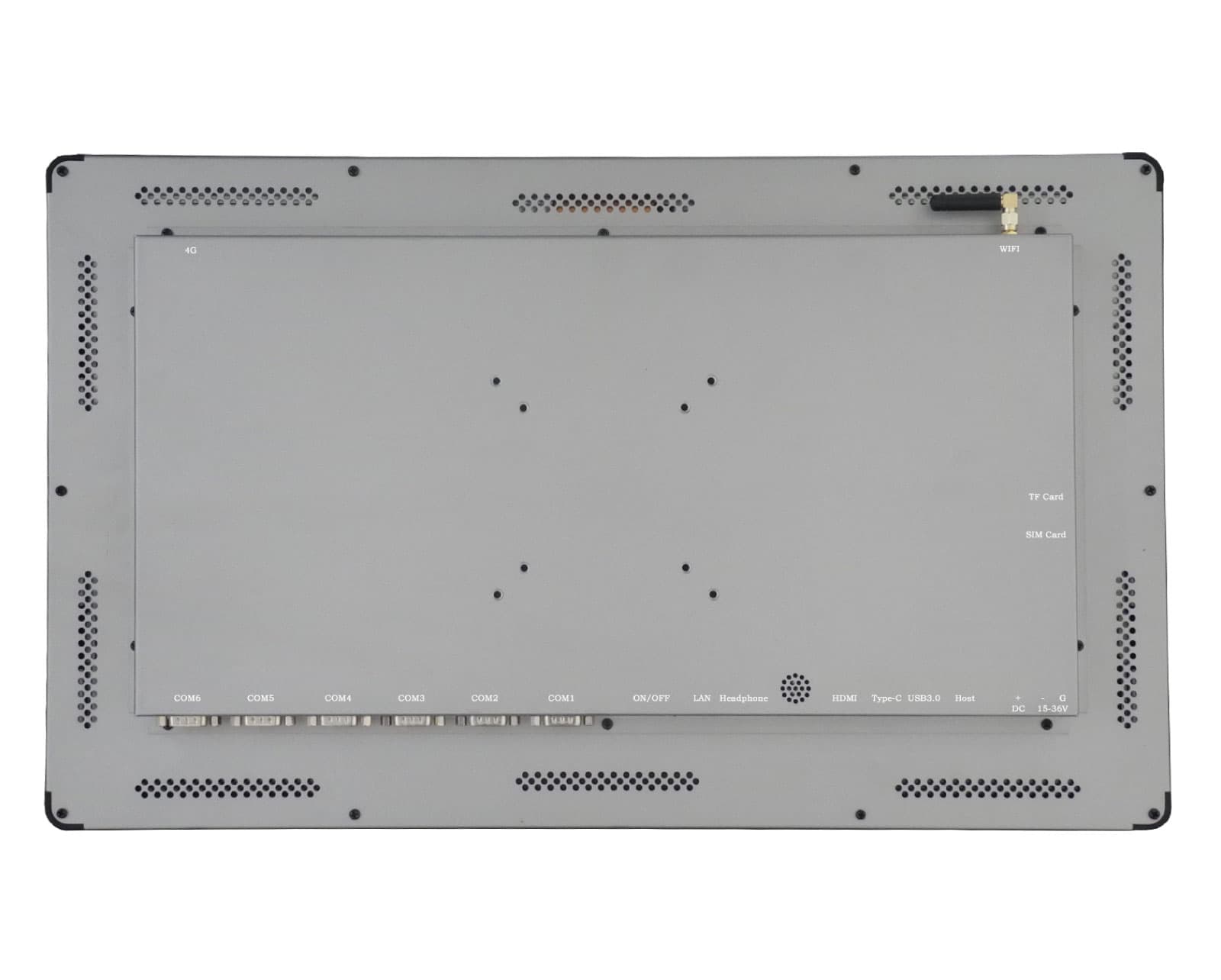

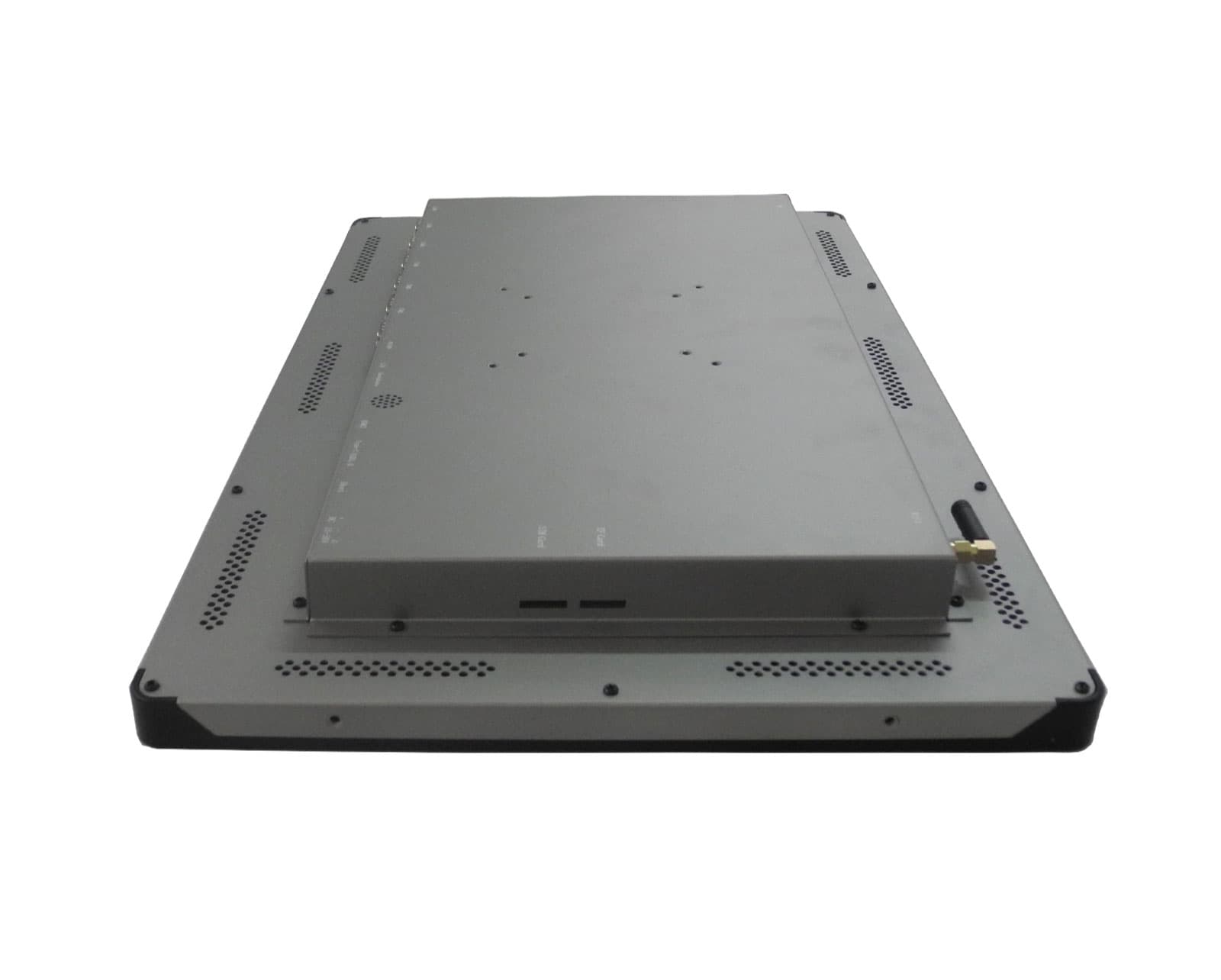

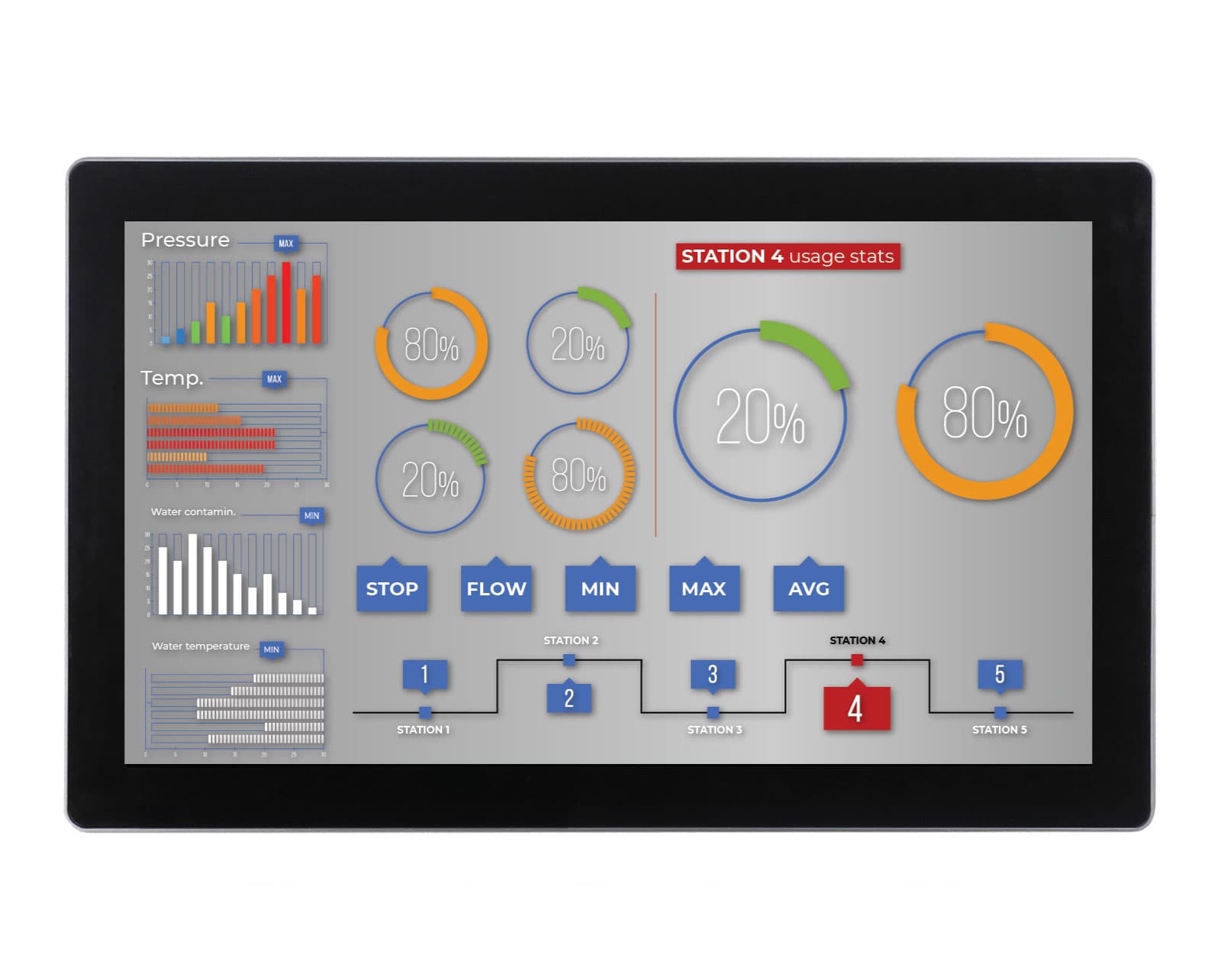

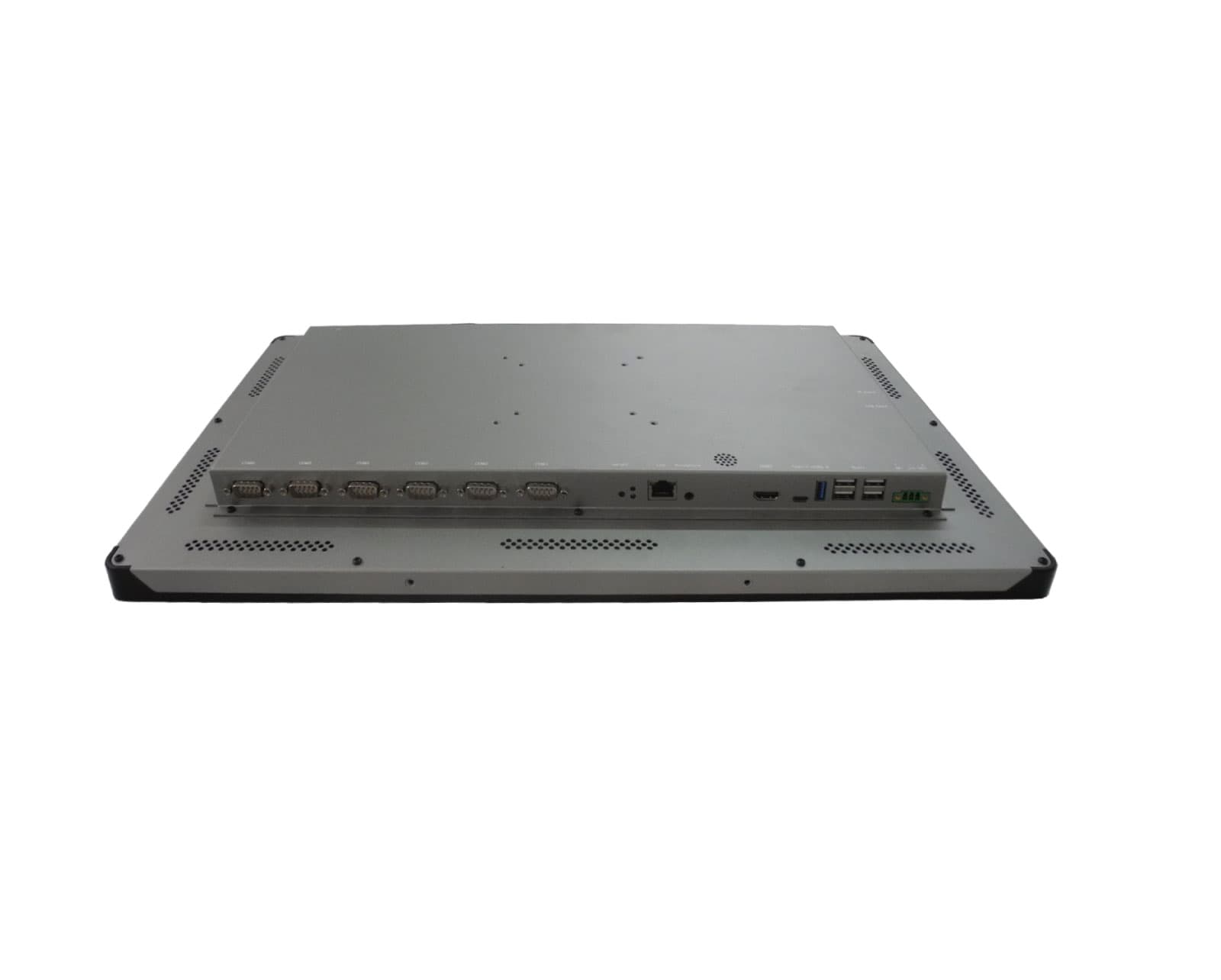

PPC-A72-215-C is a 21.5” industrial panel PC powered by ARM dual Cortex-A72 (1.8GHz) and Quad Cortex-A53 (1.4GHz) processor.
Specifications
- SKU
- CS19108R215P
- Net weight
- 6000 g
- Form-factor
- Panel
- Display size
- 21.5″
- Display resolution
- 1920*1080
- Brightness
- 250 NIT
- Touch Screen
- Capacitive
- CPU
- ARM: Rockchip RK3399
- RAM
- 4GB DDR3
- FLASH
- 16GB
- External storage
- TF (microSD) Card Slot
- Bluetooth
- Onboard
- WiFi/BT
- Onboard WiFi
- 4G
- Optional
- HDMI
- 1x HDMI
- Ethernet
- 1x RJ45, 1 Gbps
- USB
- 1x USB 3.0 HOST; 1x USB Type-C; 4x USB 2.0 HOST
- GPIO
- Optional
- RS232+RS485
- 7 Channels (4 x RS485 at most, 1 debug port)
- Buzzer
- Onboard, driven by GPIO
- Power Consumption
- 15W
- Power Input
- 15~36V DC
- Working Temperature
- 0℃~70℃
- Operating System
- Android; Buildroot; Debian
- Mounting Method
- VESA & REAR Mounting
- GTIN
- 6974174310361
