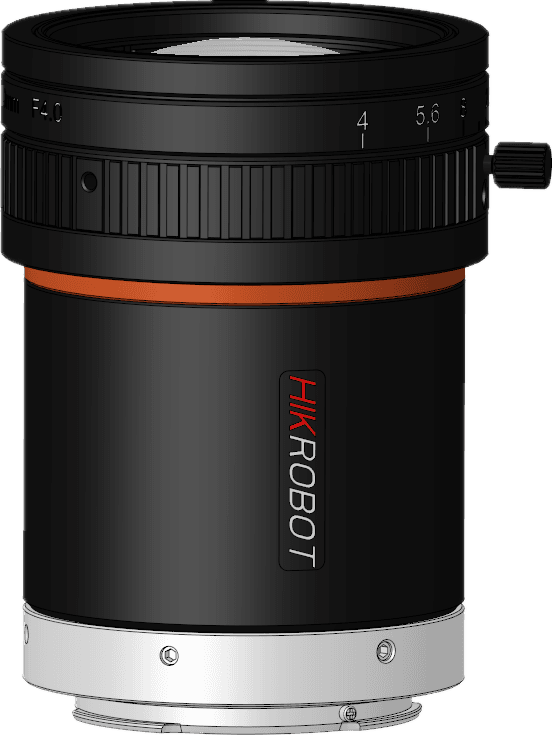

80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount

Name: 80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount
Brand: Hikrobot
SKU: MVL-LF8040M-F

MVL-LF8040M-FHikrobot

Request a quote Datasheet PDF CAD drawing

Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices. The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.

Model

Product Model: MVL-LF8040M-F
Type: 80mm, F4.0, Full Frame φ43.2mm, 100MP Lens, F-Mount

Performance

Focal length: 80 mm
F-number: F4.0 to F22
Image size: Ø56 mm
Optical distortion: 0.12%
Magnification range: 0.4x to 0.01x
Working distance range: 235 mm to inf mm

Mechanical

Iris control: Manual
Focus control: Manual
Filter thread: M52 × 0.75
Mount: F-moun
Flange back length: 46.5 mm
Dimension: Ø63 mm × 120.5 mm (Ø2.48'' × 44.74'')
Weight: 601.0 g (1.32 lb.)
Temperature: –10 °C to 50 °C (14 °F to 122 °F)

General

Certification: RoHS 2.0

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmFocal lengthmmPixels acrosspx

Field of view

30 mm

Magnification: 0.27×

Resolution per pixel

0.0123 mm/px

Smallest detectable feature: 0.0368 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
