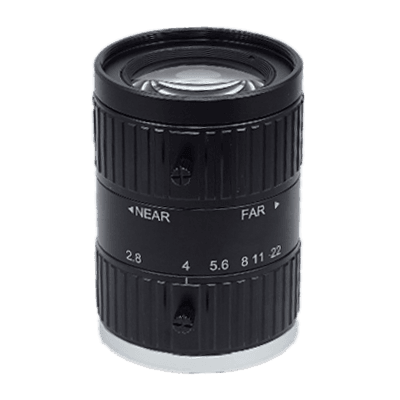

Lenses — 75 mm, C-mount
Model
- Product Model
- MVL-KF7528M-12MP
- Type
- 75mm, F2.8, 1", 12MP Lens, C-Mount
Performance
- Focal length
- 75 mm
- F-number
- F2.8 to F22
- Image size
- Ø16 mm (1")
- Optical distortion
- 0.75%
- Minimum object distance
- 0.5 m
- Field of View
- D (15.86 mm): 12.2° H (12.45 mm): 9.8° V (9.83 mm): 7.3°
Mechanical
- Iris control
- Manual
- Focus control
- Manual
- Filter thread
- M39 × 0.5
- Mount
- C-mount
- Flange back length
- 17.526 mm
- Dimension
- Ø42 mm × 60.3 mm (Ø1.7'' × 2.4'')
- Weight
- 187 g (0.4 lb.)
- Temperature
- –10 °C to 50 °C (14 °F to 122 °F)
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
32 mm
Magnification: 0.25×
Resolution per pixel
0.0131 mm/px
Smallest detectable feature: 0.0392 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
