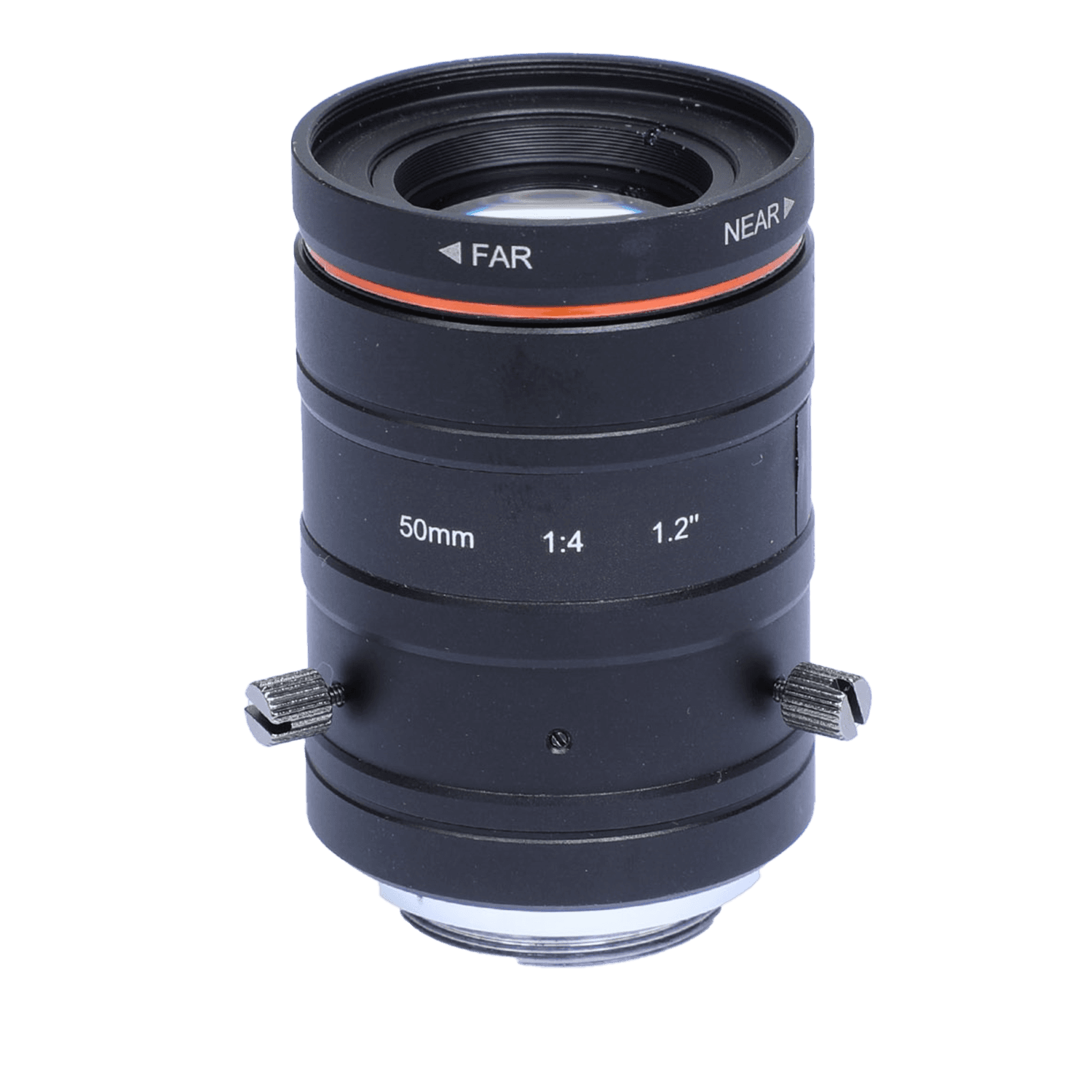

50mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
MVL-KF5040-25MPHikrobot
Lenses — 50 mm, C-mount
Model
- Product Model
- MVL-KF5040-25MP
- Type
- 50mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
Performance
- Focal length
- 50 mm
- F-number
- F4.0
- Image size
- Ø19.3 mm (1.2")
- Distortion
- 0.05%
- Minimum object distance
- 0.15 m
- Field of view
- D (19.3 mm): 20.6° H (14.6 mm): 15.7° V (12.63 mm): 13.6°
Mechanical
- Iris control
- Fixed
- Focus control
- Manual
- Filter thread
- M35.5 × P0.5
- Mount
- C-mount
- Flange back length
- 17.526 mm
- Dimension
- Ø38 mm × 56.53 mm to 67.95 mm (Ø1.5" × 2.2" to 2.7")
- Weight
- 187 g (0.4 lb.)
- Temperature
- –10 °C to 50 °C (14 °F to 122 °F)
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
48 mm
Magnification: 0.17×
Resolution per pixel
0.0196 mm/px
Smallest detectable feature: 0.0588 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
