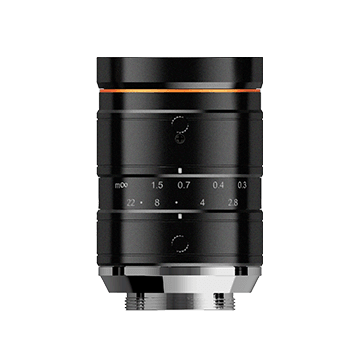

50mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF5028M-12MPEHikrobot
Self-developed FA series lens especially for vision application characteristics, has the design concept of high performance and low cost. The product features high definition, better image center-edge definition consistency, and higher relative illumination to provide better choices. The lens has high resolution and can support a minimum of 2.1μm pixels. It also has excellent image center and edge clarity consistency which can ensure excellent image quality.
Model
- Product Model
- MVL-KF5028M-12MPE
- Type
- 50mm, F2.8, 1.1", 12MP Lens, C-Mount
Performance
- Focal length
- 50 mm
- F-number
- F2.8 to F22
- Image size
- Ø17.6 mm (1.1")
- Distortion
- 0.04%
- Minimum object distance
- 0.3 m
- Field of view
- D (17.52 mm): 19.9° H (14.14 mm): 15.9° V (10.35 mm): 11.9°
Mechanical
- Iris control
- Manual
- Focus control
- Manual
- Filter thread
- M35.5 × 0.5
- Mount
- C-mount
- Flange back length
- 17.526 mm
- Dimension
- Ø38 mm × 53.9 mm (Ø1.5" x 2.1")
- Weight
- 121 g (0.3 lb.)
- Temperature
- –10°C to 50°C (14 °F to 122 °F)
General
- Certification
- RoHS 2.0
Choosing a lens
Choosing a lens
Solve for
Field of view
48 mm
Magnification: 0.17×
Resolution per pixel
0.0196 mm/px
Smallest detectable feature: 0.0588 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
