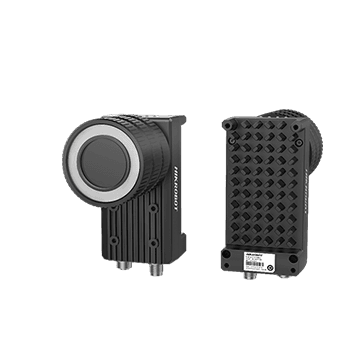

20MP Logistic Code Reader
Image-based high-resolution barcode reader ID6000 is specialized for the logistics industry. ID6000 has especially developed in algorithm development to cope with various complex logistics code reading application scenarios. Based on high-performance multi-core deep learning processor, ID6000 series has specially optimized decoding algorithm and high decoding frames rate. It can identify complex codes in common environment such as stained, defective and poorly printing codes. ID6000 series can be matched with various types of external integrated light sources, combined with high-performance decoding algorithms, to achieve a super-large depth of field effect of over 700mm, can cover packages under 700mm through 1 camera.
Model
- Product Model
- MV-ID6200M-00C-NNG
- Type
- 20MP Logistic Code Reader
Performance
- Symbologies
- 1-dimensional codes: Code 39, Code 128, Code 93, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14 2-dimensional codes: QR Code, Data Matrix
- Max. frame rate
- 20 fps
- Max. reading speed
- 60 codes/sec
- Sensor type
- CMOS, rolling shutter
- Pixel size
- 2.4 μm × 2.4 μm
- Sensor size
- 1"
- Sensor size (computed)from resolution × pixel pitch
- 13.06 × 8.76 mm
- Sensor diagonal
- 15.72 mm
- Resolution
- 5440 × 3648
- Exposure time
- 16 μs to 0.5 sec
- Gain
- 0 dB to 40 dB
- Mono/color
- Mono
- Communication protocol
- SmartSDK, TCP Client, TCP Server, Serial, FTP
Electrical feature
- Data interface
- Gigabit Ethernet
- Digital I/O
- 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1.
- Power supply
- 12 VDC to 24 VDC
- Max. power consumption
- 12 W@24 VDC
Mechanical
- Lens mount
- C-mount
- Light source
- Not included
- Lens cap
- Included
- Dimension
- 126 mm × 66 mm × 113.2 mm (5.0" × 2.6" × 4.5")
- Weight
- Approx. 750 g (1.7 lb.)
- Ingress protection
- IP67 ( under proper installation of waterproof lens cap)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
- Humidity
- 20% to 95% RH, non-condensing
General
- Client software
- IDMVS
- Certification
- CE, RoHS
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Cables & Accessories
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 15.72 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
6mm, F1.8, 1.1", 12MP Lens, C-Mount
8mm, F1.4, 1.1", 12MP Lens, C-Mount
8mm, F1.8, 1", 12MP Lens, C-Mount
12mm, F2.4, 1.2", 25MP Lens, C-Mount
12mm, F2.8, 1.1", 12MP Lens, C-Mount
12mm, F2.8, 1.1", 12MP Lens, C-Mount
12mm, F2.0, 4/3", 10MP Lens, C-Mount
16mm, F2.4, 1.2", 25MP Lens, C-Mount
16mm, F2.8, 1.1", 12MP Lens, C-Mount
16mm, F2.8, 1.1", 12MP Lens, C-Mount
16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
16mm, F2.0, 4/3", 10MP Lens, C-Mount
