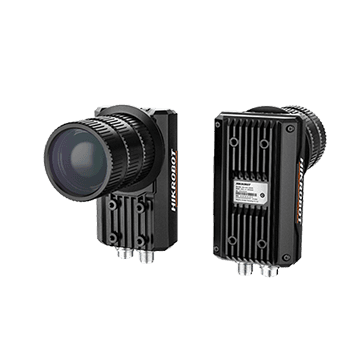

20MP Allfunction Industrial Code Reader
12–25 MP GigE Code Readers — Rolling shutter, CMOS, C-mount, IP67
Model
- Product Model
- MV-ID5200M
- Type
- 20MP Allfunction Industrial Code Reader
Performance
- Symbologies
- 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417
- Max. frame rate
- 20 fps
- Max. reading speed
- 36 codes/sec
- Sensor type
- CMOS, rolling shutter
- Pixel size
- 2.4 μm × 2.4 μm
- Sensor size
- 1"
- Sensor size (computed)from resolution × pixel pitch
- 13.06 × 8.76 mm
- Sensor diagonal
- 15.72 mm
- Resolution
- 5440 × 3648
- Exposure time
- 16 μs to 500 ms
- Gain
- 0 dB to 40 dB
- Mono/color
- Mono
- Communication protocol
- SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, Ethernet/IP, MELSEC, Fins, ModBus, SLMP, UDP
Electrical feature
- Data interface
- Gigabit Ethernet
- Digital I/O
- 12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, RS-232 input × 1, and RS-232 output × 1.
- Power supply
- 12 VDC to 24 VDC
- Max. power consumption
- 12 W@24 VDC
Mechanical
- Lens mount
- C-mount
- Light source
- Not included
- Lens cap
- Transparent lens cap. Polarization lens cap is optional.
- Indicator
- Power indicator (PWR), network indicator (LNK/ACT), and user-defined indicator (U1/U2).
- Dimension
- 109.5 mm × 64.4 mm × 109 mm (4.3" × 2.5" × 4.3")
- Weight
- Approx. 470 g (1.0 lb.)
- Ingress protection
- IP67 (under proper installation of waterproof lens cap)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
- Humidity
- 20% to 95% RH, non-condensing
General
- Client software
- IDMVS
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
39.2 mm
Magnification: 0.13×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 15.72 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
MVL-KF0618M-12MPE
6mm, F1.8, 1.1", 12MP Lens, C-Mount
MVL-KF0814M-12MPE
8mm, F1.4, 1.1", 12MP Lens, C-Mount
MVL-KF0818M-12MP
8mm, F1.8, 1", 12MP Lens, C-Mount
MVL-KF1224M-25MP
12mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF1228M-12MP
12mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1228M-12MPE
12mm, F2.8, 1.1", 12MP Lens, C-Mount
SA1220M-10MP
12mm, F2.0, 4/3", 10MP Lens, C-Mount
MVL-KF1624M-25MP
16mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF1628M-12MP
16mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1628M-12MPE
16mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1640-25MP
16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
SA1620M-10MP
16mm, F2.0, 4/3", 10MP Lens, C-Mount
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
