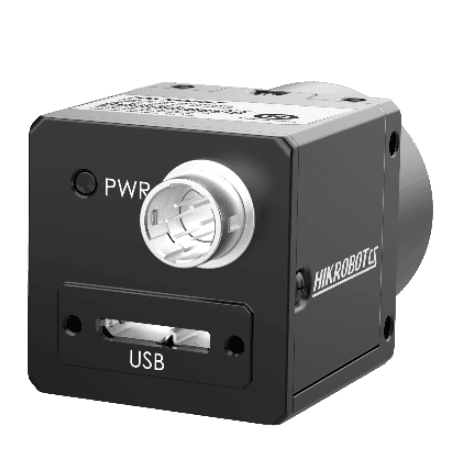

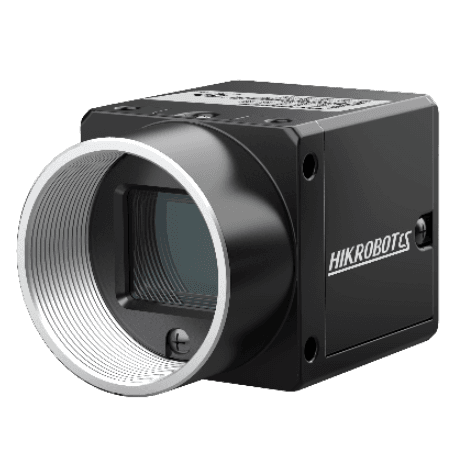

5MP Area Scan Camera, USB3.0, Mono
5–12 MP USB3 Area Scan Cameras — Global shutter, CMOS, C-mount, IP40
Model
- Product Model
- MV-CS050-80UM
- Type
- 5MP Area Scan Camera, USB3.0, Mono
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- SS
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 2/3"
- Sensor size (computed)from resolution × pixel pitch
- 8.45 × 7.07 mm
- Sensor diagonal
- 11.01 mm
- Resolution
- 2448 × 2048
- Max. frame rate
- 80 fps @ 2448 × 2048 Mono 8
- Dynamic range
- 60.9 dB
- SNR
- 41.7 dB
- Gain
- 0 dB to 12 dB
- Exposure time
- 15 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono
- Mono
- Pixel format
- Mono 8/10/10Packed/12/12Packed
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB 3.0, compatible with USB 2.0
- Digital I/O
- 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC, supports USB 3.0 power supply
- Power consumption
- Typ. 1.6 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
- Lens mount
- C-mount
- Dimension
- 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
- Weight
- Approx. 87 g (0.2 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with USB3 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- USB3 Vision, GenlCam
- Certification
- CE, RoHS, KC
EMVA data（typical）
- Quantum efficiency
- 81.28 %
- Dark noise
- 12.9e- @ 12 bit
- Saturation capacity
- 14.9 ke-
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
25.4 mm
Magnification: 0.084×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
