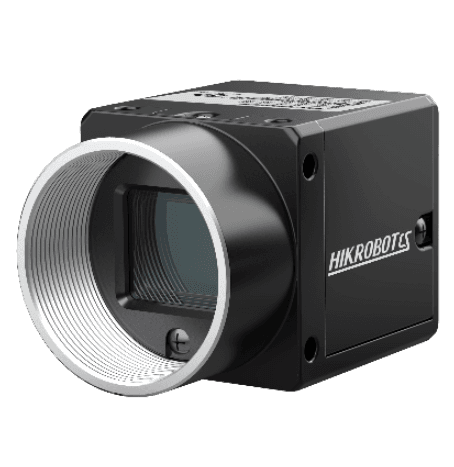

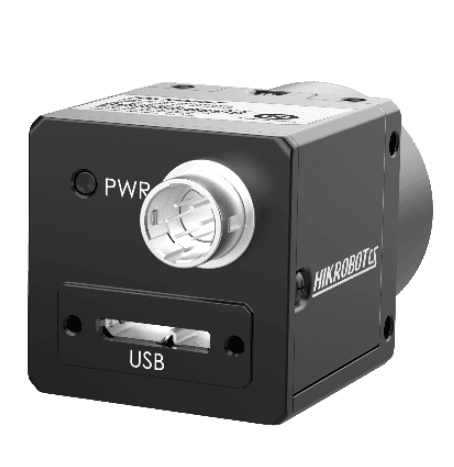

5MP Area Scan Camera, USB3.0, Color
5–12 MP USB3 Area Scan Cameras — Global shutter, CMOS, C-mount, IP40
Model
- Product Model
- MV-CS050-80UC
- Type
- 5MP Area Scan Camera, USB3.0, Color
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- SS
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 2/3"
- Sensor size (computed)from resolution × pixel pitch
- 8.45 × 7.07 mm
- Sensor diagonal
- 11.01 mm
- Resolution
- 2448 × 2048
- Max. frame rate
- 80 fps @ 2448 × 2048 Bayer BG 8
- Dynamic range
- 61.8 dB
- SNR
- 41.8 dB
- Gain
- 0 dB to 12 dB
- Exposure time
- 15 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono
- Color
- Pixel format
- Mono 8 Bayer BG 8/10/10Packed/12/12Packed YUV422Packed, YUV422_YUYV_Packed RGB 8, BGR 8
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB 3.0, compatible with USB 2.0
- Digital I/O
- 6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC, supports USB 3.0 power supply
- Power consumption
- Typ. 1.6 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
- Lens mount
- C-mount
- Dimension
- 29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
- Weight
- Approx. 87 g (0.2 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –30 °C to 60 °C (–22 °F to 140 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with USB3 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- USB3 Vision, GenlCam
- Certification
- CE, RoHS, KC
EMVA data（typical）
- Quantum efficiency
- 68.97 %
- Dark noise
- 11.7e- @ 12 bit
- Saturation capacity
- 15.2 ke-
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
25.4 mm
Magnification: 0.084×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 11.01 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
MVL-KF0618M-12MPE
6mm, F1.8, 1.1", 12MP Lens, C-Mount
MVL-KF0814M-12MPE
8mm, F1.4, 1.1", 12MP Lens, C-Mount
MVL-KF0818M-12MP
8mm, F1.8, 1", 12MP Lens, C-Mount
MVL-MF0828M-10MPE
8mm, F2.8, 2/3", 10MP Lens, C-Mount
MVL-KF1224M-25MP
12mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF1228M-12MP
12mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1228M-12MPE
12mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-MF1228M-10MPE
12mm, F2.8, 2/3", 10MP Lens, C-Mount
SA1220M-10MP
12mm, F2.0, 4/3", 10MP Lens, C-Mount
MVL-KF1624M-25MP
16mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF1628M-12MP
16mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1628M-12MPE
16mm, F2.8, 1.1", 12MP Lens, C-Mount
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
MV-ACU3-MBMS(DOWN)-AM-ST-0.5M
MV-ACU3-MBMs(down)-AM-ST-0.5m
MV-ACU3-MBMS-AM-FL-3M
MV-ACU3-MBMs-AM-FL-3m
MV-ACU3-MBMS-AM-SF-10M
USB3.0 AOC fiber cable
MV-ACU3-MBMS-AM-ST-0.5M
MV-ACU3-MBMs-AM-ST-0.5m
MV-ACU3-MBMS(DOWN)-AM-ST-1M
MV-ACU3-MBMs(down)-AM-ST-1m
MV-ACU3-MBMS-AM-SF-15M
USB3.0 AOC fiber cable
MV-ACU3-MBMS-AM-ST-1M
MV-ACU3-MBMs-AM-ST-1m
MV-ACU3-MBMS(DOWN)-AM-ST-2M
MV-ACU3-MBMs(down)-AM-ST-2m
MV-ACU3-MBMS-AM-SF-20M
USB3.0 AOC fiber cable
MV-ACU3-MBMS-AM-ST-2M
MV-ACU3-MBMs-AM-ST-2m
MV-ACU3-MBMS(DOWN)-AM-ST-3M
MV-ACU3-MBMs(down)-AM-ST-3m
MV-ACU3-MBMS-AM-SF-3M
USB3.0 AOC fiber cable
