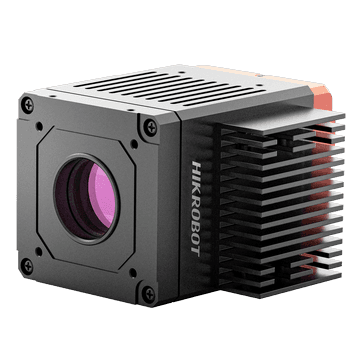

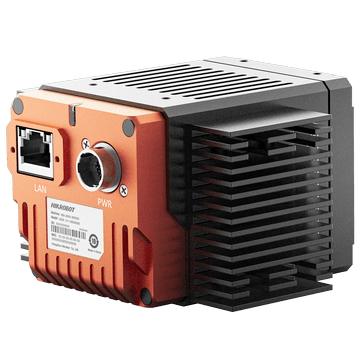

1.3MP SWIR Camera, IMX990, GigE, with TEC and heatsink, fanless
1–2 MP GigE Area Scan Cameras — IMX990, C-mount, IP40
Model
- Product Model
- MV-CI013-GS-TH
- Type
- 1.3MP SWIR Camera, IMX990, GigE, with TEC and heatsink, fanless
Performance
- Sensor type
- InGaAs
- Sensor model
- Sony® IMX990
- Pixel size
- 5 μm × 5 μm
- Sensor size
- 1/2"
- Sensor size (computed)from resolution × pixel pitch
- 6.4 × 5.12 mm
- Sensor diagonal
- 8.2 mm
- Resolution
- 1280 × 1024
- Max. frame rate
- 91 fps @ 1280 × 1024 Mono 8
- Dynamic range
- 56 dB
- SNR
- 52.2 dB
- Gain
- 0 dB to 18 dB
- Exposure time
- UltraShort exposure mode: 3 μs to 7 μs Standard exposure mode: 8 μs to 0.1 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Pixel format
- Mono 8/10/10Packed/12/12Packed
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
- Power supply
- 9 VDC to 24 VDC
- Power consumption
- Typ. 11.7 W @ 12 VDC (TEC enabled)
Mechanical
- Lens mount
- C-mount
- Dimension
- 58 mm × 94 mm × 82 mm (2.3" × 3.7" × 3.2")
- Weight
- Approx. 750 g (1.7 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: –30 °C to 50 °C (–22 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with GigE Vision Protocol
- Operating system
- 32/64-bit Windows 7/10/11, 32/64-bit Linux
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- CE, RoHS
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
19.2 mm
Magnification: 0.064×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
