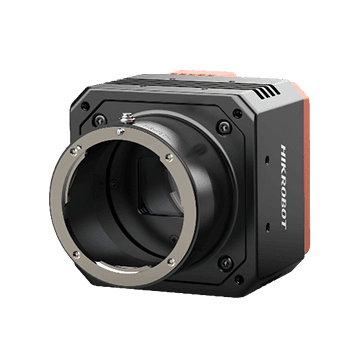

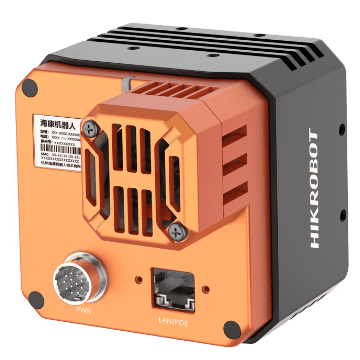

50MP Area Scan Camera, 10GigE, GMAX, Mono, F-mount, with fan
> 25 MP 10GigE Area Scan Cameras — Global shutter, CMOS, F-mount, IP40
Model
- Product Model
- MV-CH500-90TM-F-NF V2
- Type
- 50MP Area Scan Camera, 10GigE, GMAX, Mono, F-mount, with fan
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Gpixel GMAX
- Pixel size
- 3.2 μm × 3.2 μm
- Sensor size
- 22.4 mm × 22.4 mm
- Sensor size (computed)from resolution × pixel pitch
- 22.43 × 22.4 mm
- Sensor diagonal
- 31.7 mm
- Resolution
- 7008 × 7000
- Max. frame rate
- 23.3 fps @ 7008 × 7000 Mono 8
- Dynamic range
- 65 dB
- SNR
- 40 dB
- Gain
- 1.25 × to 6 ×
- Exposure time
- 18 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono/color
- Mono
- Pixel format
- Mono 8/10/10Packed/12/12Packed
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1.
- Power supply
- 9 VDC to 24 VDC
- Power consumption
- Typ. 11.8 W @ 12 VDC
Mechanical
- Lens mount
- F-mount, flange back length 46.5 mm
- Dimension
- F-mount with fan: 74 mm × 74 mm × 84.8 mm (2.9" × 2.9" × 3.3")
- Weight
- F-mount with fan: Approx. 600 g (1.3 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with GigE Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
67.3 mm
Magnification: 0.22×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
