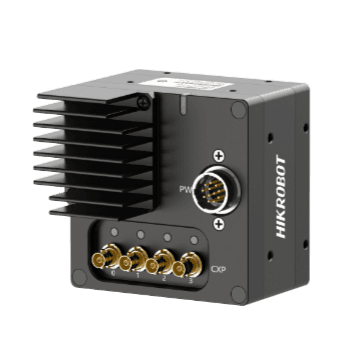

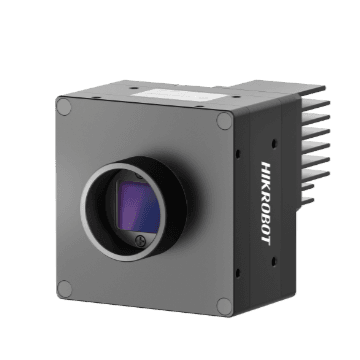

24MP Area Scan Camera, 4-link CXP-12, Mono

Name: 24MP Area Scan Camera, 4-link CXP-12, Mono
Brand: Hikrobot
SKU: MV-CH240-10YM-C-NN

MV-CH240-10YM-C-NNHikrobotSensor: IMX935 Global shutter →

Request a quote Datasheet PDF Manual CAD drawing

12–25 MP CoaXPress Area Scan Cameras — IMX935, Global shutter, CMOS, C-mount

Model

Product Model: MV-CH240-10YM-C-NN
Type: 24MP Area Scan Camera, 4-link CXP-12, Mono

Performance

Sensor type: CMOS, global shutter
Sensor model: Sony® IMX935
Pixel size: 2.74 μm × 2.74 μm
Sensor size: 1.2"
Sensor size (computed)from resolution × pixel pitch: 14.55 × 12.63 mm
Sensor diagonal: 19.27 mm
Resolution: 5312 × 4608
Max. frame rate: 191.7 fps @ 5312 × 4608 Mono 8
Dynamic range: 61.7 dB
SNR: 39.4 dB
Gain: 0 dB to 42 dB
Exposure time: 22 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode, and supports Trigger Width
Mono/color: Mono
Pixel format: Mono 8/10/12
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: CoaXPress with Micro-BNC interface
Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply: 9 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP
Power consumption: Typ. 11 W @ 12 VDC

Mechanical

Lens mount: C-mount
Dimension: 60 mm × 60 mm × 56.5 mm (2.4" × 2.4" × 2.2")
Weight: Approx. 255 g (0.6 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or frame grabber software meeting with CoaXPress Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux
Compatibility: CoaXPress, GenlCam
Certification: CE, RoHS, KC

Firmware

MV_CH240_10YM_STD_V4.1.19_260123_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

43.7 mm

Magnification: 0.15×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Lenses that fit this camera

Filtered by the C-mount thread and by coverage — the image circle is at least 19.27 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
