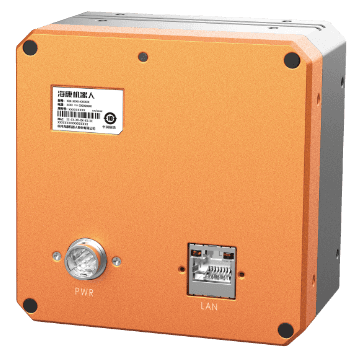

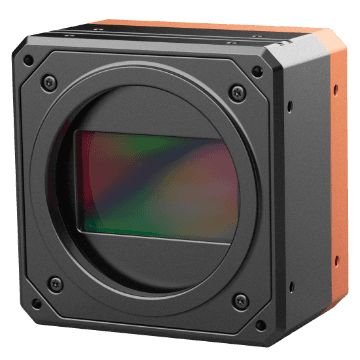

152MP Area Scan Camera, GMAX32152, GigE, Mono, M72-mount, fanless

Name: 152MP Area Scan Camera, GMAX32152, GigE, Mono, M72-mount, fanless
Brand: Hikrobot
SKU: MV-CH1520-90GM-M72-NN

MV-CH1520-90GM-M72-NNHikrobotSensor: GMAX32152 Global shutter →

Request a quote Datasheet PDF Manual CAD drawing

> 25 MP GigE Area Scan Cameras — GMAX32152, Global shutter, CMOS, M72-mount

Model

Product Model: MV-CH1520-90GM-M72-NN
Type: 152MP Area Scan Camera, GMAX32152, GigE, Mono, M72-mount, fanless

Performance

Sensor type: CMOS, global shutter
Sensor model: Gpixel GMAX32152
Pixel size: 3.2 μm × 3.2 μm
Sensor size: 53.0 mm × 29.4 mm
Sensor size (computed)from resolution × pixel pitch: 52.22 × 29.44 mm
Sensor diagonal: 59.95 mm
Resolution: 16320 × 9200
Max. frame rate: 0.8 fps @ 16320 × 9200 Mono 8 (non-compressed mode) 5 fps @ 16320 × 9200 Mono 8 (compressed mode in JPEG)
Dynamic range: 64.4 dB
SNR: 39.1 dB
Gain: 1.4x to 5.2x
Exposure time: 20 μs to 10 sec
Exposure mode: Off/Once/Continuous exposure mode
Mono/color: Mono
Pixel format: Mono 8/10/10Packed/12/12Packed Mono 8 (JPEG)
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 ×2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 ×2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal and vertical reverse image output

Electrical feature

Data interface: Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s)
Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply: 12 VDC to 24 VDC
Power consumption: Typ. 9 W @ 24 VDC

Mechanical

Lens mount: M72*0.75, flange back length 19.55 mm
Dimension (without lens): 100 mm × 100 mm × 60 mm (3.9" × 3.9" × 2.4")
Weight: Approx. 856 g (1.9 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: –30 °C to 70 °C (–22 °F to 158 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: MVS or third-party software meeting with GigE Vision Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11 (memory more than 8 GB), and 32/64-bit Linux
Compatibility: GigE Vision V2.0, GenlCam
Certification: RoHS

Firmware

MV_CH1520_90GM_STD_V4.1.2_260608_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

157 mm

Magnification: 0.52×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Lenses that fit this camera

Filtered by the M72-mount thread and by coverage — the image circle is at least 59.95 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm

LF5545M-M72
