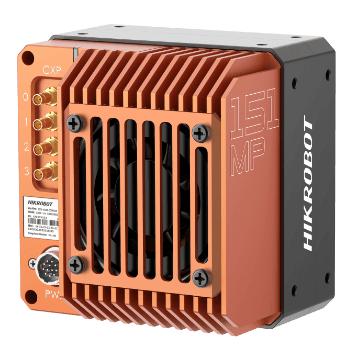

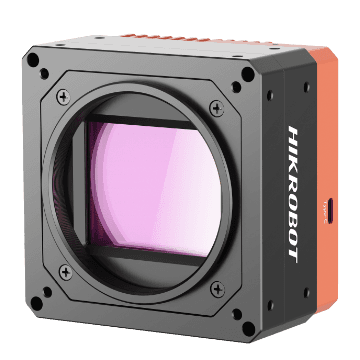

151MP Area Scan Camera, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan

Name: 151MP Area Scan Camera, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan
Brand: Hikrobot
SKU: MV-CH1510-10XC-M72-TFV2

MV-CH1510-10XC-M72-TFV2HikrobotSensor: IMX411 Rolling shutter →

Request a quote Datasheet PDF Manual CAD drawing

> 25 MP CoaXPress Area Scan Cameras — IMX411, Rolling shutter, CMOS, M72-mount

Model

Product Model: MV-CH1510-10XC-M72-TF V2
Type: 151MP Area Scan Camera, CoaXPress, IMX411, V2, color, M72-mount, TEC with fan

Performance

Sensor type: CMOS, rolling shutter
Sensor model: Sony® IMX411
Pixel size: 3.76 μm × 3.76 μm
Sensor size: 66.7 mm
Sensor size (computed)from resolution × pixel pitch: 53.36 × 40.01 mm
Sensor diagonal: 66.69 mm
Resolution: 14192 × 10640
Max. frame rate: 6.2 fps @14192 × 10640 Bayer RG 8
Dynamic range: 78.8 dB
SNR: 46.4 dB
Gain: 0 dB to 40 dB
Exposure time: 15 μs to 30 sec
Exposure mode: Off/Once/Continuous exposure mode, supports Rolling and Global Reset
Mono/color: Color
Pixel format: Mono 8/10/12/16 Bayer RG 8/10/12/16 RGB 8
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation: Not supported
Reverse image: Supports horizontal reverse image output

Electrical feature

Data interface: CoaXPress with DIN interface
Digital I/O: 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply: 24 VDC
Power consumption: Camera with TEC non-cooling: Typ. 23.2 W @ 24 VDC Camera with TEC cooling: Typ. 38 .2 W @ 24 VDC

Mechanical

Lens mount: M72*0.75, flange back length 19.55 mm
Dimension: 100 mm × 100 mm × 82 mm (3.9" × 3.9" × 3.2")
Weight: Approx. 1.2 kg (2.6 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 20% RH to 95% RH (no condensation)

General

Client software: Frame grabber software meeting with CoaXPress Protocol
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11, 32/64-bit Linux (8 GB memory or above)
Compatibility: CoaXPress, GenlCam
Certification: CE, RoHS, KC

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

160 mm

Magnification: 0.53×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Lenses that fit this camera

Filtered by the M72-mount thread and by coverage — the image circle is at least 66.69 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm

LF5545M-M72
