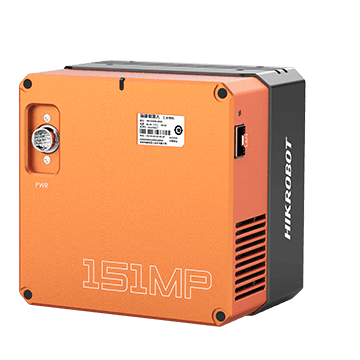

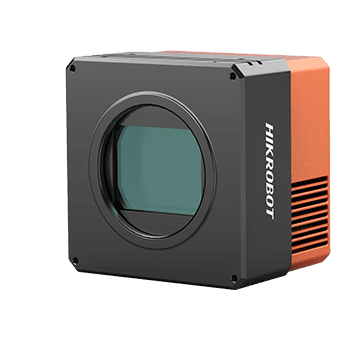

151MP Area Scan Camera, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress. Covering 5M-151M pixels that can meet high resolution and high frame rate requirements. Equipped with fan or TEC cooling models to meet various imaging requirements. Years of accumulation of 100-level purification processes have also given the product a world-class delivery advantage. Built-in ISP algorithms, including bright field correction, dark field correction, shadow correction, dead pixel/bad line correction, and pixel-by-pixel correction, to ensure consistent and stable image output.
Model
- Product Model
- MV-CH1510-10FM-M72-TF
- Type
- 151MP Area Scan Camera, IMX411, 10G BASE-X, Mono, M72-mount, with TEC and fan
Performance
- Sensor type
- CMOS, rolling shutter
- Sensor model
- Sony® IMX411
- Pixel size
- 3.76 μm × 3.76 μm
- Sensor size
- 66.7 mm
- Sensor size (computed)from resolution × pixel pitch
- 53.42 × 40.01 mm
- Sensor diagonal
- 66.74 mm
- Resolution
- 14208 × 10640
- Max. frame rate
- 6.2 fps @ 14208 × 10640 Mono 8
- Dynamic range
- 78.8 dB
- SNR
- 45 dB
- Gain
- 0 dB to 36 dB
- Exposure time
- 30 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode, supports Rolling mode and Global Reset
- Mono/color
- Mono
- Pixel format
- Mono 8/10/10Packed/12/12Packed/16
- Binning
- Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
- Reverse image
- Supports horizontal reverse image output
Electrical feature
- Data interface
- 10 Gigabit Ethernet (10000 Mbit/s)
- Digital I/O
- 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1
- Power supply
- 24 VDC
- Power consumption
- Typ. 11.28 W @ 24 VDC (non-TEC mode) Typ. 48.96 W @ 24 VDC (TEC mode)
Mechanical
- Lens mount
- M72*0.75, flange back length 19.55 mm
- Dimension
- 120 mm × 120 mm × 89 mm (4.7" × 4.7" × 3.5")
- Weight
- Approx. 2.5 kg (5.5 lb.)
- Ingress protection
- IP40 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with GigE Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the M72-mount thread and by coverage — the image circle is at least 66.74 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
Data cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
MV-AC10G-RJ45s-RJ45-HF-10m
MV-AC10G-RJ45s-RJ45-ST-10m
MV-AC10G-RJ45s-RJ45-HF-3m
MV-AC10G-RJ45s-RJ45-ST-3m
MV-AC10G-RJ45s-RJ45-HF-5m
MV-AC10G-RJ45s-RJ45-ST-5m
Power and I/O cables that fit
Matched on connector and protocol from the manufacturer's catalogue — not its own recommendation list. Ask us to confirm
High-flex 12pin power & I/O cables，10 meters
MV-ACP-H12p-open-ST-10m
High-flex 12pin power & I/O cables，3 meters
MV-ACP-H12p-open-ST-20m
High-flex 12pin power & I/O cables，5 meters
MV-ACP-H12p-open-ST-3m
High-flex 12pin power & I/O cables，7 meters
MV-ACP-H12p-open-ST-5m
