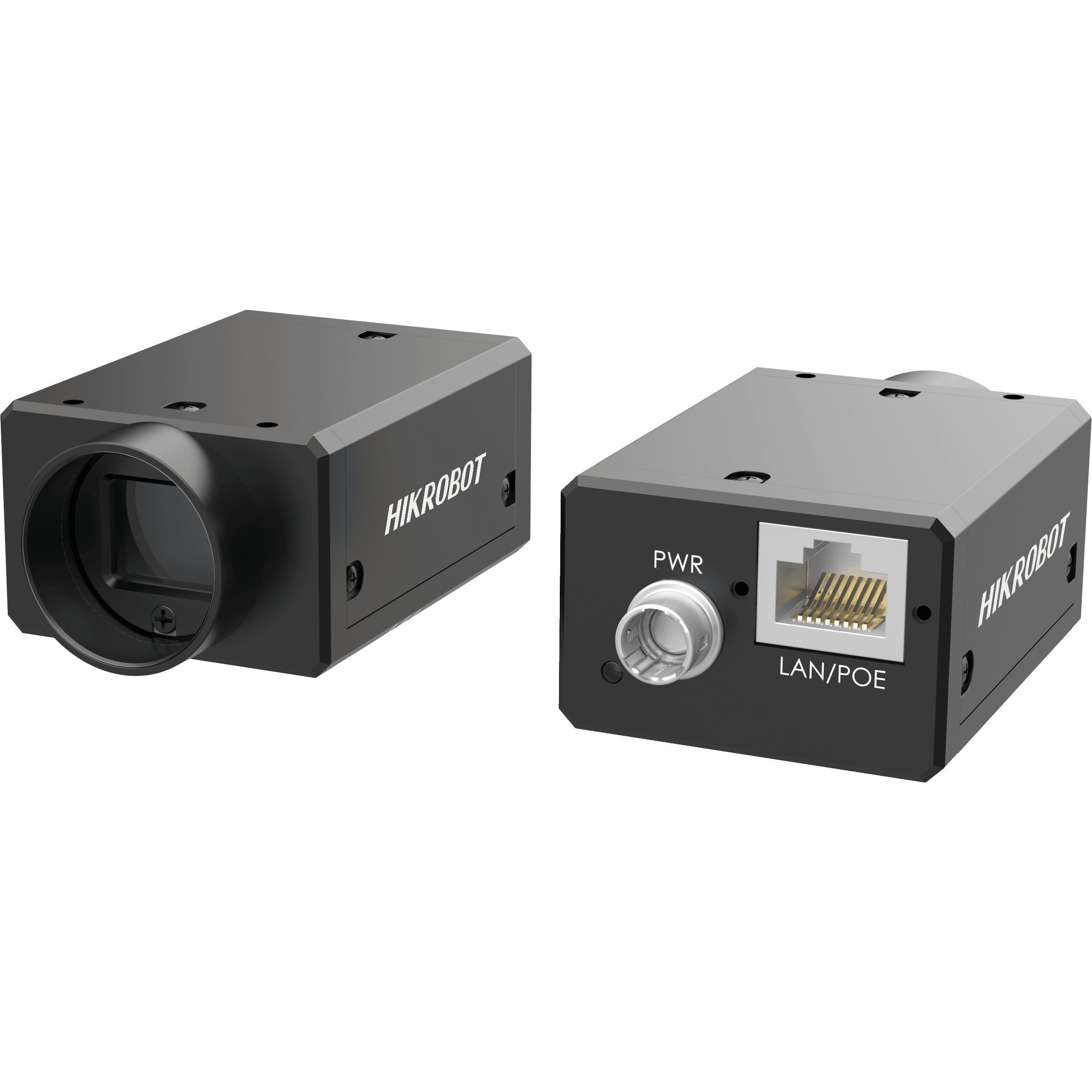

20MP Area Scan Camera, GigE,IMX183,Mono
12–25 MP GigE Area Scan Cameras — IMX183, Rolling shutter, CMOS, C-mount
Model
- Product Model
- MV-CE200-10GM
- Type
- 20MP Area Scan Camera, GigE,IMX183,Mono
Performance
- Sensor type
- CMOS, rolling shutter
- Sensor model
- Sony® IMX183
- Pixel size
- 2.4 μm × 2.4 μm
- Sensor size
- 1"
- Sensor size (computed)from resolution × pixel pitch
- 13.13 × 8.76 mm
- Sensor diagonal
- 15.78 mm
- Resolution
- 5472 × 3648
- Max. frame rate
- 5.9 fps @ 5472 × 3648
- Dynamic range
- 65.5 dB
- SNR
- 41.5 dB
- Gain
- 0 dB to 20 dB
- Exposure time
- 46 μs to 2 sec
- Exposure mode
- Off/Once/Continuous exposure mode, supports Global Reset
- Mono
- Mono
- Pixel format
- Mono 8/10/10p/12/12p
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Not support
- Reverse image
- Supports horizontal reverse image output
- Image buffer
- 128 MB
Electrical feature
- Data interface
- Gigabit Ethernet, compatible with Fast Ethernet
- Digital I/O
- 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 12 VDC, supports PoE
- Power consumption
- Typ. 3.1 W@12 VDC
Mechanical
- Lens mount
- C-mount
- Dimension
- 44 mm × 29 mm × 59 mm (1.7" × 1.1" × 2.3")
- Weight
- Approx. 100 g (0.22 lb.)
- Ingress protection
- IP30 (under proper lens installation and wiring)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with GigE Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 32/64-bit Linux
- Compatibility
- GigE Vision V2.0, GenlCam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
39.4 mm
Magnification: 0.13×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 15.78 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
MVL-KF0618M-12MPE
6mm, F1.8, 1.1", 12MP Lens, C-Mount
MVL-KF0814M-12MPE
8mm, F1.4, 1.1", 12MP Lens, C-Mount
MVL-KF0818M-12MP
8mm, F1.8, 1", 12MP Lens, C-Mount
MVL-KF1224M-25MP
12mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF1228M-12MP
12mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1228M-12MPE
12mm, F2.8, 1.1", 12MP Lens, C-Mount
SA1220M-10MP
12mm, F2.0, 4/3", 10MP Lens, C-Mount
MVL-KF1624M-25MP
16mm, F2.4, 1.2", 25MP Lens, C-Mount
MVL-KF1628M-12MP
16mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1628M-12MPE
16mm, F2.8, 1.1", 12MP Lens, C-Mount
MVL-KF1640-25MP
16mm, Fixed Iris F4, 1.2", 25MP Lens, C-Mount
SA1620M-10MP
16mm, F2.0, 4/3", 10MP Lens, C-Mount
