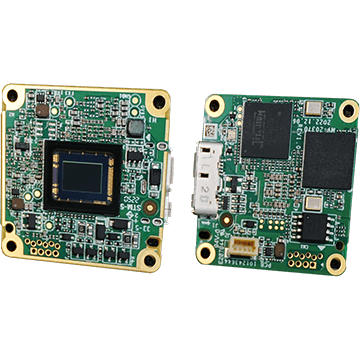

1.6MP Board Level Camera, USB3, IMX273, Color, M12-mount
1–2 MP USB3 Area Scan Cameras — IMX273, Global shutter, CMOS, M12-mount
Model
- Product Model
- MV-CB016-10UC-S
- Type
- 1.6MP Board Level Camera, USB3, IMX273, Color, M12-mount
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Sony® IMX273
- Pixel size
- 3.45 μm × 3.45 μm
- Sensor size
- 1/2.9"
- Sensor size (computed)from resolution × pixel pitch
- 4.97 × 3.73 mm
- Sensor diagonal
- 6.21 mm
- Resolution
- 1440 × 1080
- Max. frame rate
- 165.4 fps @ 1440 × 1080 Bayer RG 8 (ADC 12) 249.1 fps @ 1440 × 1080 Bayer RG 8 (ADC 8)
- Dynamic range
- 71.5 dB
- SNR
- 39.9 dB
- Gain
- 0 dB to 17 dB
- Exposure time
- UltraShort exposure mode: 1 μs to 14 μs Standard exposure mode: 15 μs to 10 sec
- Exposure mode
- Off/ Once/ Continuous exposure mode
- Mono
- Color
- Pixel format
- Mono 8/10/12 Bayer RG 8/10/10Packed/12/12Packed, YUV422Packed, YUV422_YUYV_Packed, RGB 8, BGR 8
- Binning
- Supports 1 × 1, 2 × 2
- Decimation
- Supports 1 × 1, 2 × 2
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB 3.0
- Digital I/O
- Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
- Power supply
- USB 3.0 power supply
- Power consumption
- Typ. 1.9 W @ 5 VDC
Mechanical
- Lens mount
- M12-mount
- Weight
- Approx. 43.5 g (0.1 lb.)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Dimension (without lens)
- 35 mm × 35 mm × 8.6 mm (1.4" × 1.4" × 0.3")
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS or third-party software with USB3 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- USB3 Vision, GenICam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
Solve for
Focal length
14.9 mm
Magnification: 0.05×
Resolution per pixel
0.0408 mm/px
Smallest detectable feature: 0.123 mm
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Data cables the manufacturer lists
Frame grabbers
Lenses that fit this camera
Filtered by the M12-mount thread and by coverage — the image circle is at least 6.21 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
MVL-HF0328-05S
3.37mm, F2.8, 1/2", 5MP Lens, M12-Mount
MVL-HF0628-05S
6mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF0828-05S
8mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF1228-05S
12mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF1628-05S
16mm, F2.8, 1/1.8", 5MP Lens, M12-Mount
MVL-HF2528-05S
