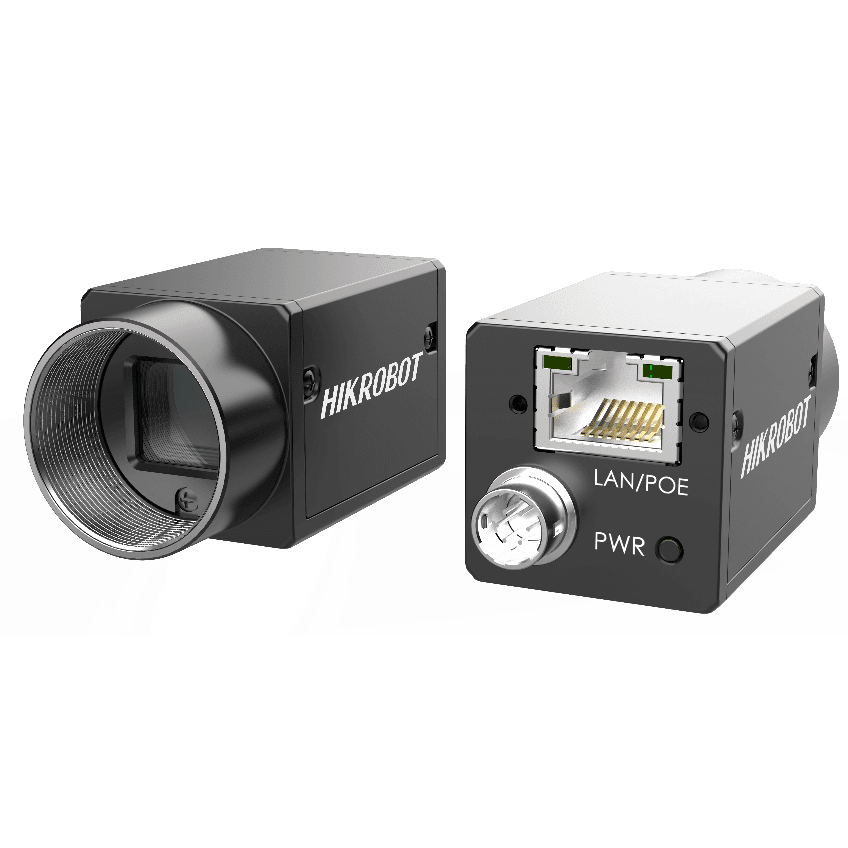

1.3MP Area Scan Camera, GigE, Color
Covering 0.3-6M pixels, CA series equip GigE and USB3.0 interfaces, with a maximum frame rate of 814fps. Near-infrared enhanced camera model selectable, which can meet the visual application requirements of the near-infrared band (750-1100nm). This series is mainly equipped with global shutter sensor, which can easily capture high-speed dynamic images and cover the needs in most applications; some models can support ultra-short exposures of 1μs, suitable for flying shooting and other Industries.
Model
- Product Model
- MV-CA013-A0GC
- Type
- 1.3MP Area Scan Camera, GigE, Color
Performance
- Sensor type
- CMOS, global shutter
- Pixel size
- 4.8 μm
- Sensor size
- 1/2"
- Sensor size (computed)from resolution × pixel pitch
- 6.14 × 4.92 mm
- Sensor diagonal
- 7.87 mm
- Resolution
- 1280 × 1024
- Max. frame rate
- 92.8 fps @ 1280 × 1024
- Dynamic range
- 54 dB
- SNR
- 40.6 dB
- Gain
- 0 dB to 16 dB
- Exposure time
- 9 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode
- Mono
- Color
- Pixel format
- Mono 8/10/12, Bayer RG 8/10/10p/12/12p, YUV 422 (YUYV) Packed, YUV 422 Packed, RGB 8, BGR 8
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- Gigabit Ethernet, compatible with Fast Ethernet
- Digital I/O
- 6-pin Hirose connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
- Power supply
- 9 VDC to 24 VDC, supports PoE
- Power consumption
- Typ. 2.7 W@12 VDC
Mechanical
- Lens mount
- C-mount
- Dimension
- 29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.2")
- Weight
- Approx. 100 g (0.22 lb.)
- Ingress protection
- IP30
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS or third-party software meeting with GigE Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 32/64-bit Linux
- Compatibility
- GigE Vision V2.0, GenICam
- Certification
- CE, RoHS, KC
Firmware
Choosing a lens
Choosing a lens
The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.
Lenses that fit this camera
Filtered by the C-mount thread and by coverage — the image circle is at least 7.87 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
