Hikrobot provides high-quality cable products including power line, I/O control line, data transmission line to fulfill diverse application needs. The cables’ length covers 0.5 m – 80 m to meet requirements in different scenarios. Even at the maximum length, the data transmission maintains high stability. Some cables also have motion performance, support the application scenes of moving drag chains.
Model
- Product Model

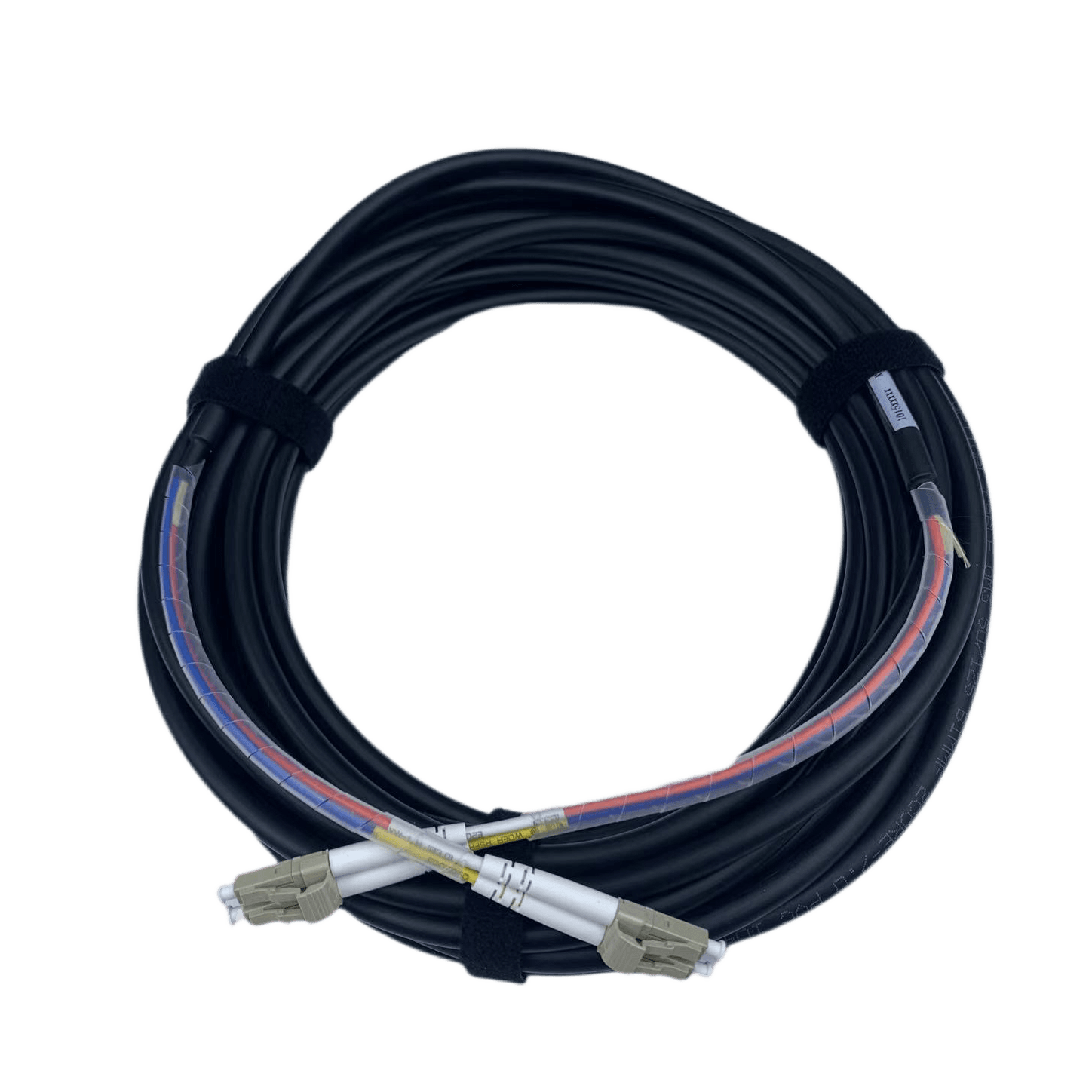

- MV-AC10G-2LC-2LC-ST-5m
- Type
- MV-AC10G-2LC-2LC-ST-5m
Physical specification
- End A connector
- LC (2-core)
- End B connector
- LC (2-core)
- Cable diameter
- 6.5 mm
- Length
- 5 m
- Fiber type
- Multimode 50 μm/125 μm
- Central wavelength
- 850 nm
- Insertion loss
- ≤ 0.30 dB
- Return loss
- ≥ 36 dB
- Cable color
- Black
- Connector durability
- 200 mating cycles
- Applicable scenario
- Static scenes
Additional information
- Working temperature
- –20 °C to 75 °C (–4 °F to 167 °F)
- Certification
- RoHS
- Packaging
- Individual package
