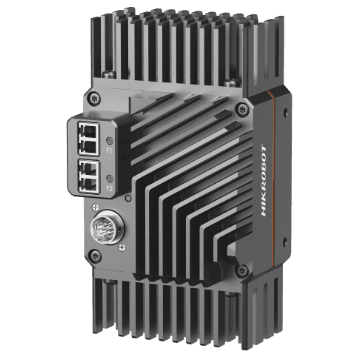

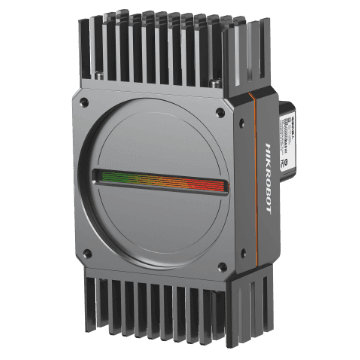

8K7 XoF 4-line（2 SFP+） mono line-scan camera

Name: 8K7 XoF 4-line（2 SFP+） mono line-scan camera
Brand: Hikrobot
SKU: MV-CL084-91F2M(2.0)

MV-CL084-91F2M(2.0)Hikrobot

Request a quote Datasheet PDF Manual CAD drawing

< 1 MP Line Scan Cameras — CMOS, M72-mount, IP40

Model

Product Model: MV-CL084-91F2M(2.0)
Type: 8K7 XoF 4-line（2 SFP+） mono line-scan camera

Performance

Sensor type: CMOS
Pixel size: 7 μm × 7 μm
Sensor size (computed)from resolution × pixel pitch: 57.34 × 0.03 mm
Sensor diagonal: 57.34 mm
Resolution: 8192 × 4
Image mode: Supports multi-light control: 1/2/3/4 light(s) Supports 1-Line, 2-TDI, 4-TDI
Max. line rate: 1-light mode: 200 kHz (1-Line), 100 kHz (2-TDI), 50 kHz (4-TDI) 2-light mode: 52 kHz (1-Line), 26 kHz (2-TDI) 3-light mode: 34.6 kHz (1-Line) 4-light mode: 26 kHz (1-Line)
Dynamic range: 63.4 dB
SNR: 40.8 dB
Gain: 1.0 ×
Exposure time: 3 μs to 10 ms
Exposure mode: Off/Once/Continuous exposure mode, and supports trigger-width exposure
Mono/color: Mono
Pixel format: Mono 8/10/12
Binning: Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image: Supports horizontal reverse image output
Trigger mode: External trigger, internal trigger
External trigger mode: Line trigger, frame trigger, line + frame trigger

Electrical feature

Data interface: 2LC fiber connector
Digital I/O: 12-pin P10 connector provides power and I/O: Configurable input/output × 4 (Line 0/1/3/4) and single-ended/differential is supported.
Power supply: 12 VDC to 24 VDC
Power consumption: Typ. 15.4 W @ 24 VDC

Mechanical

Lens mount: M72*0.75, flange back length 12 mm, applicable to F-mount via lens adapter
Dimension: 132 mm × 76 mm × 57.4 mm (5.2" × 3.0" × 2.3")
Weight: Approx. 600 g (1.3 lb.)
Ingress protection: IP40 (under proper lens installation and wiring)
Temperature: Working temperature: –20 °C to 50 °C (–4 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity: 5% RH to 90% RH (no condensation)

General

Client software: MVS
Operating system: 32/64-bit Windows 7/10, 64-bit Windows 11
Compatibility: XoFLink, GenlCam
Certification: CE, RoHS, KC

Firmware

MV_CL084_91F2M_HS_STD_V4.1.1_250624_HIKROBOT.zip →

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

172 mm

Magnification: 0.57×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Data cables the manufacturer lists

MV-AC10G-2LC-2LC-ST-3M

MV-AC10G-2LC-2LC-ST-3m

MV-AC10G-SFP-850-LC

Frame grabbers

MV-GS1104F

XoF SFP+ Frame Grabbers，4 ports， 40G bandwidth

Lenses that fit this camera

Filtered by the M72-mount thread and by coverage — the image circle is at least 57.34 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
