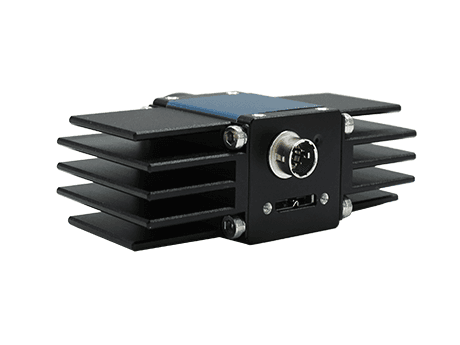

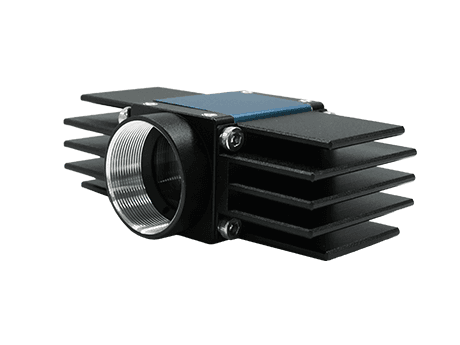

ME2S-138-136U3M-SWIR F02

Name: ME2S-138-136U3M-SWIR F02
Brand: Daheng Imaging
SKU: ME2S-138-136U3M-SWIRF02

ME2S-138-136U3M-SWIRF02Daheng ImagingSensor: IMX990 Global shutter →

Request a quote Datasheet PDF

1–2 MP USB3 Area Scan Cameras — IMX990, Global shutter, CMOS, SWIR

Specifications

Model: ME2S-138-136U3M-SWIR F02
Product Families: MERCURY2 SUPER
Resolution: 1280×1024
Frame Rate (fps): 136
Sensor Manufacturer: Sony
Sensor: 1/2" IMX990 Global shutter CMOS
Pixel Size: 5μm
Sensor size (computed)from resolution × pixel pitch: 6.4 × 5.12 mm
Sensor diagonal: 8.2 mm
Pixel Bit Depth: 8bit，10bit，12bit
Data Interface: USB3.0
Lens Mount: C
Spectrum: Mono，SWIR
Pixel Formats: Mono8，Mono10，Mono12
Signal Noise Ratio: 50.6 dB
Exposure Time: UltraShort: 3μs~100μs, Standard: 13μs ~ 1s
Gain: 0dB ~ 24dB
Binning: 1×1, 1×2, 2×1, 2×2
Decimation: Sensor: 1×1, 2×2
Reverse X/Y: Reverse X/Y
I/O Interface: 1 input and 1 output with opto-isolated, 1 programmable GPIO
Power Requirement: Power over USB3.0
Power Consumption: 3.04 W @ 5 VDC
Operating Temp.: 0°C ~ +45°C
Storage Temp.: 20°C ~ +70°C
Operating Humidity: 10% ~ 80%
Dimensions (W×H×L): 29 mm × 29 mm × 38.8 mm (w/o lens adapter, connectors or Heat Dissipation Fins)
Weight: 60g
Conformity: CE, RoHS, FCC, ICES, UKCA, USB3.0 Vision, GenICam

Choosing a lens

Solve for

Sensor widthmmFrom the datasheet, not the inch format nameWorking distancemmField of viewmmPixels acrosspx

Focal length

19.2 mm

Magnification: 0.064×

Resolution per pixel

0.0408 mm/px

Smallest detectable feature: 0.123 mm

The formula holds for standard (entocentric) lenses and assumes the working distance is much larger than the focal length. It does not apply to telecentric lenses, and it accounts for neither depth of field nor distortion.

Lenses that fit this camera

Filtered by the C-mount thread and by coverage — the image circle is at least 8.2 mm, this sensor's diagonal. A smaller circle darkens the corners of every frame. Ask us to confirm
