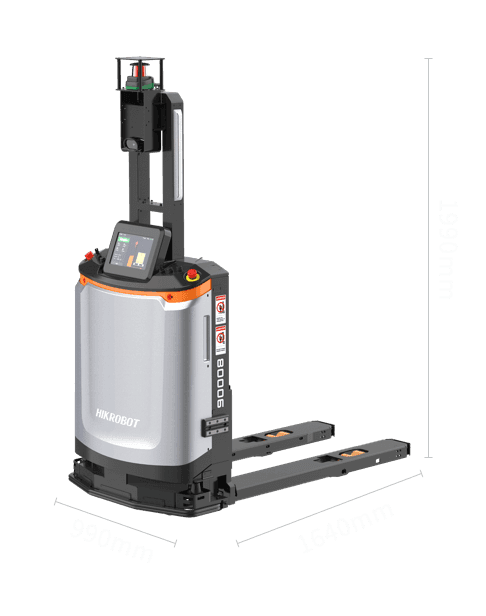

MR-F3-1500-HI(CE)

Name: MR-F3-1500-HI(CE)
Brand: Hikrobot
SKU: F3-1500

F3-1500Hikrobot

Pallet truck FMRs cover loads ranging from 1000kg to 3000kg, with a maximum running speed of 2m/s. The lightweight FMR body is equipped with high-capacity batteries, which can be selected according to the size requirements, reducing overhead with precise requirements. The specially designed footprint of the FMR body greatly reduces the width of the operating aisle and improves the material storage density. The whole series adopts environmental contour navigation methods and supports texture navigation, which makes full use of environmental information for localization and improves deployability and overall system implementation.

Basic Parameter

Dimension (l1*b1*h1): 1628 mm × 991 mm × 1917 mm (64.09" × 39.02" × 75.47")
Weight (with Battery): 452 kg (996.49 lb.)
Rated Load (Q): 1500 kg (3306.93 lb.)
Load Center Distance (C): 600 mm (23.62")
Wheelbase (y): 1102 mm (43.39")
Lifting Height (h3+h13): 200 mm (7.87")
Fork Above Ground After Lowering (h13): 85 mm (3.35")
Fork Height/Width/Length (s/e/l): 80 mm/160 mm/1182 mm (3.15"/6.30"/46.54")
Fork Distance (b5): 530 mm (20.87")
Min. Ground Clearance (m2): 5 mm (0.20")
Laser Scanning Height (h15): 1903 mm (74.92")
Min. Rotation Radius (Wa): 1305 mm (51.38")
Aisle Width (Ast): 2137 mm (84.13") (with pallet 1000 × 1200)

Motion Performance

Running Speed (Full/Empty): 1200 mm/s / 1500 mm/s
Positioning Accuracy: ± 10 mm (0.39")
Positioning Angle Accuracy: ± 1°
Repeated Positioning Accuracy: ± 10 mm (0.39")
Max. Gradeability (Full/Empty): 3%/5%
Lifting Fork Speed (Full/Empty): 25 mm/s / 25 mm/s
Lowering Fork Speed (Full/Empty): 25 mm/s / 25 mm/s
Motion Method: Steering wheel drive; support forward, backward, arc motion and rotation on site.
