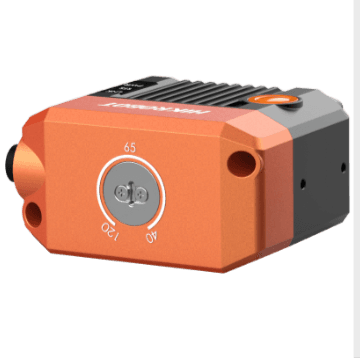

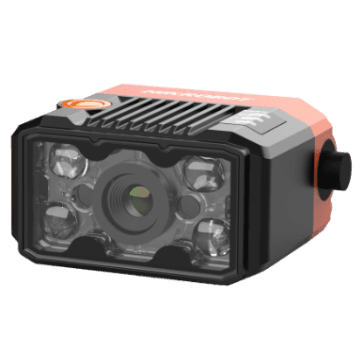

SC2000E series mini vision sensor，1.6MP，Mono，6mm focal length

Name: SC2000E series mini vision sensor，1.6MP，Mono，6mm focal length
Brand: Hikrobot
SKU: MV-SC2016EM-06S-WBN-MINI

MV-SC2016EM-06S-WBN-MINIHikrobotGlobal shutter →

Заяви оферта Datasheet PDF Ръководство Протокол (PDF)CAD чертеж

1–2 MP Смарт камери — 6.72 mm, Global shutter, CMOS, M10-mount

Model

Product Model: MV-SC2016EM-06S-WBN-Mini
Type: SC2000E series mini vision sensor，1.6MP，Mono，6mm focal length

Tool

Vision tool: Measurement: P2P measurement, P2L measurement, contrast measurement, greyscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, and line angle Existence: Anomaly judge, spot existence, edge existence, contour existence, pattern existence, circle existence, and line existence Count: Spot count, edge count, contour count, and pattern count Recognition: Category recognition, classification registration, and OCR Logic: Calculator, logic judge, condition judge, combination judge, format output, If module, and character comparison Location: Fixture
Solution capacity: Supports solution importing and exporting, up to 8 solutions and 40 modules can be stored.
Communication protocol: RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV

Camera

Sensor type: CMOS, global shutter
Pixel size: 3.45 μm × 3.45 μm
Sensor size: 1/2.9"
Размер на сензора (изчислен)от резолюция × стъпка на пиксела: 4.86 × 3.53 mm
Диагонал на сензора: 6.01 mm
Resolution: 1408 × 1024
Max. frame rate: 60 fps
Gain: 0 dB to 15 dB
Exposure time: 16 μs to 1 sec
Pixel format: Mono 8
Mono/color: Mono

Electrical feature

Data interface: Fast Ethernet (100 Mbit/s)
Digital I/O: Ethernet female connector supports Ethernet communication. 8-pin green terminal provides power, digital I/O, and serial port, including non-isolated input × 1 (Line 2), non-isolated output × 1 (Line 3), configurable non-isolated I/O × 2 (Line 0/1), RS-232 × 1, and external button input × 1 (BUTTON) Output signals support NPN only.
Power supply: 12 VDC to 24 VDC
Power consumption: Avg. 4 W @ 24 VDC Max. 11 W @ 24 VDC

Mechanical

Lens mount: M10-mount, adjusting focus manually supported
Focal length: 6.72 mm
Lens cap: Transparent lens cap
Light source: White LED lamp × 4
Indicator: Power indicator (PWR), network indicator (LNK), and status indicator (STS)
Dimension: 46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
Weight: Approx. 160 g (0.4 lb.)
Ingress protection: IP65
Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity: 20% RH to 95% RH (no condensation)
Vibration resistance: Meets standard IEC 60068-2-6:2007. Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance: Meets standard IEC 60068-2-27:2008. Device only: 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)

General

Client software: SCMVS
Certification: CE, KC

Фърмуер

MV_SC2016EM_XXS_WBN_MINI_GML_STD_V4.3.2_260130.zip →

Избор на обектив

Търся

Ширина на сензораmmОт datasheet-а, не от „инчовия“ форматРаботно разстояниеmmЗрително полеmmПиксели по ширинаpx

Фокусно разстояние

14.6 mm

Мащаб: 0.049×

Резолюция на пиксел

0.0408 mm/px

Най-малък откриваем детайл: 0.123 mm

Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
