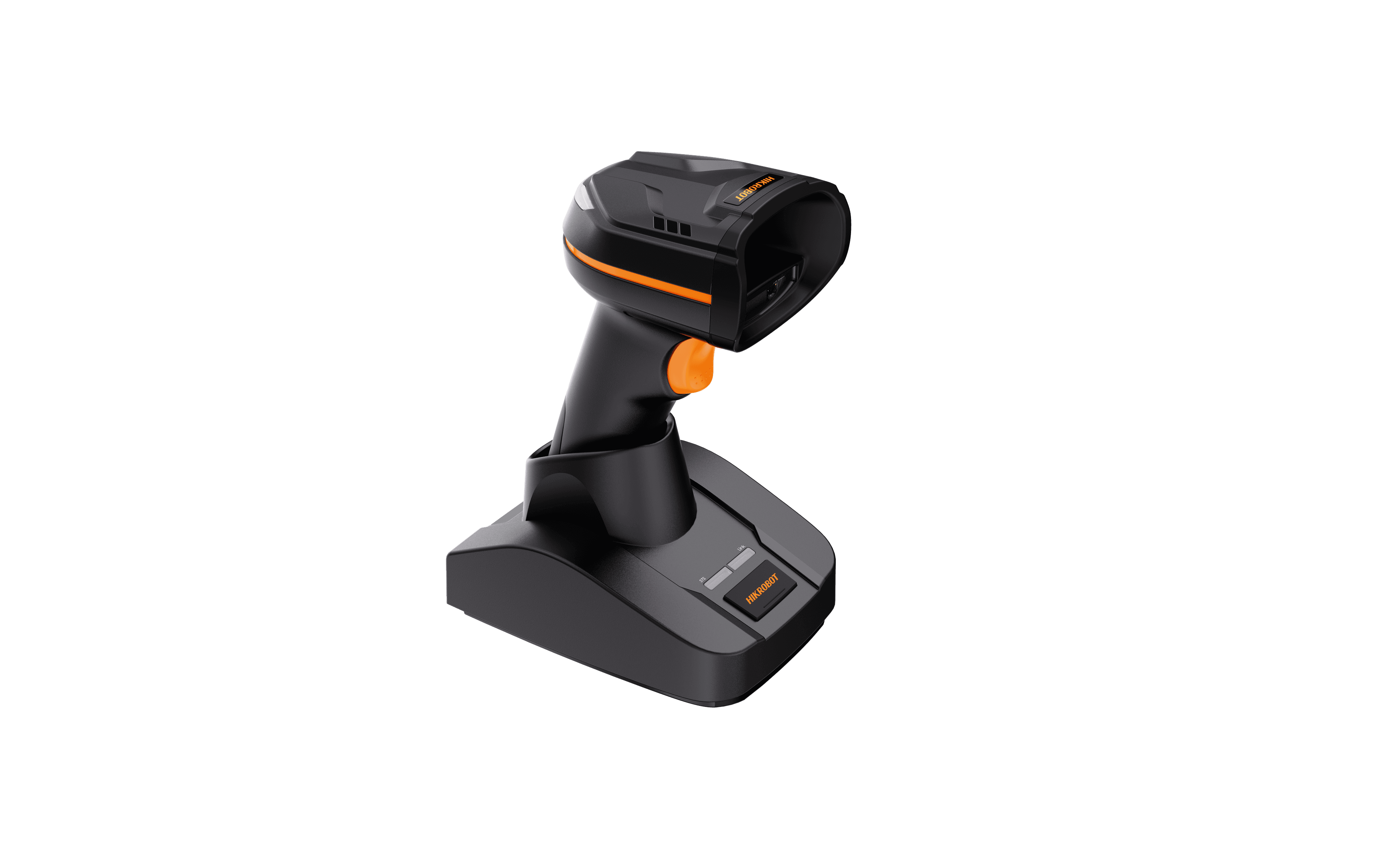

Wireless Lan Handheld Code Reader Package

Name: Wireless Lan Handheld Code Reader Package
Brand: Hikrobot
SKU: MV-IDH3000B/13NR/05RN/LS

MV-IDH3000B/13NR/05RN/LSHikrobot

1–2 MP Serial Четци на кодове — 4.7 mm, CMOS

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417
Min. accuracy: 3 mil
Sensor type: CMOS
Resolution: 1280 × 1024
Depth of field: Code 128 (3 mil): 25 mm to 70 mm Code 128 (10 mil): 10 mm to 170 mm Code 39 (5 mil): 15 mm to 100 mm Data Matrix (5 mil): 30 mm to 60 mm Data Matrix (10 mil): 5 mm to 115 mm
Field of view: Horizontal 40°, vertical 34°
Detection angle: Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast: 20%

Focal length: 4.7 mm
Ambient illumination: 0 lux to 100000 lux
Light source: Red LED
Aiming system: Cross laser aiming
Prompt: LED indicator, buzzer, vibrator
Dimension: 74.4 mm × 86.6 mm × 179.5 mm (2.9" × 3.4" × 7.1")
Weight: Approx. 230 g (0.5 lb.)
Ingress protection: IP52
Temperature: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
Humidity: 20% RH to 80% RH (no condensation)
Drop height: Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times
Static electricity resistant: ± 16 kV (air discharge), ± 8 kV (contact discharge)

Communication protocol: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232), Bluetooth
Data interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Power supply: 12 VDC to 24 VDC
Charging time: 4 h
Current consumption: 0.7 A (max.), 0.06 A (during standby)
Dimension: 100.9 mm × 131.8 mm × 83.6 mm (4.0" × 5.2" × 3.3")
Weight: Approx. 180 g (0.4 lb.)
Humidity: 20% RH to 80% RH (no condensation)
Ingress protection: IP40
Temperature: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F)
