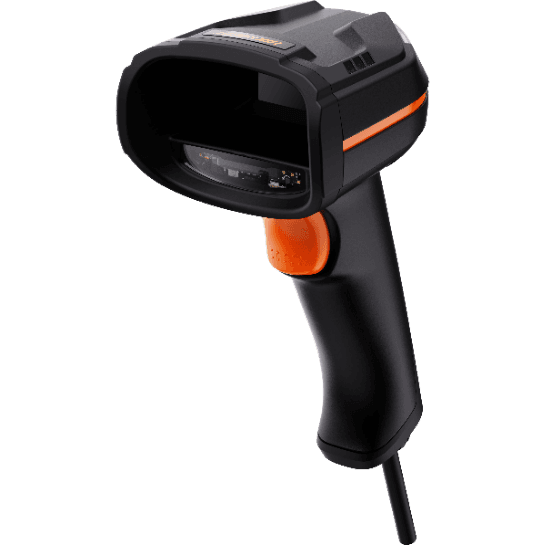

Lan Handheld Code Reader

Name: Lan Handheld Code Reader
Brand: Hikrobot
SKU: MV-IDH3000/13SR/05RN/L

MV-IDH3000/13SR/05RN/LHikrobot

1–2 MP Serial Четци на кодове — 4.7 mm, CMOS, IP52

Model

Symbologies: 1D codes: Code 39, Code 93, Code 128, GS1-Code128, CodaBar, EAN 8, EAN 13, ISBN, ISSN, ITF 25, ITF 14, UPCA, UPCE 2D matrix codes: QR Code, Data Matrix, MicroQR, Aztec, GS1-DM, GS1-QR, Han Xin Stacked code: PDF417
Min. accuracy: 4 mil
Sensor type: CMOS
Resolution: 1280 × 1024
Depth of field: Code 39 (5 mil): 40 mm to 160 mm Code 128 (10 mil): 10 mm to 400 mm Data Matrix (10 mil): 30 mm to 200 mm QR Code (15 mil): 15 mm to 280 mm QR Code (20 mil): 20 mm to 370 mm
Field of view: Horizontal 40°, vertical 34°
Detection angle: Tilt angle ± 60°, skew angle ± 60°, rotation angle 360°
Symbol contrast: 20%
Communication protocol: SmartSDK, TCP Client, FTP, TCP Server, UDP, Serial (RS-232)

Focal length: 4.7 mm
Ambient illumination: 0 lux to 100000 lux
Light source: Red LED
Aiming system: Cross laser aiming
Prompt: LED indicator, buzzer, vibrator
Dimension: 74.4 mm × 86.6 mm × 190.2 mm (2.9" × 3.4" × 7.5")
Weight: Approx. 160 g (0.4 lb.)
Ingress protection: IP52
Temperature: Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F)
Humidity: 20% RH to 80% RH (no condensation)
Drop height: Dropping: 1.8 m, 50 times Rolling: 0.5 m, 1200 times
Static electricity resistant: ± 16 kV (air discharge), ± 8 kV (contact discharge)
