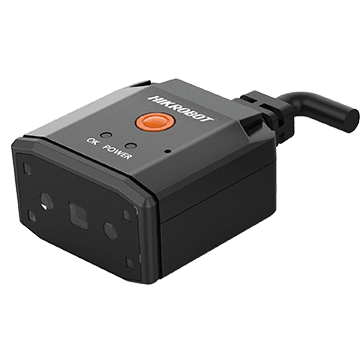

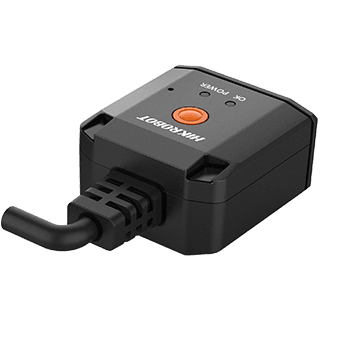

3mm Near Focus length 1.3MP Ultra-Compact Industrial Code Reader
1–2 MP Serial Четци на кодове — 2.45 mm, Global shutter, CMOS, IP54
Model
- Product Model
- MV-ID2013EM-03N-RBP
- Type
- 3mm Near Focus length 1.3MP Ultra-Compact Industrial Code Reader
Performance
- Symbologies
- 1D codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2D codes: QR Code, Data Matrix
- Max. frame rate
- 50 fps
- Max. reading speed
- 30 codes/sec
- Sensor type
- CMOS, global shutter
- Pixel size
- 2.7 μm × 2.7 μm
- Sensor size
- 1/4"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 3.46 × 2.76 mm
- Диагонал на сензора
- 4.43 mm
- Resolution
- 1280 × 1024
- Exposure time
- 60 μs to 0.6 sec
- Gain
- 1 dB to 28 dB
- Mono/color
- Mono
- Communication protocol
- SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP
- Depth of field
- Code 39 (5 mil): 40 mm to 120 mm Code 128 (10 mil): 15 mm to 250 mm EAN 13 (13 mil): 30 mm to 280 mm QR Code (10 mil): 35 mm to 155 mm QR Code (15 mil): 15 mm to 215 mm QR Code (20 mil): 15 mm to 270 mm
Electrical feature
- Data interface
- Fast Ethernet (100 Mbit/s), RS-232, DC terminal
- Digital I/O
- DB15 connector provides power and I/O, including non-isolated input × 2 (Line 0/1), non-isolated output × 2 (Line 2/3), RS-232 × 1. Supports device triggering via pressing button on side.
- Power supply
- 12 VDC to 24 VDC
- Max. power consumption
- 2.5 W @ 12 VDC
Mechanical
- Focal length
- 2.45 mm
- Lens mount
- M5.8-mount
- Ambient illumination
- 0 lux to 10000 lux
- Light source
- Red (polarized)
- Aiming system
- Green LED
- Indicator
- Power indicator (POWER), status indicator (OK/NG)
- Dimension
- 45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
- Weight
- Approx. 68.5 g (0.2 lb.)
- Ingress protection
- IP54
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
- Humidity
- 20% RH to 95% RH (no condensation)
General
- Client software
- IDMVS
- Certification
- CE, RoHS, KC
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
10.4 mm
Мащаб: 0.035×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
Подобни продукти
MV-ID2018L-10S
1.3 MP Industrial Code Reader

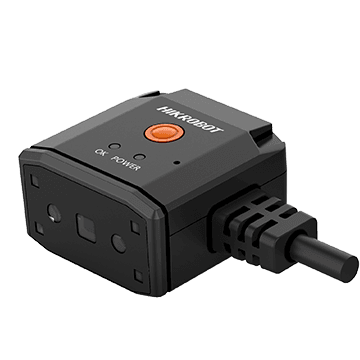

MV-ID2013EM-05-RBN-S
1.3MP 5mm Focus Length Industrial Code Reader
MV-ID2013EM-05-RBP-S
1.3MP 5mm Focus Length Industrial Code Reader
MV-ID2013EM-05-RBP-SU
1.3MP 5mm Focus Length Industrial Code Reader
MV-ID2013EM-05-RBN-SU
1.3MP 5mm Focus Length USB Industrial Code Reader
MV-ID2013EM-05H-RBN-S
1.3MP 5mm HD Focus Length Industrial Code Reader
MV-ID2013EM-05H-RBN-SU
1.3MP 5mm HD Focus Length Industrial Code Reader
MV-ID2013EM-05N-RBN-S
1.3MP 5mm Near Focus Length Industrial Code Reader
MV-ID2013EM-05N-RBN-SU
1.3MP 5mm Near Focus Length Industrial Code Reader

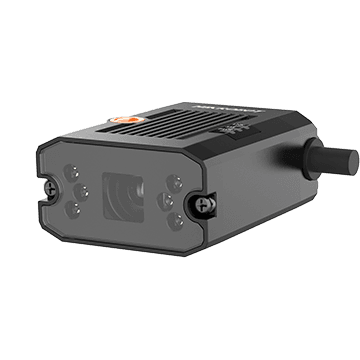

MV-ID2013M-16S-RBN
