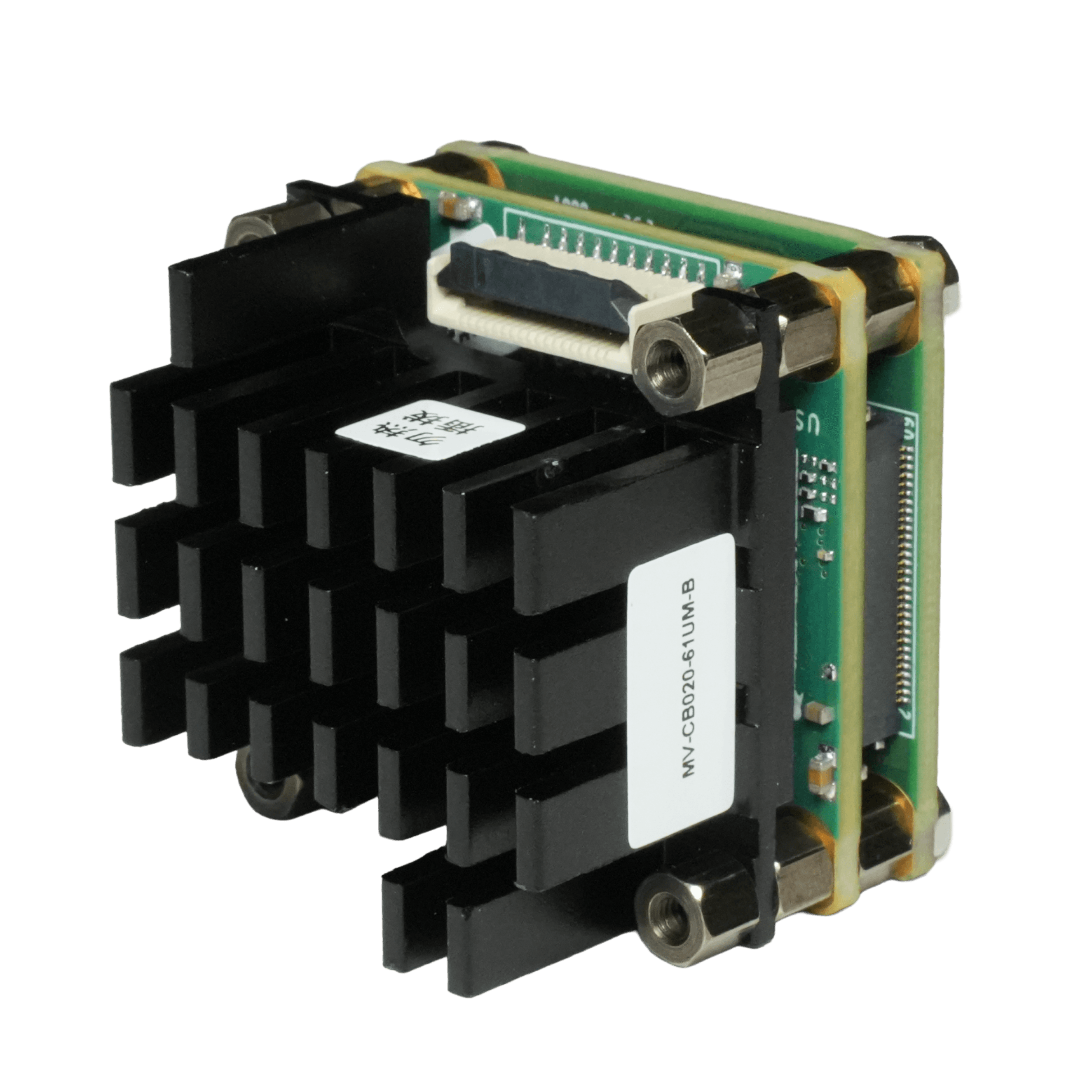

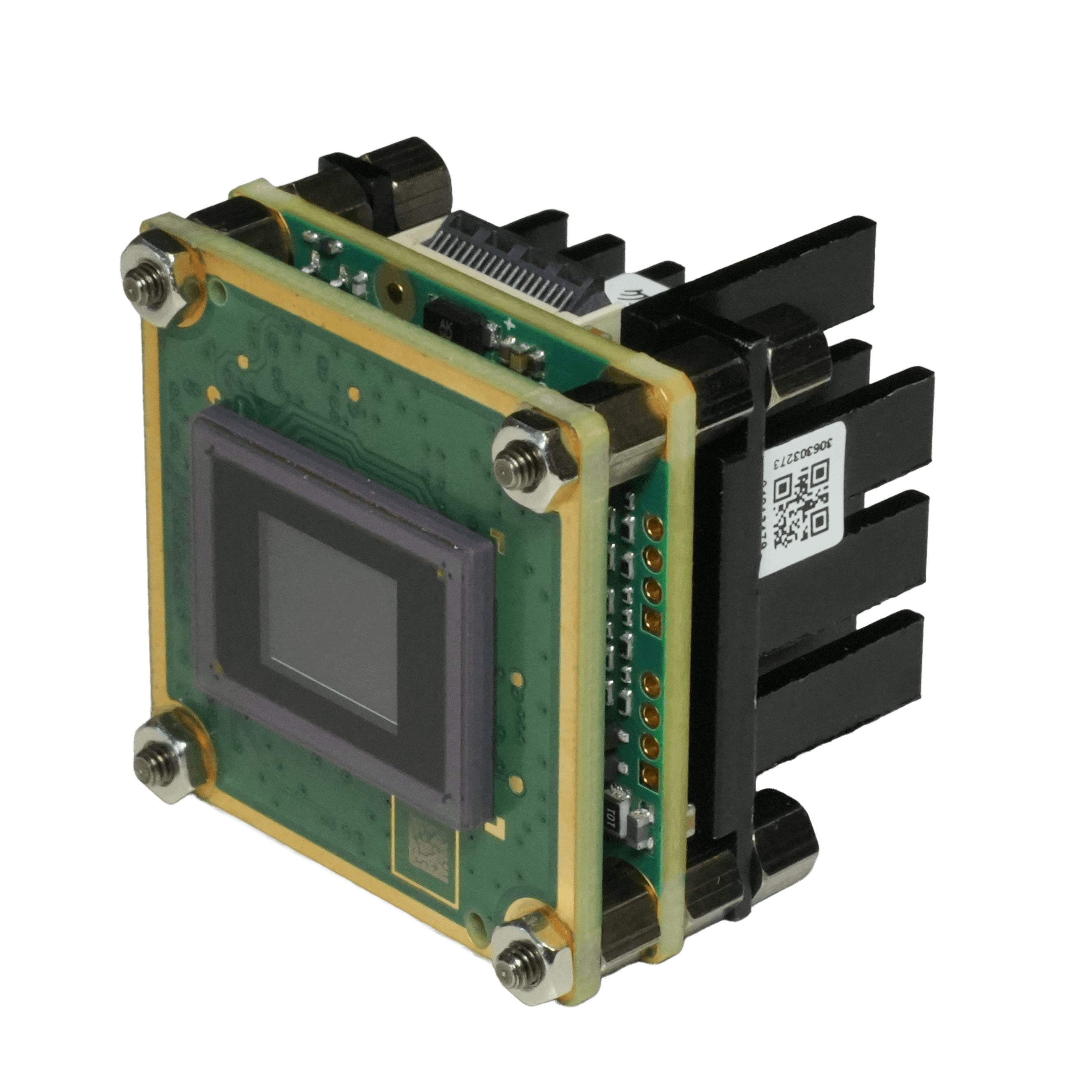

2MP Board Level Camera, USB3.0, FPC, Mono, bare board
2–5 MP USB3 Area Scan камери — Global shutter, CMOS
Model
- Product Model
- MV-CB020-61UM-B-F
- Type
- 2MP Board Level Camera, USB3.0, FPC, Mono, bare board
Performance
- Sensor type
- CMOS, global shutter
- Sensor model
- Stacked BSI
- Pixel size
- 4.5 μm × 4.5 μm
- Sensor size
- 1/1.7"
- Размер на сензора (изчислен)от резолюция × стъпка на пиксела
- 7.31 × 5.58 mm
- Диагонал на сензора
- 9.19 mm
- Resolution
- 1624 × 1240
- Max. frame rate
- 99 fps @ 1624 × 1240 Mono 8
- Dynamic range
- 73.9 dB
- SNR
- 42.4 dB
- Gain
- High full well capacity: 0 dB to 12.8 dB High sensitivity: 0 dB to 24 dB
- Exposure time
- High full well capacity: 30 μs to 10 sec High sensitivity: 5 μs to 10 sec
- Exposure mode
- Off/Once/Continuous exposure mode, supports Trigger Width
- Mono/color
- Mono
- Pixel format
- Mono 8/10/10Packed/12/12Packed
- Binning
- Supports 1 × 1, 2 × 2, 4 × 4
- Decimation
- Supports 1 × 1, 2 × 2, 4 × 4
- Reverse image
- Supports horizontal and vertical reverse image output
Electrical feature
- Data interface
- USB 3.0, compatible with USB 2.0
- Digital I/O
- Bi-directional non-isolated I/O × 2 (Line 2, Line 5)
- Power supply
- 5 V, USB 3.0 power supply
- Power consumption
- Typ. 1.5 W @ 5 VDC (USB power supply)
Mechanical
- Lens mount
- none
- Dimension
- 29 mm × 29 mm × 27.6 mm (1.1" × 1.1" × 1.1")
- Weight
- Approx. 37 g (0.08 lb.)
- Temperature
- Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
- Humidity
- 20% RH to 80% RH (no condensation)
General
- Client software
- MVS or third-party software with USB3 Vision Protocol
- Operating system
- 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
- Compatibility
- USB3 Vision, GenICam
- Certification
- KC, CE, RoHS
Фърмуер
Избор на обектив
Избор на обектив
Търся
Фокусно разстояние
21.9 mm
Мащаб: 0.073×
Резолюция на пиксел
0.0408 mm/px
Най-малък откриваем детайл: 0.123 mm
Формулата важи за конвенционални (ентоцентрични) обективи и приема, че работното разстояние е много по-голямо от фокусното. Не важи за телецентрични обективи. Не отчита дълбочина на рязкост и дисторсия.
