Power & I/O Кабели и аксесоари — 10 m
Model
- Product Model

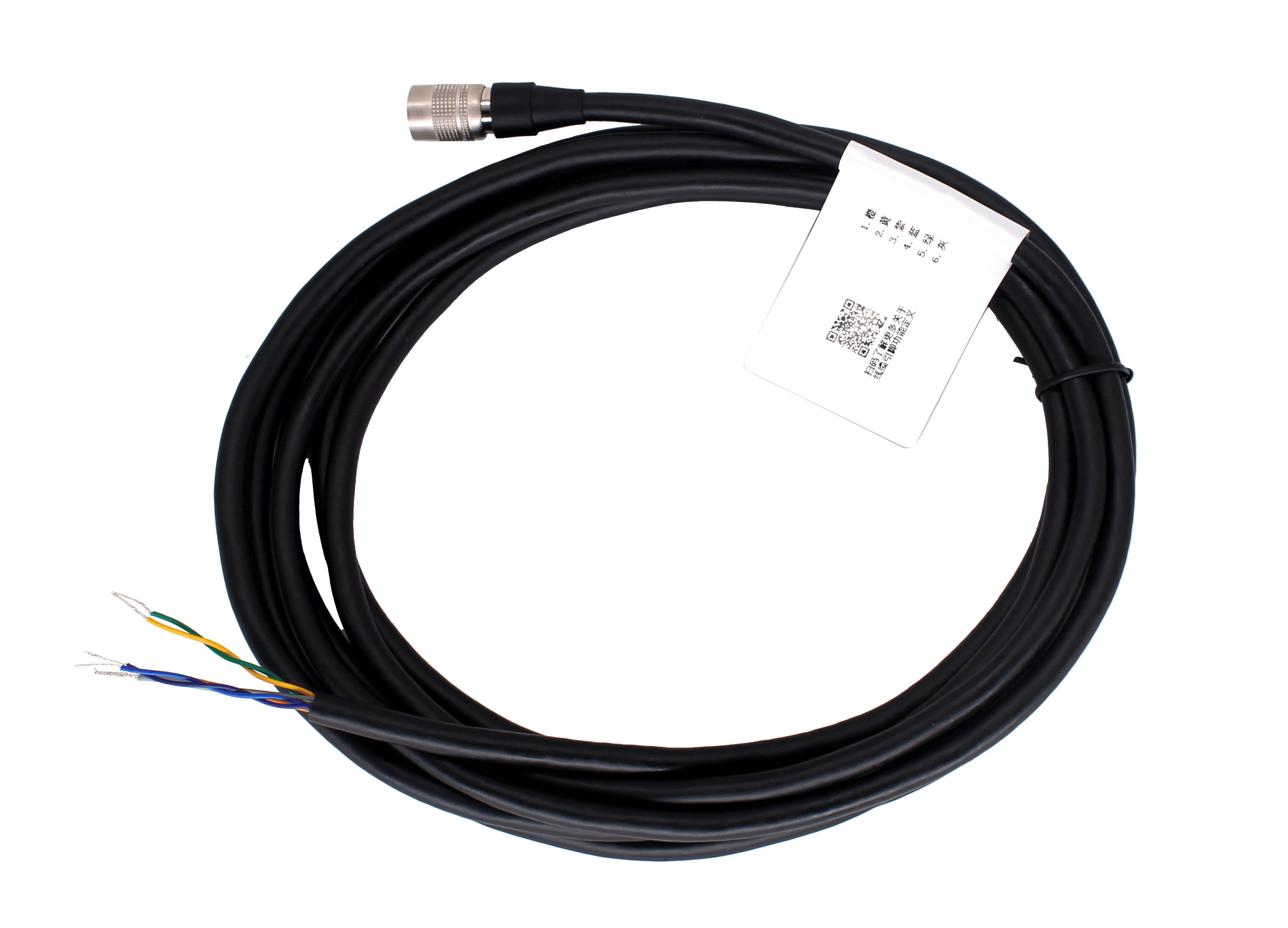

- MV-ACP-H6p-open-SF-10m
- Type
- MV-ACP-H6p-open-SF-10m
Physical specification
- End A connector
- P7 6-pin,Femal,Black insulator,Solder type
- End B connector
- Open
- Cable diameter
- 5.5 mm
- Length
- 10m
- Cable mechanical
- 2P*28AWG+2C*23AWG+AB
- Jacket
- PVC
- Cable color
- Black
- Connector model
- made in China
- Connector durability
- ≥ 750 cycles
- Min. bending radius
- 66 mm
- Applicable scenario
- Tank chain,Robot arm
- Max. U-type bending cycles
- ≥ 10 million times
- Max. ±90° bending cycles
- ≥ 3 million times
- Max. ±180° torsional cycles
- ≥ 5 million times
Electrical specification
- Max. voltage
- 30 VDC
Additional information
- Working temperature
- -20°C~80°C
- Certification
- RoHS2.0
- Packaging
- Individual package
