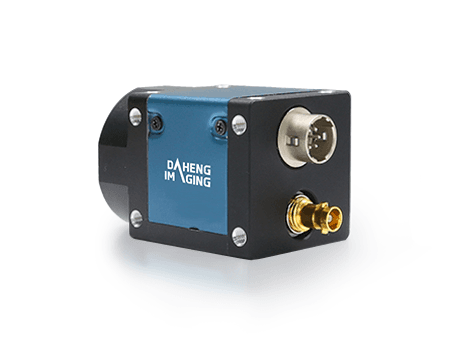

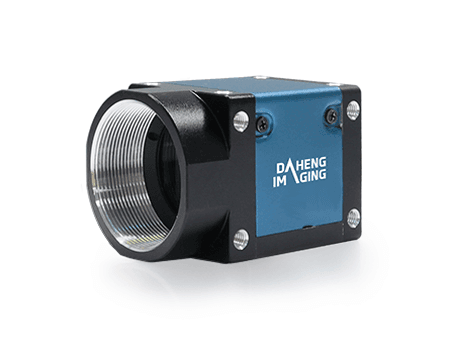

MER3-800-86X2C

Specifications

Model

MER3-800-86X2C

Product Families

MERCURY3

Resolution

2840×2840

Frame Rate (fps)

86.76

Sensor Manufacturer

Sony

Sensor

2/3" IMX546 Global shutter CMOS

Pixel Size

2.74μm

Размер на сензора (изчислен)от резолюция × стъпка на пиксела

7.78 × 7.78 mm

Диагонал на сензора

11 mm

Pixel Bit Depth

8 bit, 10 bit, 12 bit

Data Interface

CoaXPress

Lens Mount

C

Spectrum

Color

Pixel Formats

Bayer RG8, Bayer RG10, Bayer RG12

Signal Noise Ratio

Bayer RG8: 39.914 dB, Bayer RG10: 39.948 dB, Bayer RG12: 40.082 dB

Exposure Time

UltraShort: 1μs ~ 2.4μs, Standard: 3μs ~ 1s

Gain

AnalogALL: 0dB~24dB

Decimation

Sensor: 1×1, 2×2

Reverse X/Y

Reverse X/Y

I/O Interface

1 input with opto-isolated, 2 programmable GPIOs

Power Requirement

Power over CoaXPress

Power Consumption

3.235 W @ PoCXP

Operating Temp.

0°C ~ +45°C

Storage Temp.

-20°C ~ +70°C

Operating Humidity

10% ~ 80%

Dimensions (W×H×L)

29 mm × 29 mm × 34 mm

Weight

60 g

Conformity

CE, RoHS, FCC, ICES, UKCA, CoaXPress2.0, GenICam
