CoaXPress Кабели и аксесоари — 10 m, Tank chain
Model
- Product Model
- MV-ACXP6-DIN-BNC-HF-10m
- Type

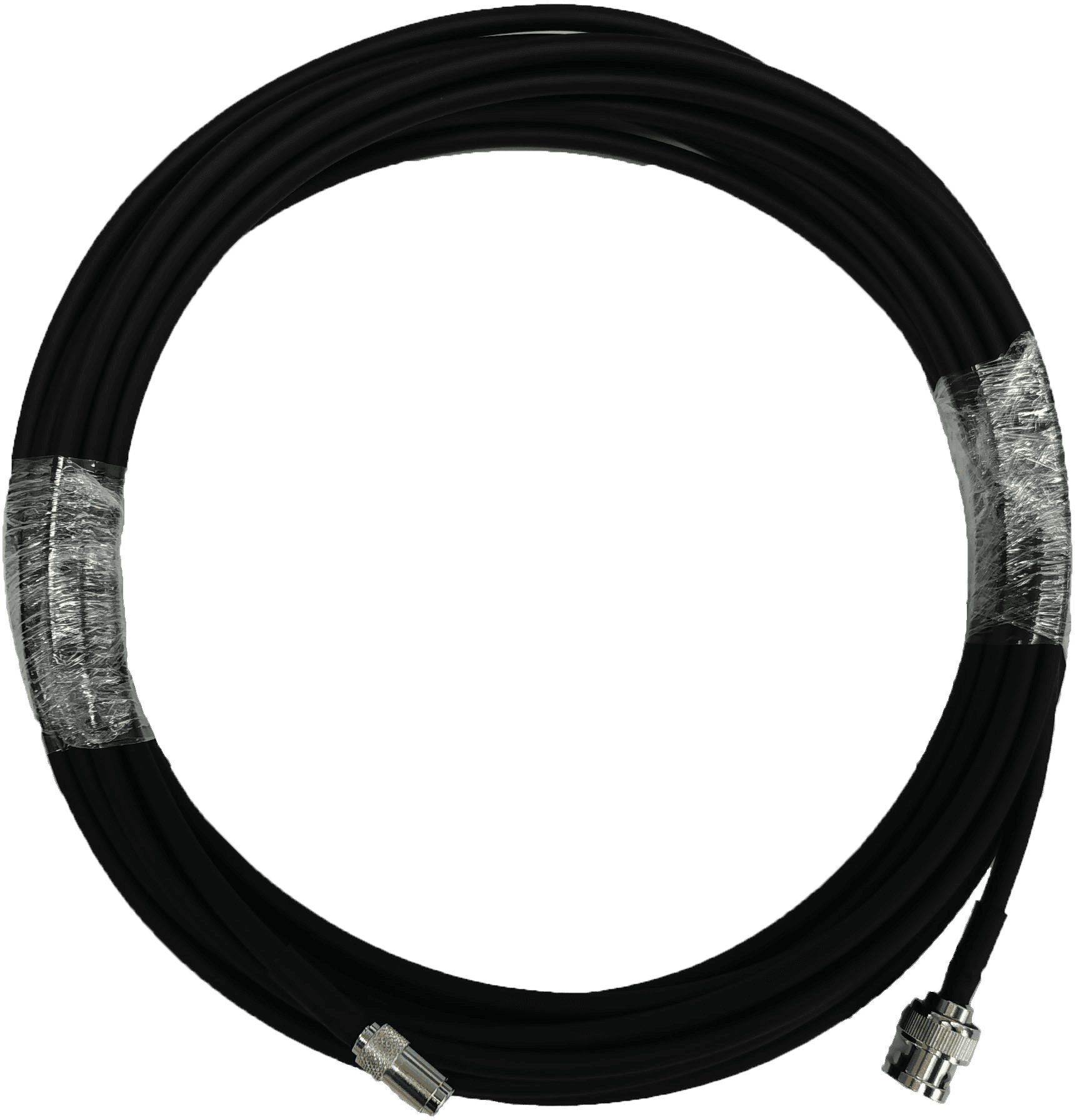

- High-flex CXP-6 cable(Din-BNC), 10m
Physical specification
- End A connector
- DIN 1.0/2.3
- End B connector
- BNC
- Cable diameter
- 5 mm
- Length
- 10 m
- Cable mechanical
- Coaxial
- Jacket
- PVC
- Cable color
- Black
- Connector durability
- 500 cycles
- Min. bending radius
- 60 mm
- Applicable scenario
- Tank chain
- Max. U-type bending cycles
- 2 million times
Electrical specification
- Max. voltage
- 300 VDC
Additional information
- Working temperature
- -30°C-80°C
- Certification
- RoHS,UL
- Packaging
- Individual package
